One Article to Understand ONVIF and the Extreme ONVIF Function of the Full-Featured IPC X600 Tester

ONVIF Standard: In security camera installation or maintenance projects, network cameras and NVRs from different brands often use different protocols. Debugging a single camera may require searching for proprietary protocols and repeatedly logging into different clients to modify IP addresses, set channel names, etc., which is inefficient and inconvenient. Yian Electronics' full_featured IPC X600 tester, with its "Extreme ONVIF" function, builds on the standard ONVIF protocol through intelligent and automated designs, integrating tedious manual debugging steps into onekey functions. Let's see how this tester replaces traditional monitoring debugging processes.

What is the ONVIF Universal Protocol?

ONVIF (Open Network Video Interface Forum) is a global open industry standard that allows network security devices from different brands to automatically discover IP addresses, interconnect, and work together. If devices support the ONVIF standard, they can be integrated into the same system to achieve basic video preview, recording storage, PTZ control, and more. The core capabilities of ONVIF include:

• Device Discovery: ONVIFsupported cameras, when connected to a network, automatically "broadcast" their presence so that clients can discover them without manual IP entry.

• Real-time Video Streaming: Transmit H.264/H.265 encoded video via RTSP protocol; any ONVIF-compliant player can decode and display the video.

• PTZ Control: Unified commands to control pan, tilt, zoom, preset positions, etc., of PTZ cameras.

• Events and Alarms: Standardized transmission of alarm information such as motion detection, signal loss, etc.

• Configuration and Management: Supports remote modification of IP addresses, image parameters, channel names, and more.

ONVIF uses different "Profiles" to define the set of functions supported by a device, making it easy for users to quickly identify device capabilities. These include Profiles S, T, M, and G. Profile S provides basic video streaming and PTZ control. The mainstream profile is Profile T, which supports H.265/H.264, high-definition video streaming, basic control capabilities, and other modern features.

The Tester's ONVIF Super Toolbox

Yian Electronics has the security testing equipment field for many years. Their multi-functional testers (such as the IPC X600 series) integrate over 60 practical functions, including the Extreme ONVIF module. This module includes ONVIF with PTZ control and supports multiple brands such as ACTi, Dahua, Hikvision, Uniview, Tiandy, and more. Extreme ONVIF automatically logs in, plays images, modifies parameters like IP and channel names, and generates test reports. Detailed usage scenarios include:

1. Automatic Login and Image Playback

In the traditional way, to view the image of an unknown camera, you first need to use an IP scanner to find the device, then manually enter the password into a browser or client. If the password is wrong or there's an IP conflict, the process can be very time-consuming.

The Extreme ONVIF function of the IPC X600 integrates a full-network-segment IP blind scanning technology. After powering on, the tester automatically searches for all ONVIF-supported cameras on the network, automatically matches the correct username and password (supports saved credentials), and then directly displays the video image – no manual login required. From detection to image display, it usually takes only a few seconds.

2. Batch Modification of IP and Channel Names

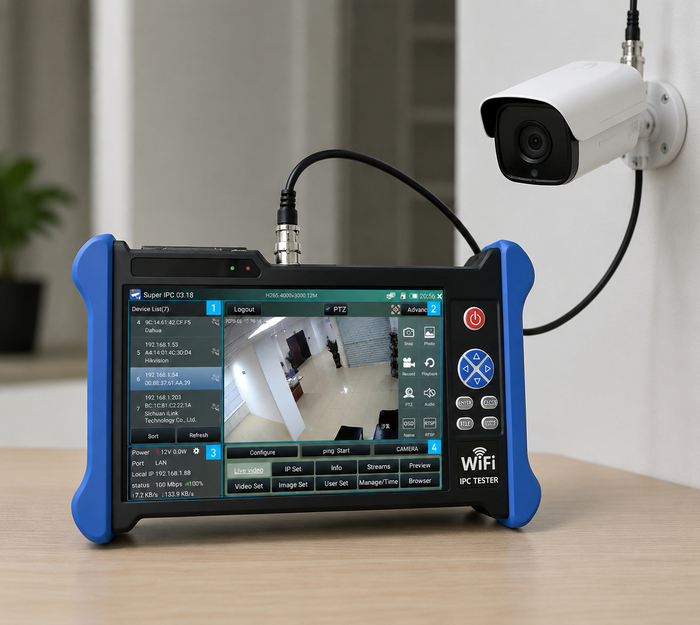

When debugging cameras in batches, logging into each camera's web interface to modify IP addresses and OSD channel names is a huge workload and prone to errors. The Extreme ONVIF in the IPC X600 supports batch operations:

• One-key batch IP modification: Simultaneously change the network parameters of multiple cameras according to preset rules.

• Batch channel name modification: Supports multi-line text, updating the OSD display name for all selected devices at once.

• Batch activation: For devices that require activation (such as Hikvision and Dahua), the tester has built-in specialized tools to directly complete password setting and activation in batches.

3. PTZ Control and Parameter Settings

Through the ONVIF standard, the tester can control any PTZ-supported camera. Below the preview screen, you can use functions like pan/tilt direction, zoom, focus, and preset position. Meanwhile, video settings (encoding format, resolution, frame rate), image settings (brightness, contrast, backlight compensation), password modification, maintenance and time synchronization can all be done through the tester's unified interface.

4. Full-Network-Segment Automatic IP Blind Scanning

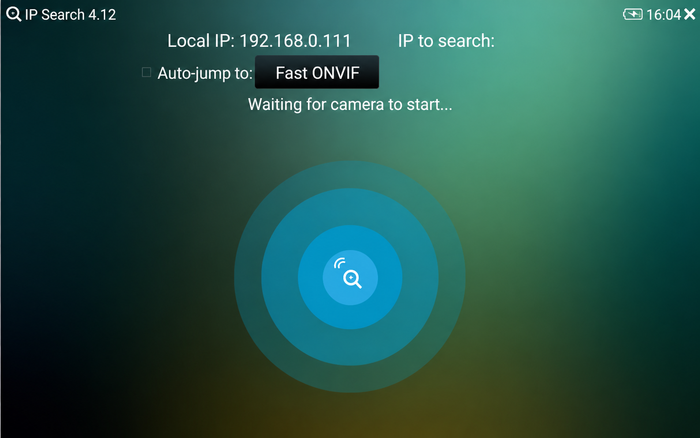

The full-network-segment automatic IP blind scanning function means that when the tester connects to an unfamiliar network, it automatically scans all valid IP segments , quickly locating the IP addresses of all online cameras. It then automatically switches the tester's own IP address to the target segment and directly jumps to the Extreme ONVIF preview interface.

Comprehensive Compatibility with Various Surveillance Protocols

As a professional tester, it not only includes ONVIF functionality but also provides in-depth customization for mainstream domestic brands with proprietary protocol direct connection tools:

• Hikvision Testing Tool: One-key activation, batch modification of IP/channel names, password reset (supports mobile phone retrieval), image testing.

• Dahua Testing Tool: Batch activation, modification of IP and channel names, supports password reset via reserved mobile phone number.

• HD-over-Coax Testing: Automatically recognizes AHD/CVI/TVI 8MP signals, supports on-screen display (OSD) menu control.

• Analog CVBS Testing: BNC input, PAL/NTSC formats, supports image zoom, recording, and snapshot.

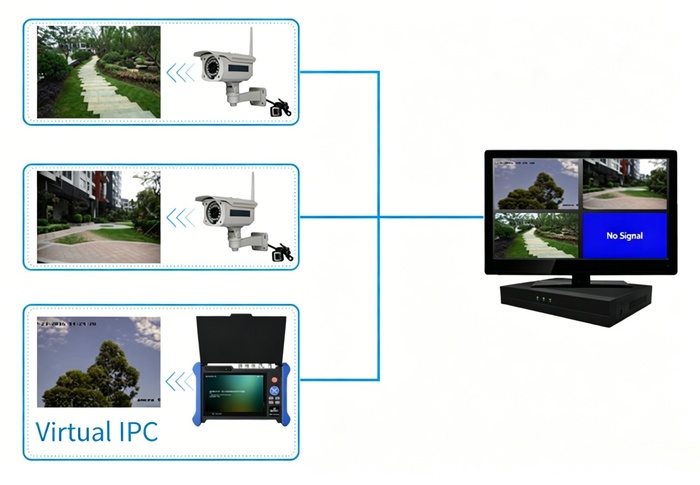

In addition, it supports a Virtual IPC function –simulating an ONVIF camera to send a video stream, used to quickly test whether NVR channels are connecting properly.

Workflow Using the IPC X600 Extreme ONVIF

1. Connect the tester to the switch, click "IP Detection" – within 30 seconds, all online devices are found.

2. Enter the "Extreme ONVIF" interface, select all Hikvision devices, click "Batch Activation", set a unified password; then click "Batch Modify IP" to automatically assign addresses according to rack numbers.

3. Repeat similar operations for Dahua and Uniview devices, completing them in batches.

4. Preview each camera's image one by one, use the focus assist function (real-time focus value curve display) to quickly adjust the lens, and at the same time set preset positions through the PTZ panel.

5. Finally, generate a complete test report (including device list, IP assignment, screenshots).

Who Is It For?

This tester is suitable for security contractors, low-voltage integrators, surveillance maintenance personnel, etc. It significantly reduces debugging difficulty, shortens construction schedules, and increases project profit margins. In today's IP-based and intelligent surveillance world, choosing a full-featured tester with Extreme ONVIF means choosing competitiveness.

Yeearm Electronics has its own R&D and manufacturing factory, ensuring quality. For inquiries, please contact us.
