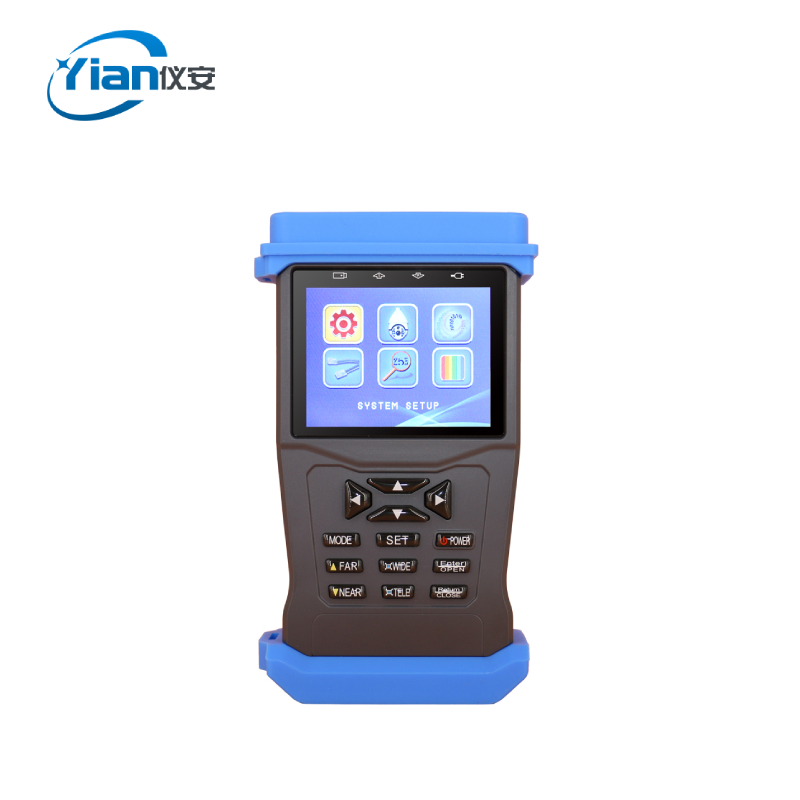

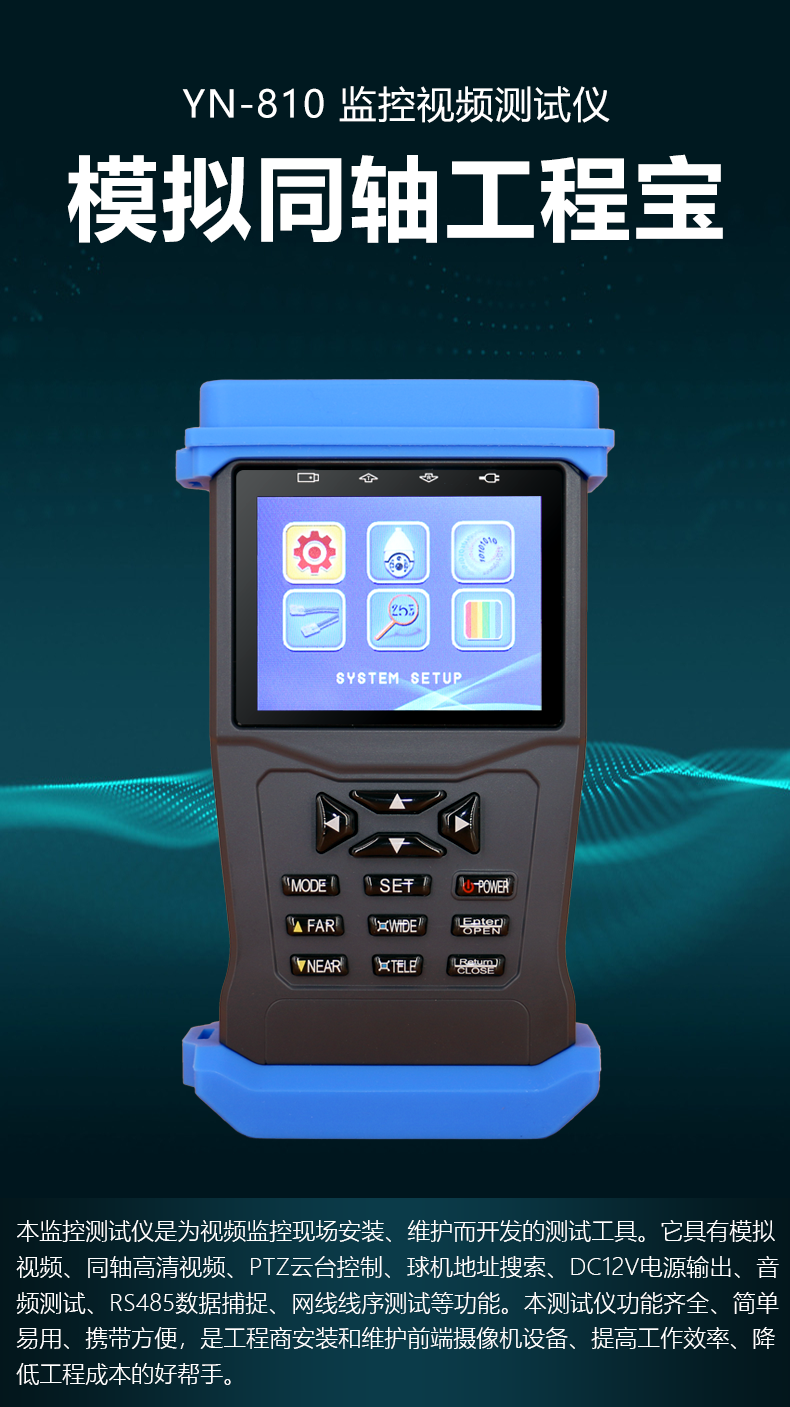

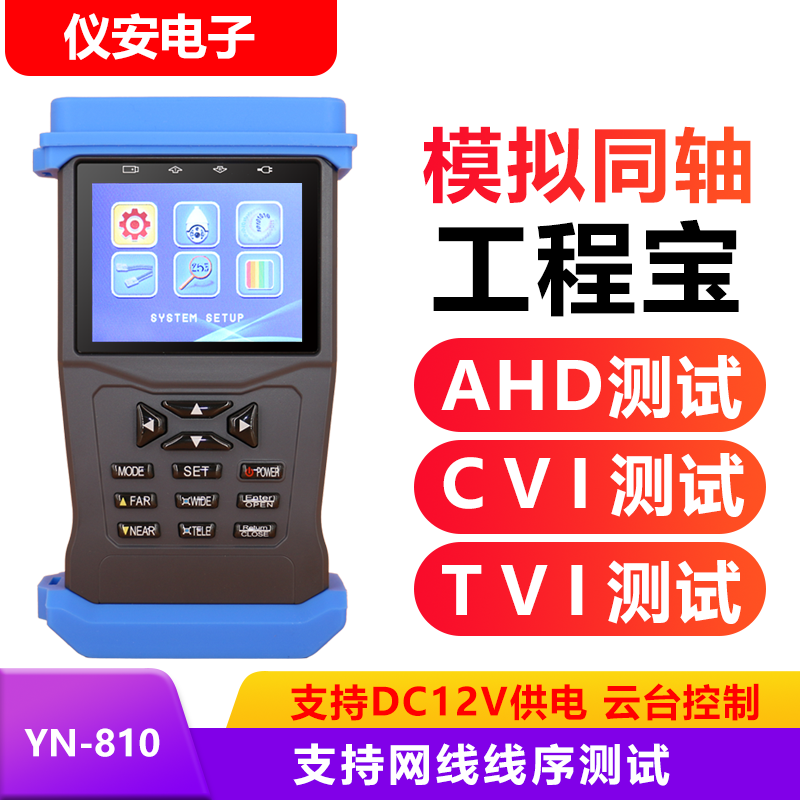

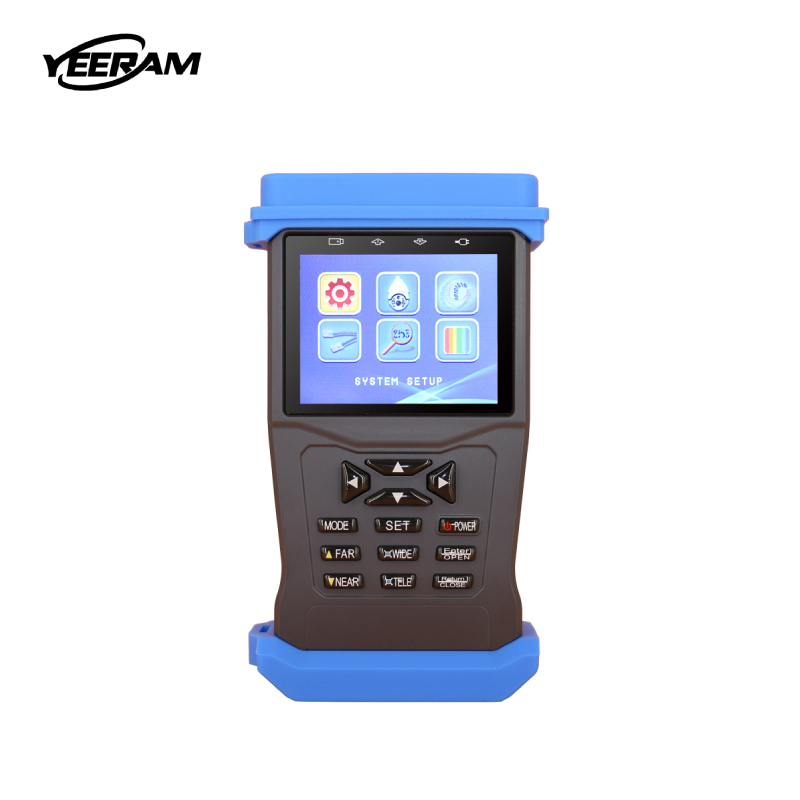

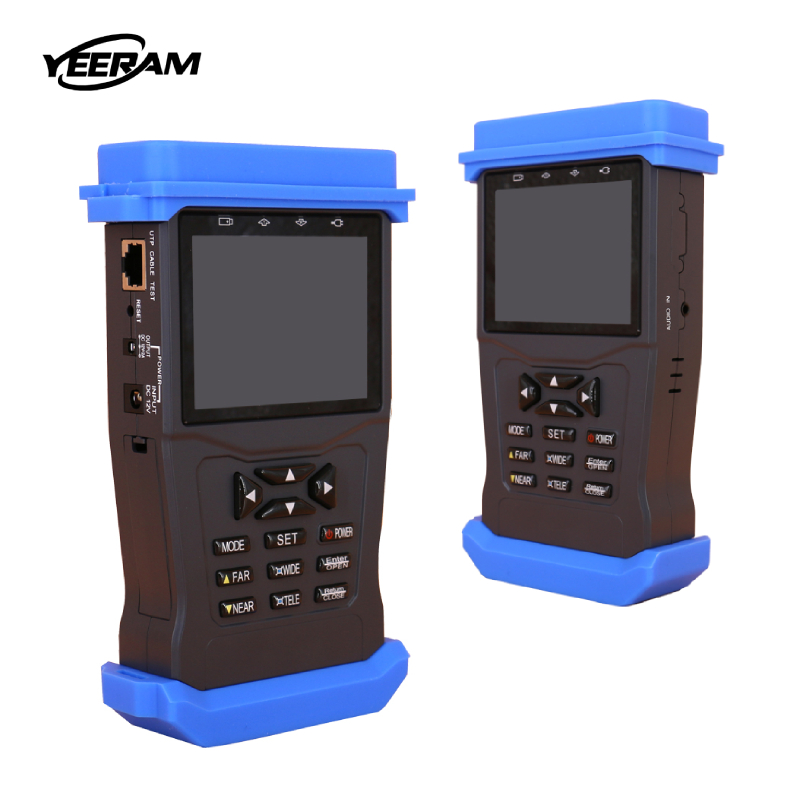

3.5-Inch PTZ Control, Cable Testing, DC12V Output Coaxial HD Analog Tester
Feature:

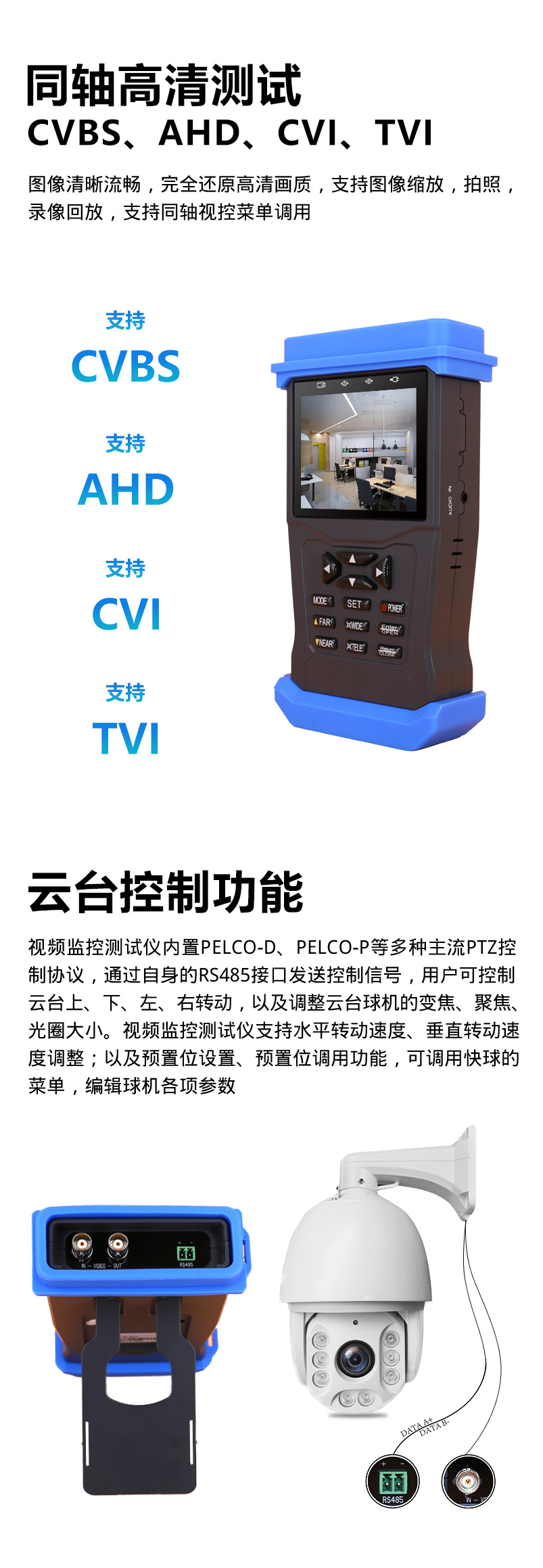

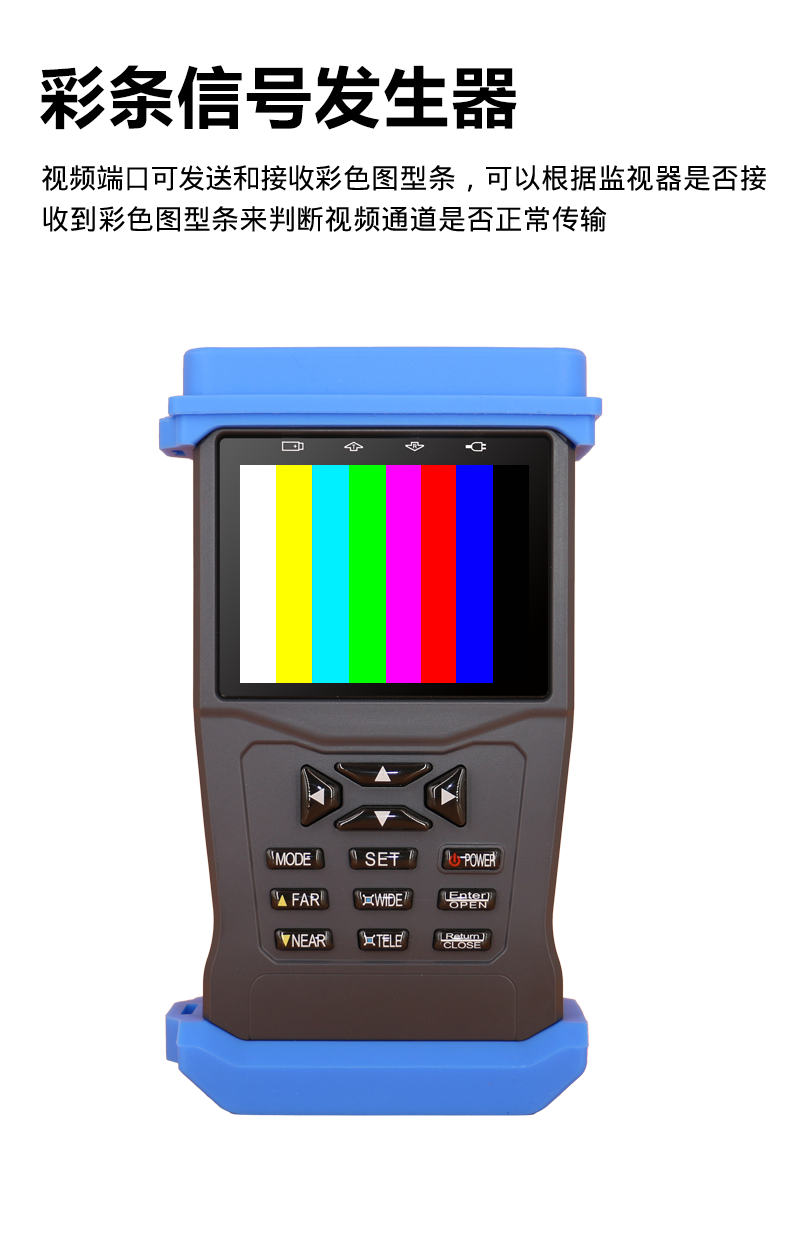

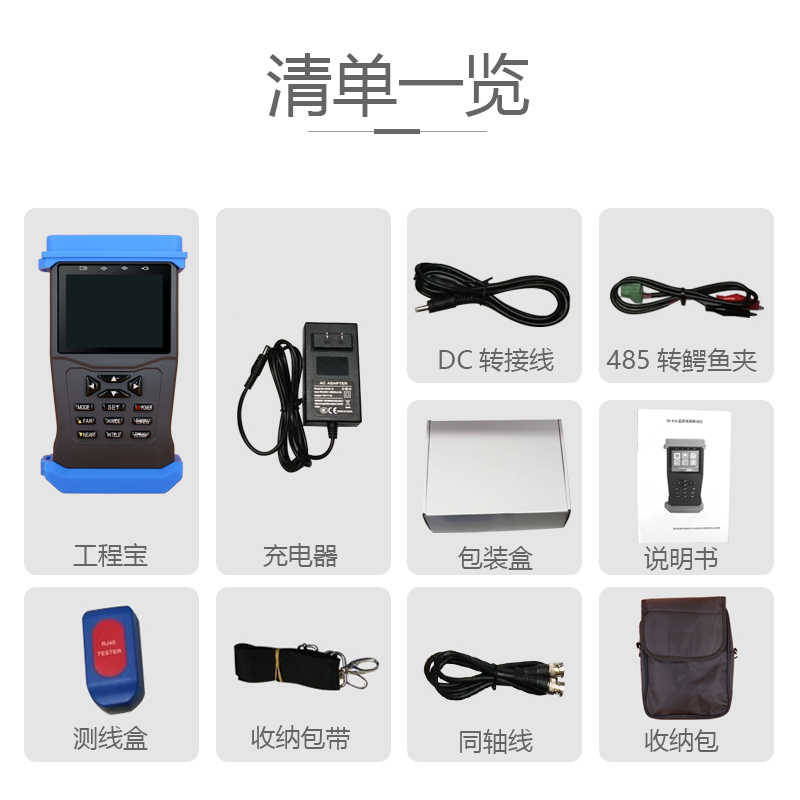

● Supports CVBS, AHD, CVI, and TVI video signal input with clear and smooth image; allows photo capture, video recording, playback, zoom, and coaxial menu control. ● Built-in PTZ protocols (PELCO-D, PELCO-P, etc.) and RS485 interface for pan, tilt, zoom, focus, iris, preset management, and dome menu access. ● IP address scanning function quickly finds the communication address of PTZ cameras. ● Provides DC12V/2A output ● Network cable sequence testing displays wiring order and continuity for fast fault diagnosis. ● Color bar generator outputs color patterns to verify video channel transmission. ● Compact and portable design: 3.5-inch LCD (960×240 resolution), 2000mAh battery, dimensions 105×44×188mm, includes carrying pouch and test accessories.

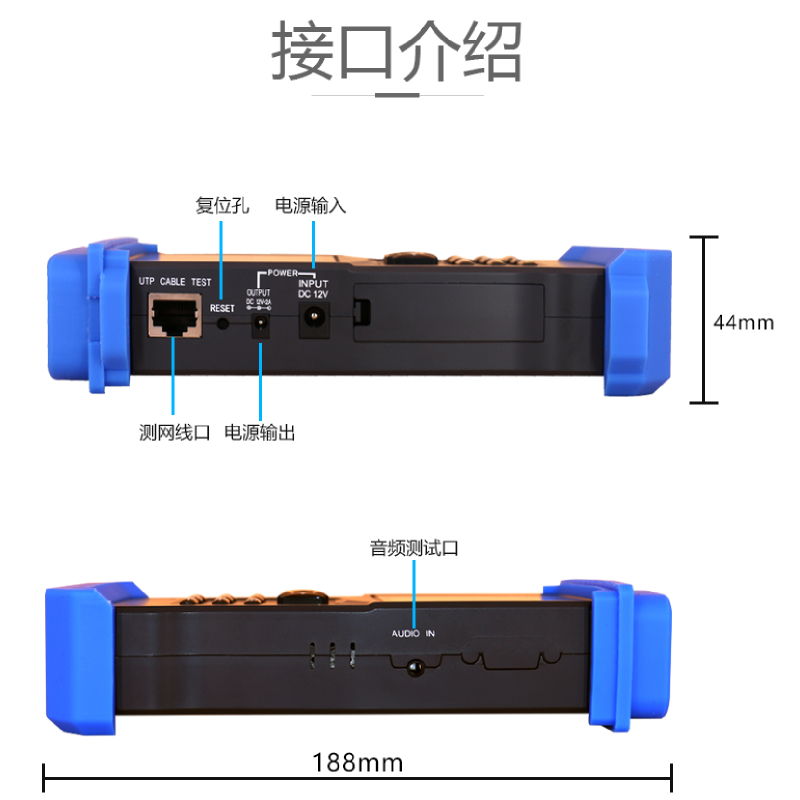

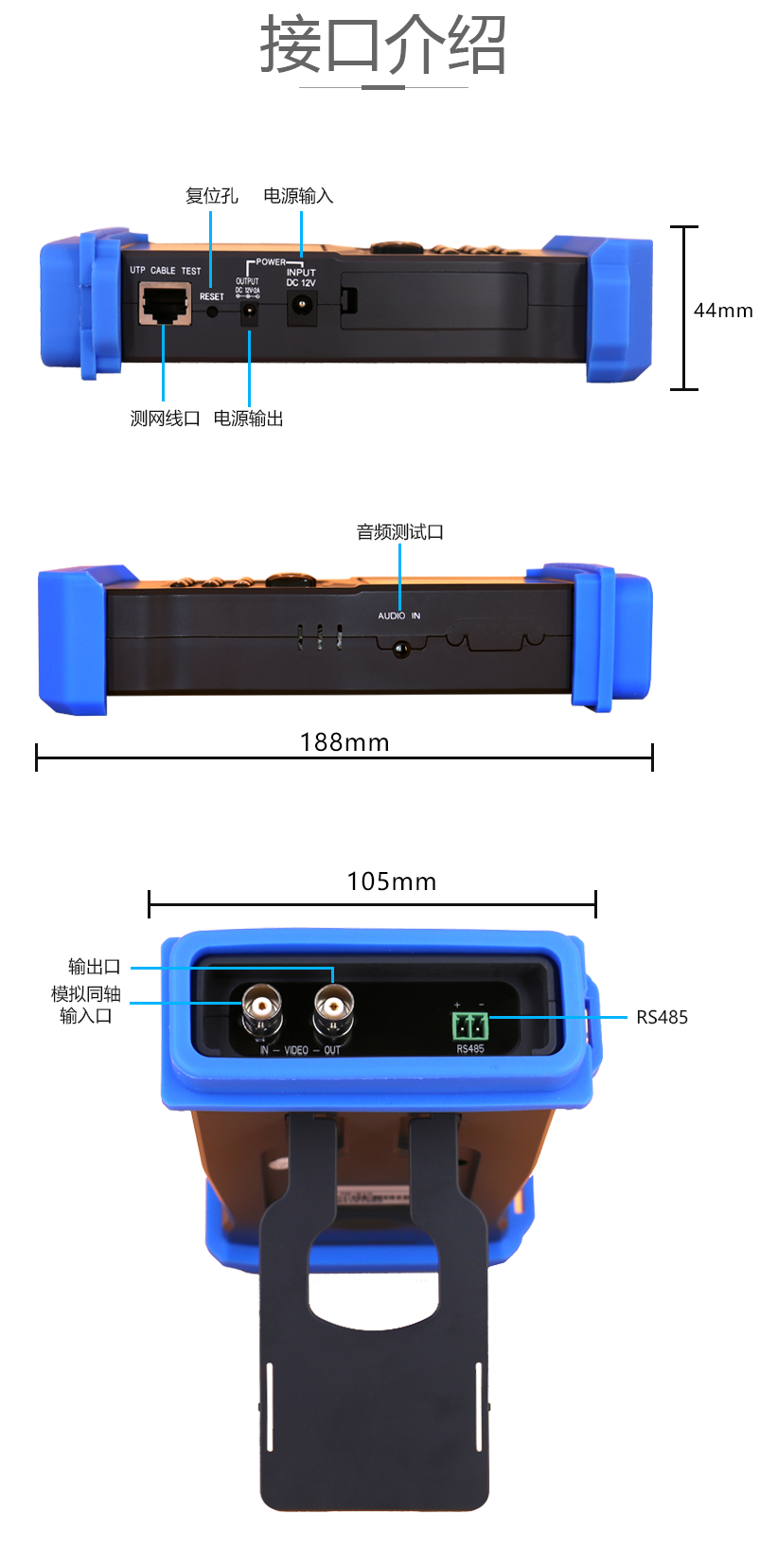

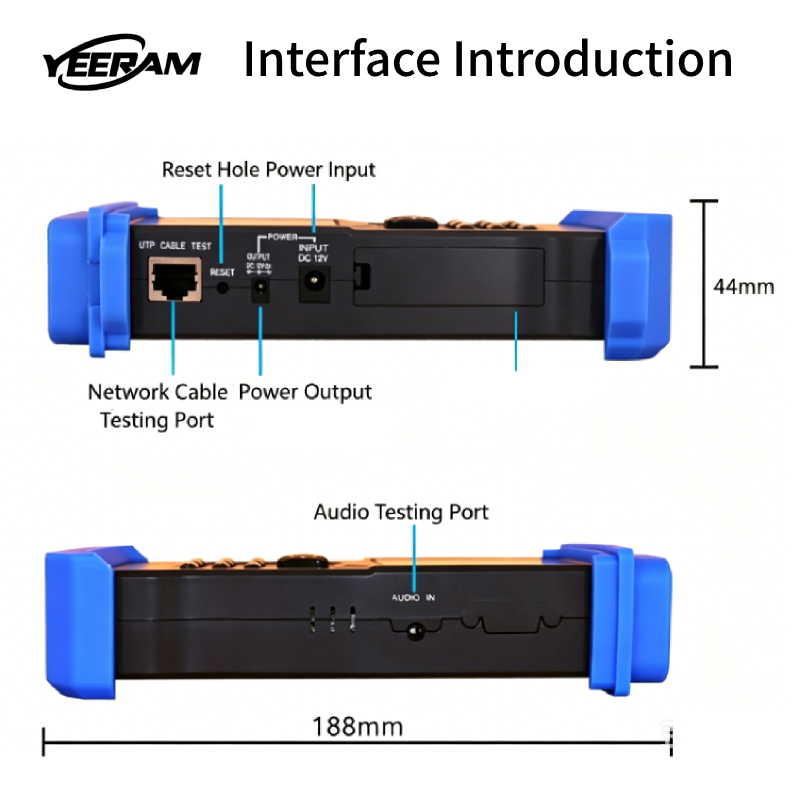

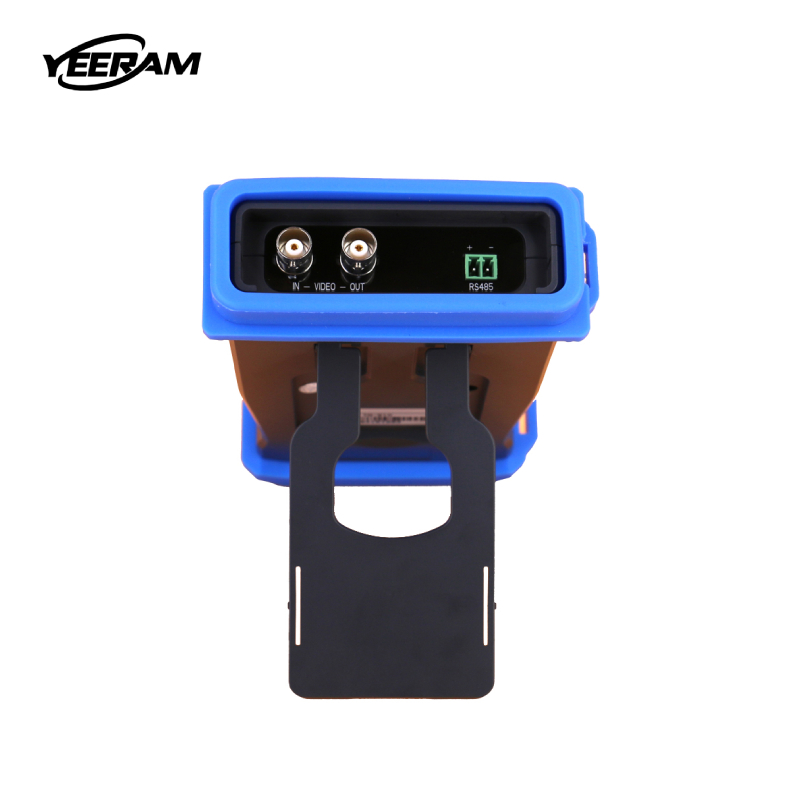

interface:
RJ45

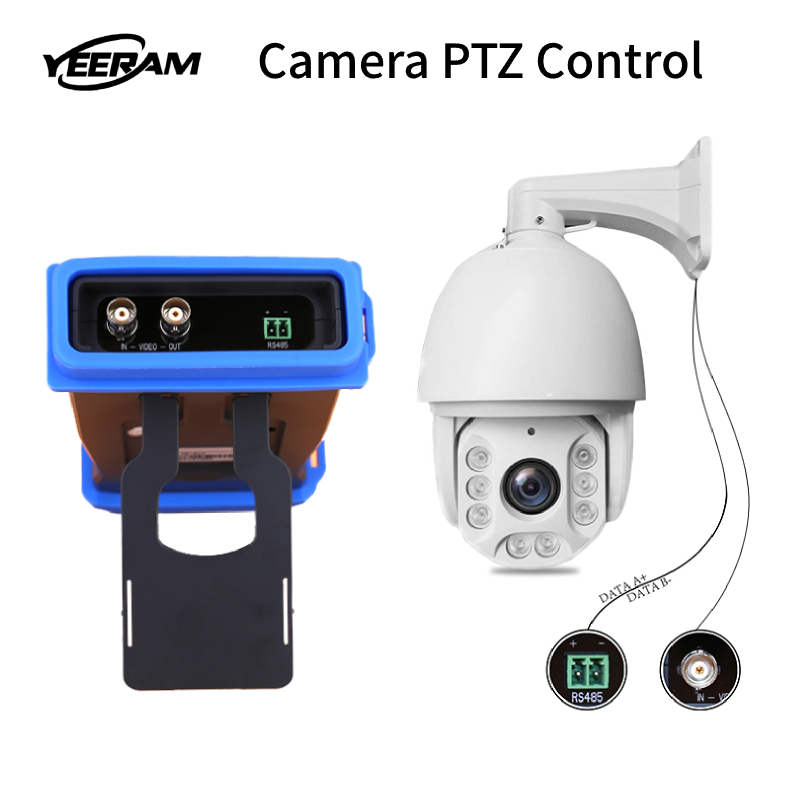

RS485 Interface
DC Output
HD Analog Input and Output
Power Input
Audio
Product Attributes
Brand
YEEARM
Origin
Own factory is located in Guangzhou,
Guangdong Province, China
MOQ
1

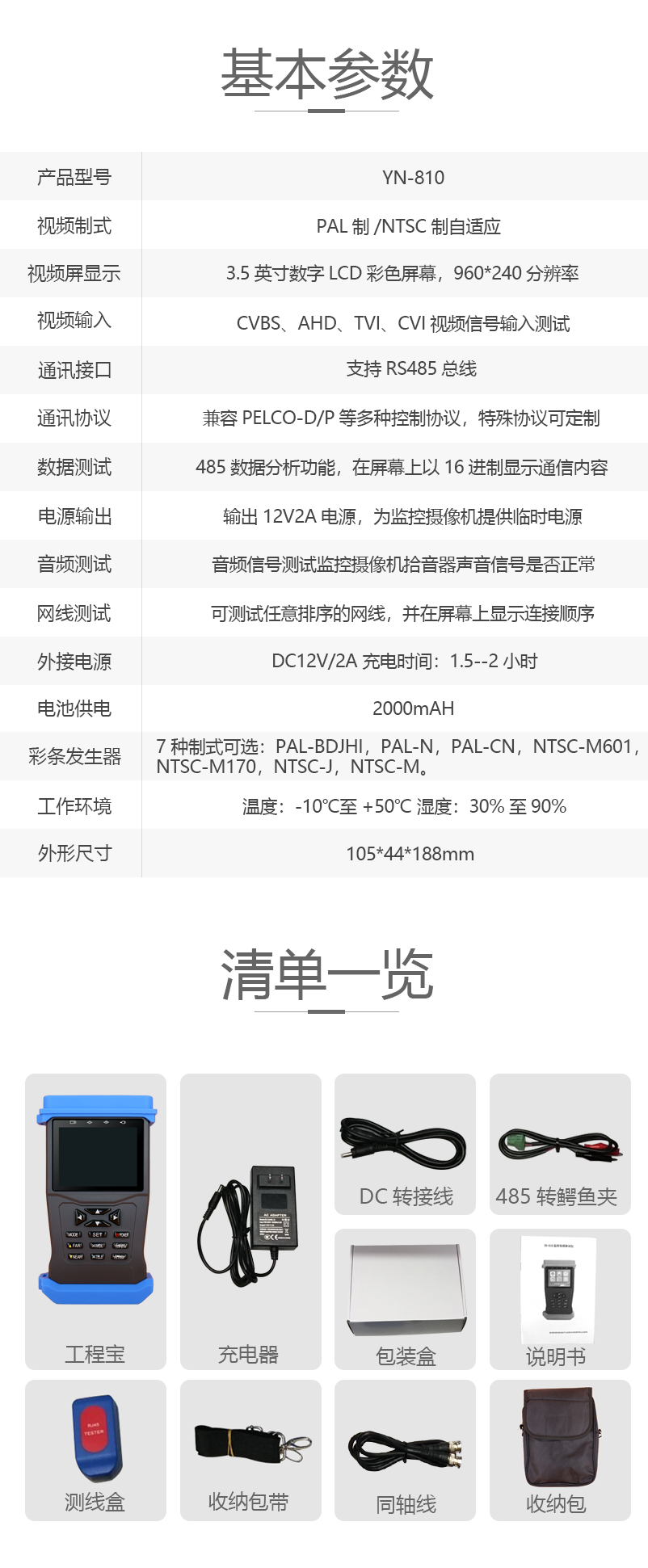

Technical Specifications
Parameter
Details
Product Model
YN-810
Video Standard
PAL / NTSC auto-adaptive
Video Display
3.5-inch digital LCD color screen, resolution 960×240
Video Input
CVBS, AHD, TVI, CVI video signal input test
Communication Interface
Supports RS485 bus
Communication Protocol
Compatible with multiple control protocols including PELCO-D/P; custom protocols available
Data Test
RS485 data analysis function, displays communication content in hexadecimal on screen

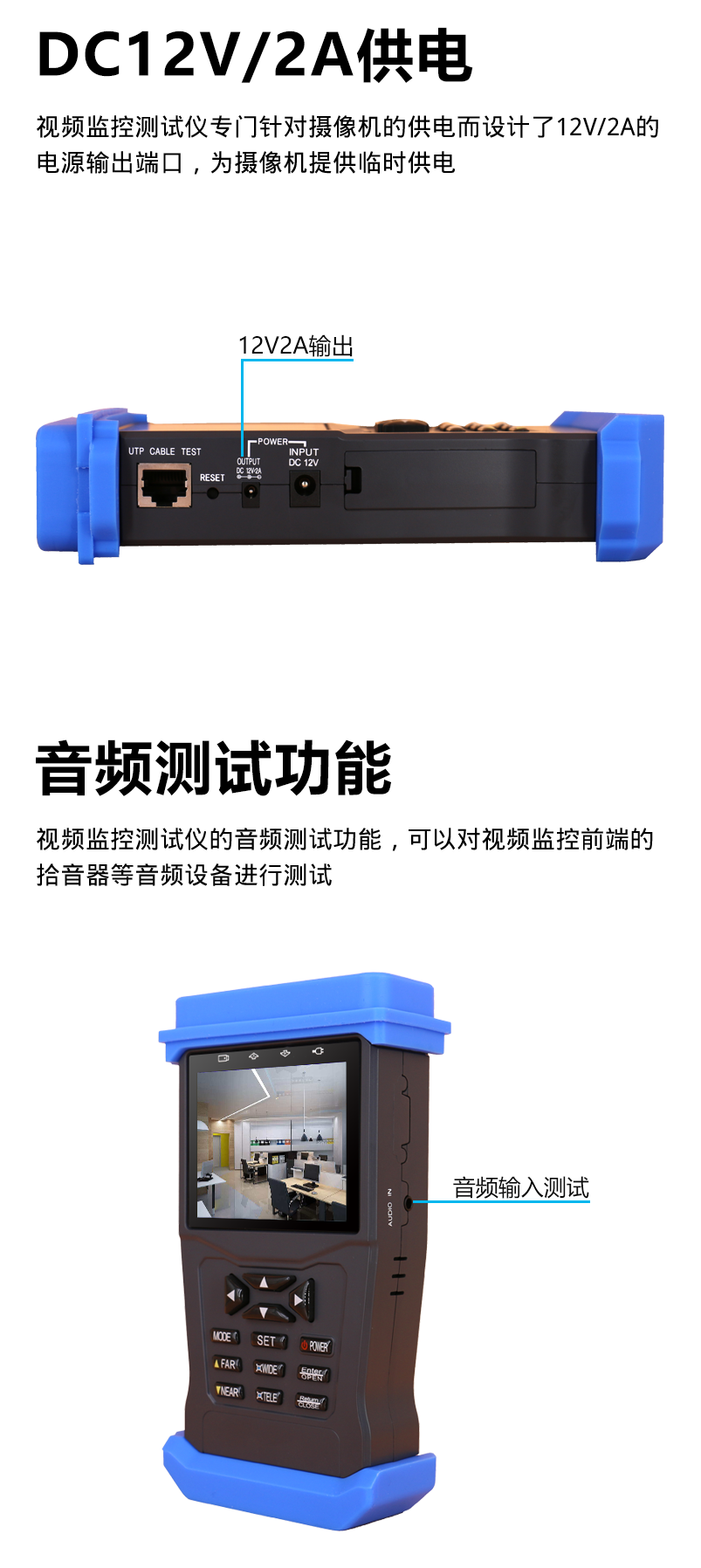

Power Output
12V 2A output, provides temporary power for surveillance cameras
Audio Test
Tests audio signal functionality of surveillance camera pickups

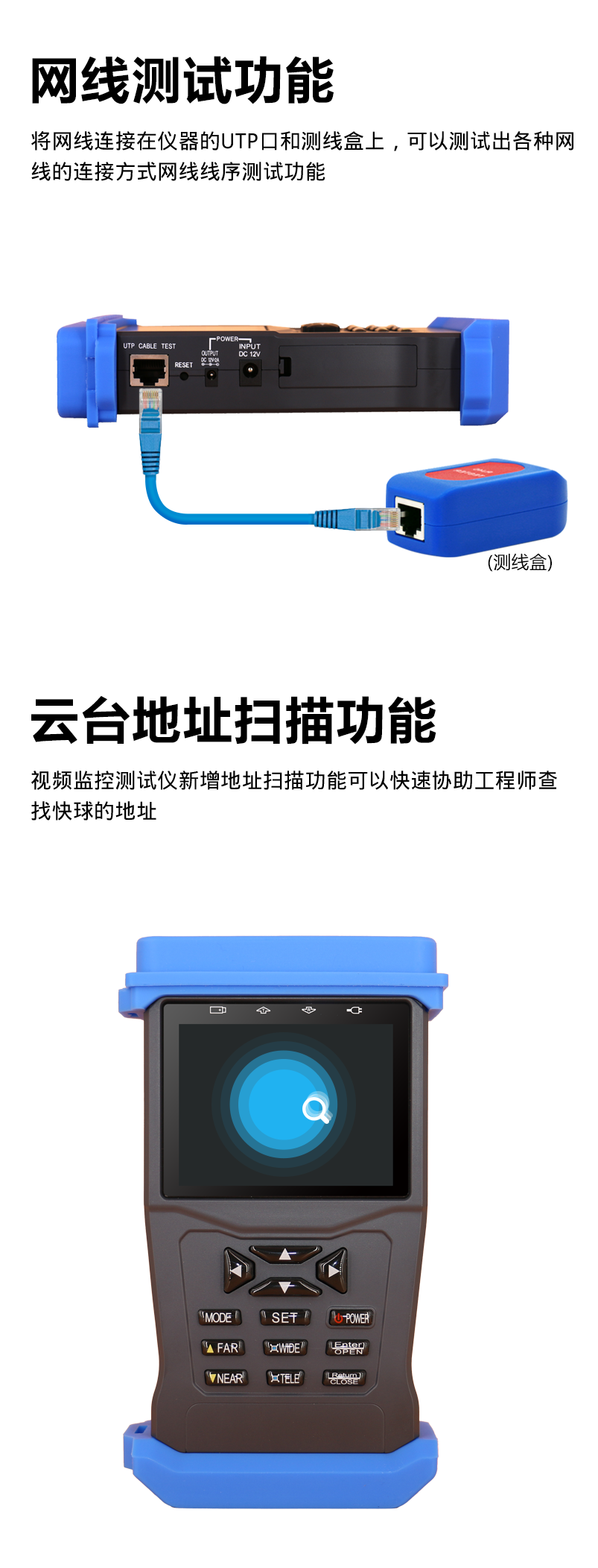

Network Cable Test
Tests network cables of any sequence, displays connection order on screen
