Feature: ● 4K H.265 hardware decoding: supports H.265/H.265+/H.264/MPEG/MJPEG, up to 4K main stream playback for IP cameras. ● Blind scanning for full IP segment: automatically searches all IP addresses, matches the tester’s IP, and displays video with one click. ● 100+ brands custom tools: supports Hikvision, Dahua, Uniview, Samsung, TP-LINK, Mercury, XiongMai, Zhongwei etc. Enables batch activation, batch IP modification, factory reset, browser access, and free private protocol customization. ● ONVIF fast test: quickly scans cameras, auto‑logs in for instant image, remembers last correct username/password, supports main/sub stream switching. ● Analog camera test: 1x CVBS input, auto‑adapts to PAL/NTSC, supports image display, zoom, snapshot, video recording, playback, and provides DC12V/3A power for analog cameras. ● 4-inch IPS HD touchscreen and 3200mAh long‑life battery (Li‑polymer)，6–8 hours of normal use
4K H.265 Main Stream Test, 12V3A Power Supply, Full Net Segment Blind Probe, Coaxial Analog IPC Tester
Feature:
● 4K H.265 hardware decoding: supports H.265/H.265+/H.264/MPEG/MJPEG, up to 4K main stream playback for IP cameras. ● Blind scanning for full IP segment: automatically searches all IP addresses, matches the tester's IP, and displays video with one click. ● 100+ brands custom tools: Enables batch activation, batch IP modification, factory reset, browser access, and free private protocol customization. ● ONVIF fast test: quickly scans cameras, auto‑logs in for instant image, remembers last correct username/password, supports main/sub stream switching. ● Analog camera test: 1x CVBS input, auto‑adapts to PAL/NTSC, supports image display, zoom, snapshot, video recording, playback, and provides DC12V/3A power for analog cameras. ● 4-inch IPS HD touchscreen and 3200mAh long‑life battery (Li‑polymer), 6–8 hours of normal use

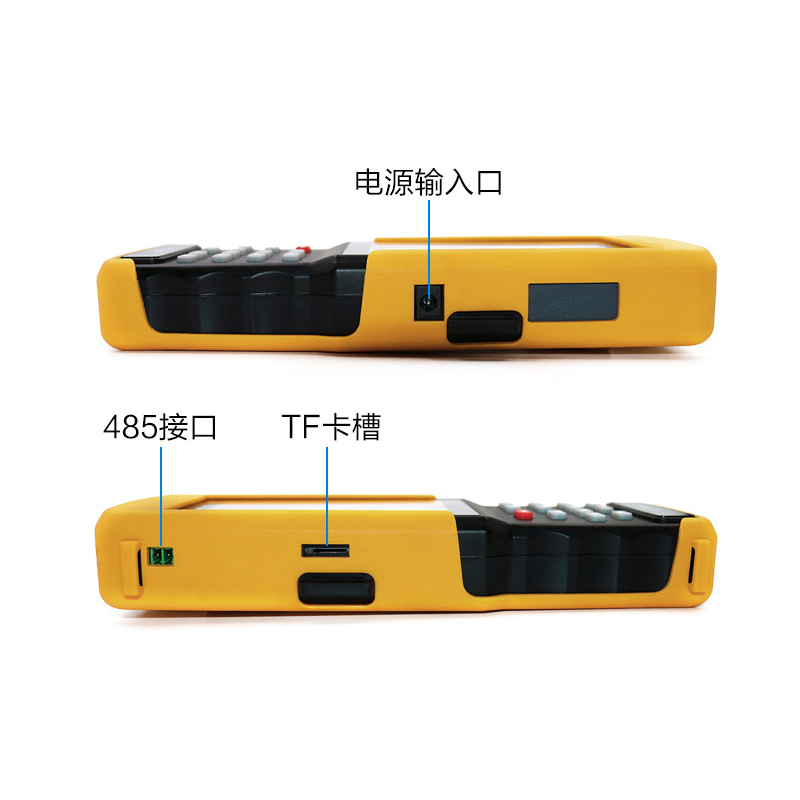

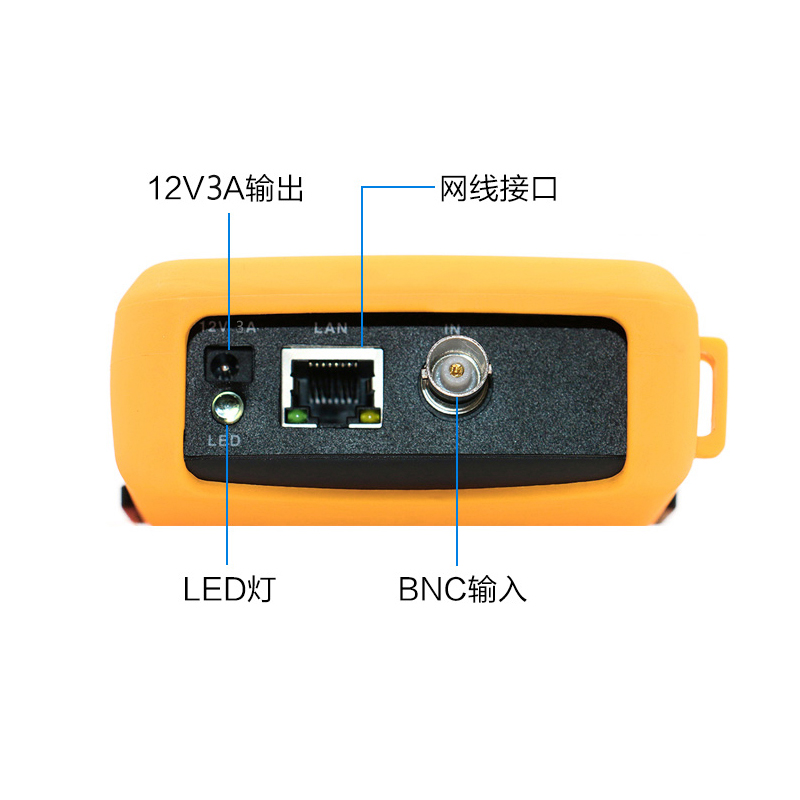

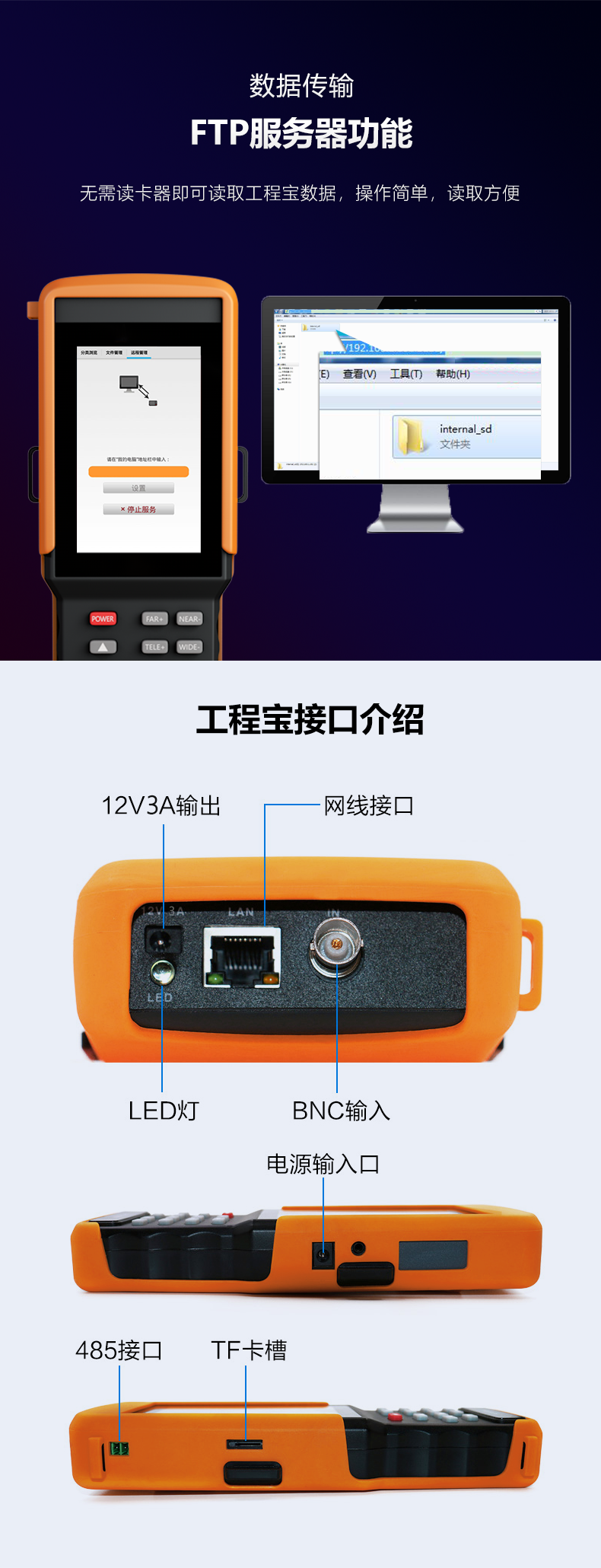

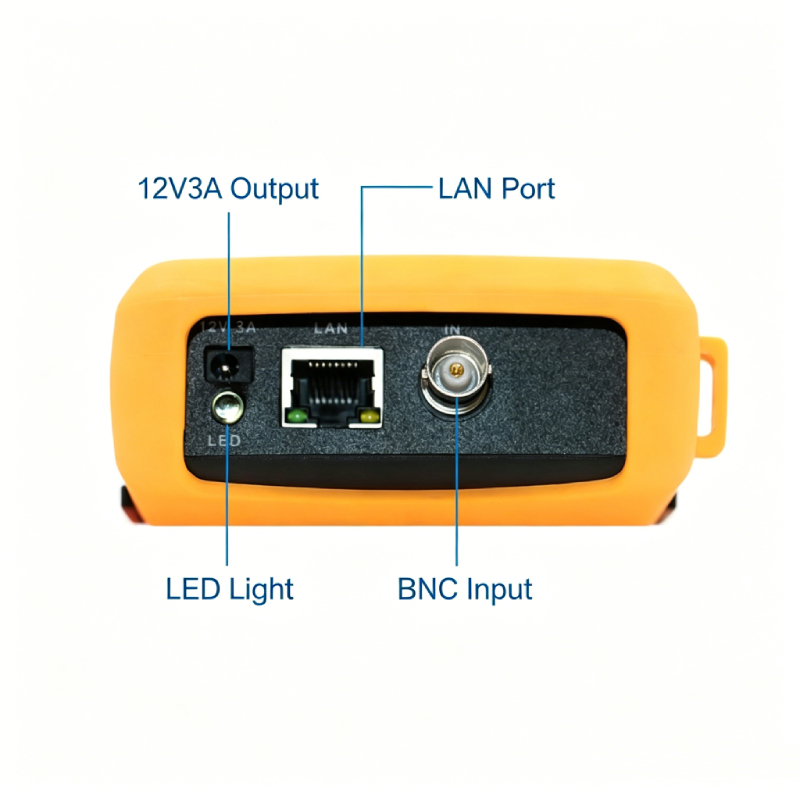

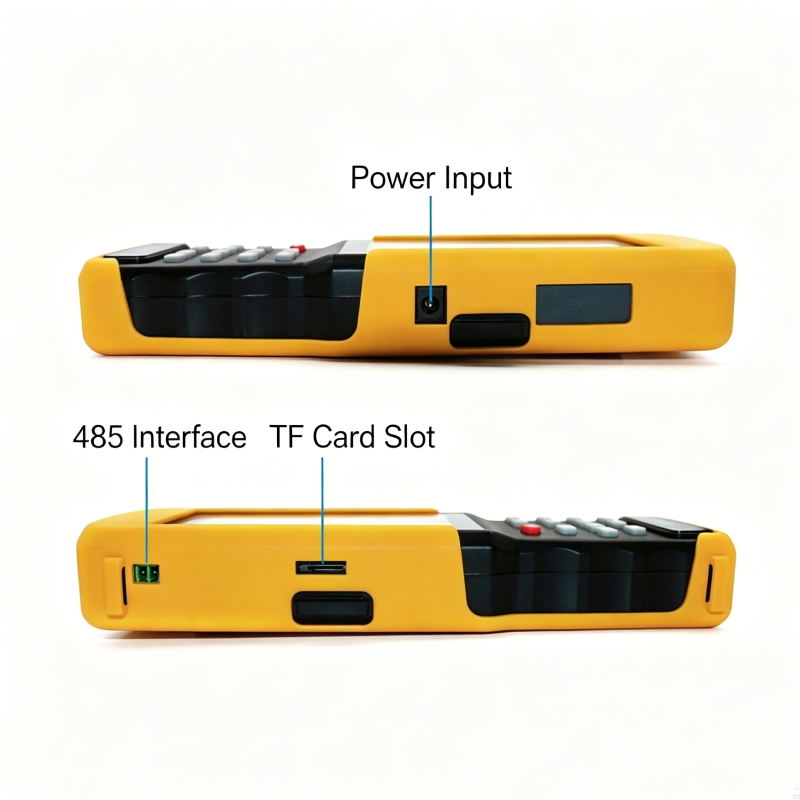

interface:
Power Input
RS485 Interface
BNC Input
LED
Gigabit Ethernet LAN Output
DC12V/3A Output
TF Card Slot
Cable Tracing Interface
Product Attributes
Brand
YEEARM
Origin
Own factory is located in Guangzhou, Guangdong Province, China
MOQ
1

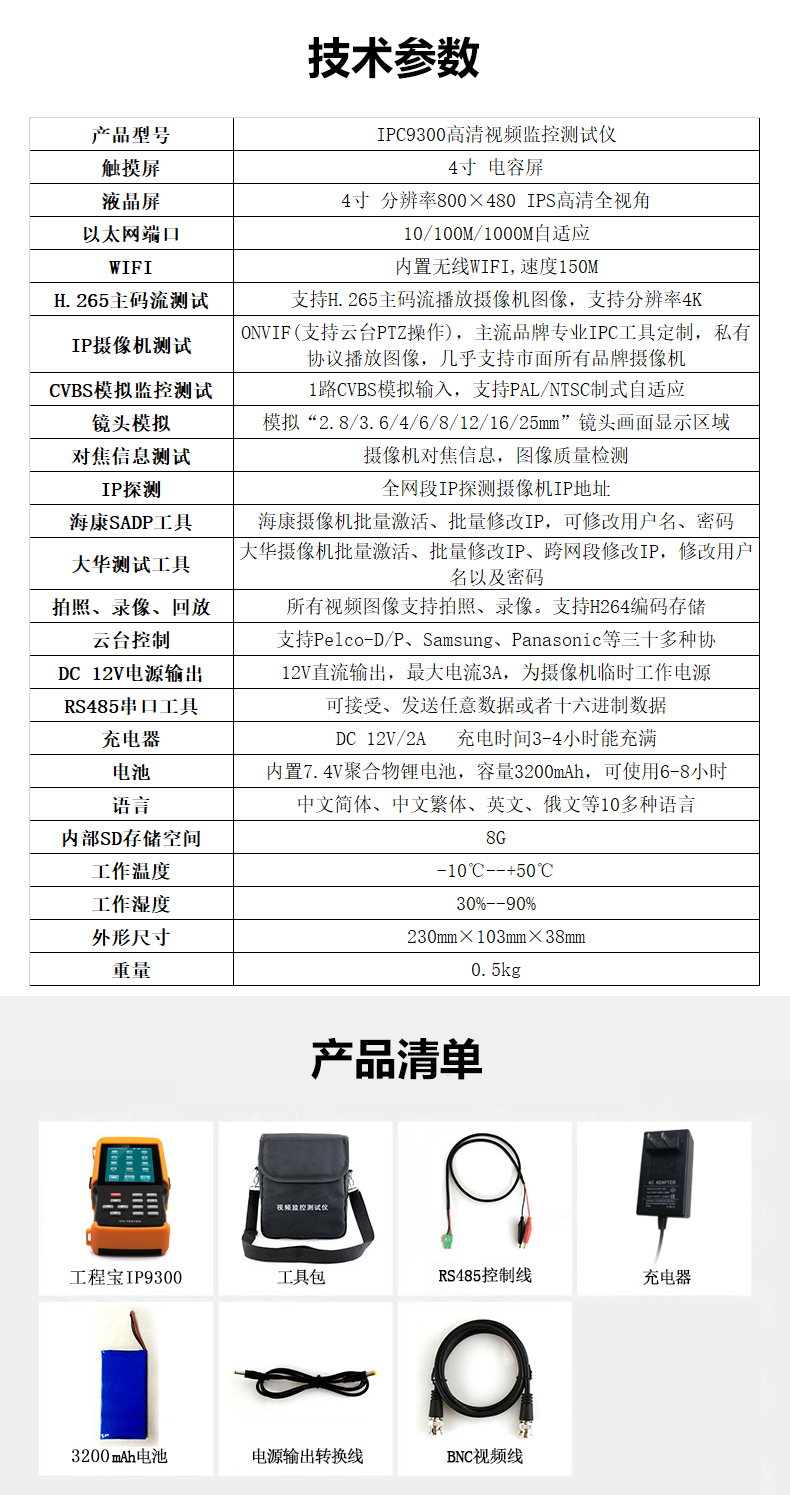

Technical Specifications
Parameter
Details
Product Model

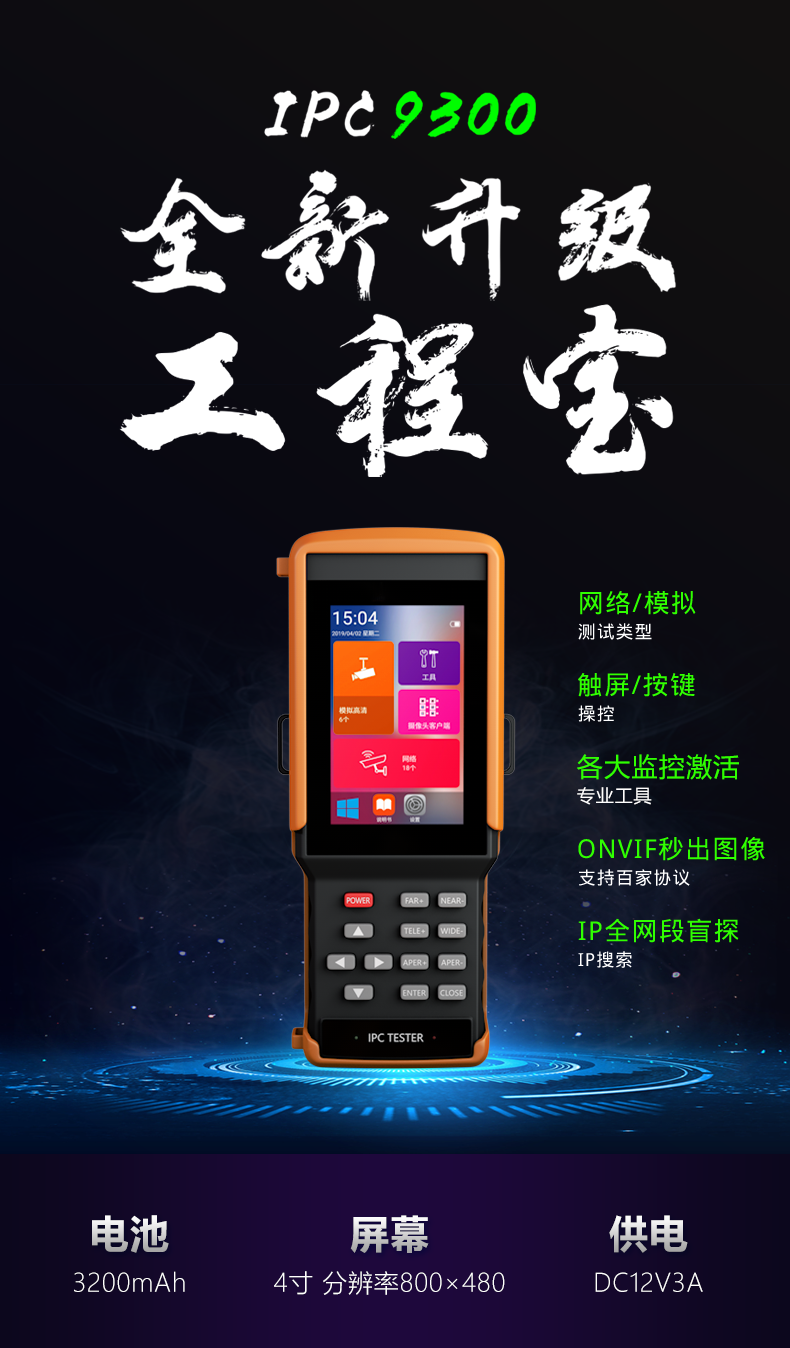

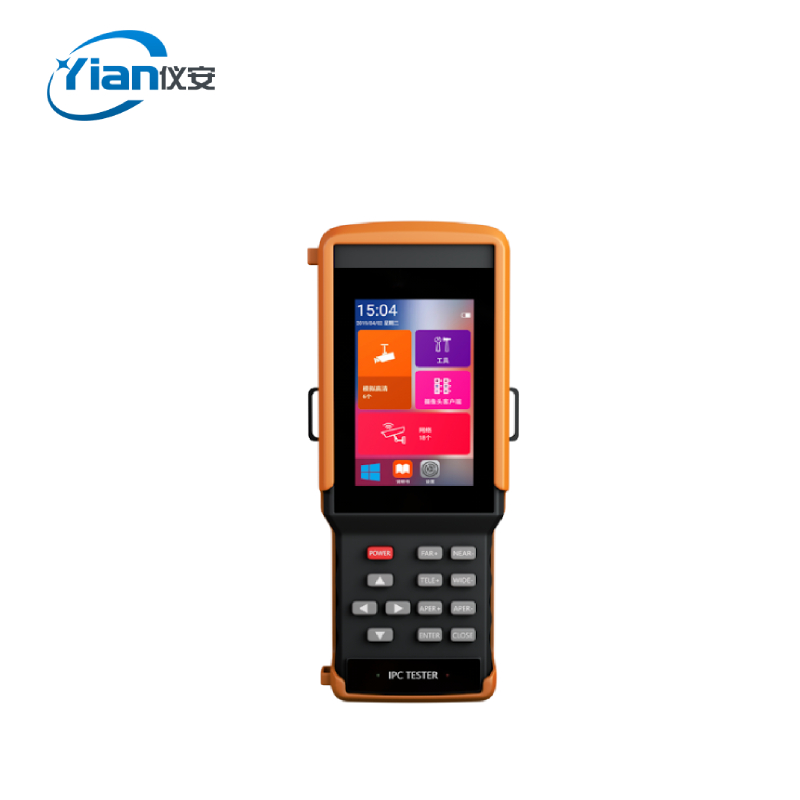

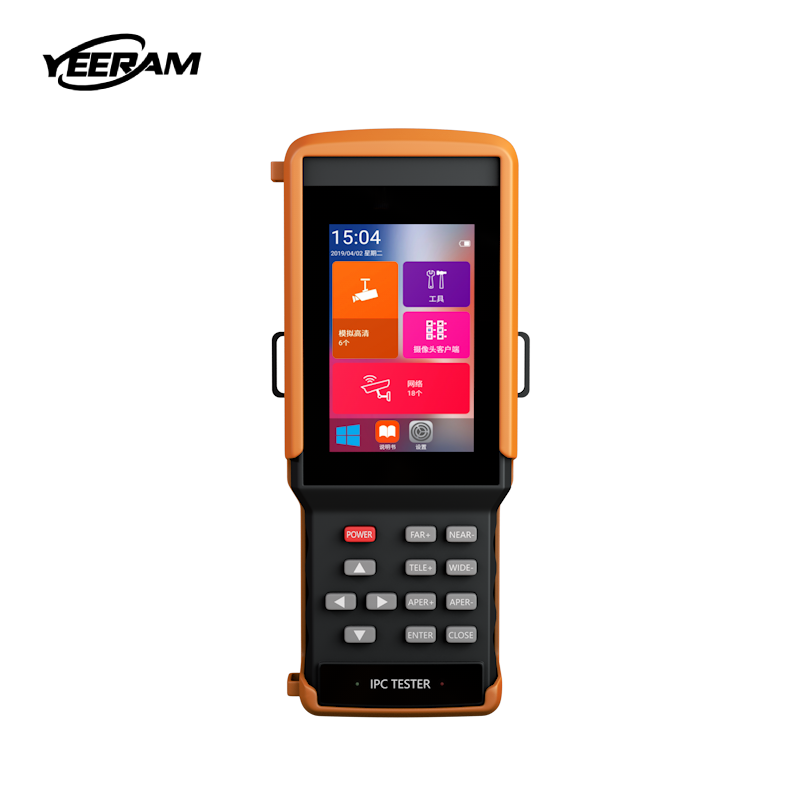

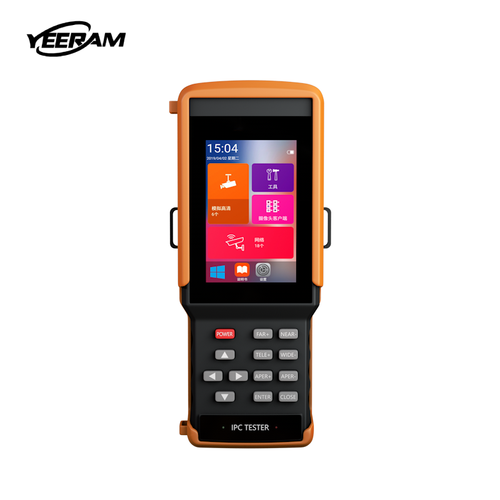

IPC9300 HD Video Surveillance Tester
Touch Screen
4-inch Capacitive Touch Screen
LCD Screen
4-inch IPS HD Full-View Screen, Resolution 800×480
Ethernet Port
10/100/1000M Auto-adaptive
Wi-Fi
Built-in Wireless Wi-Fi, Speed 150Mbps

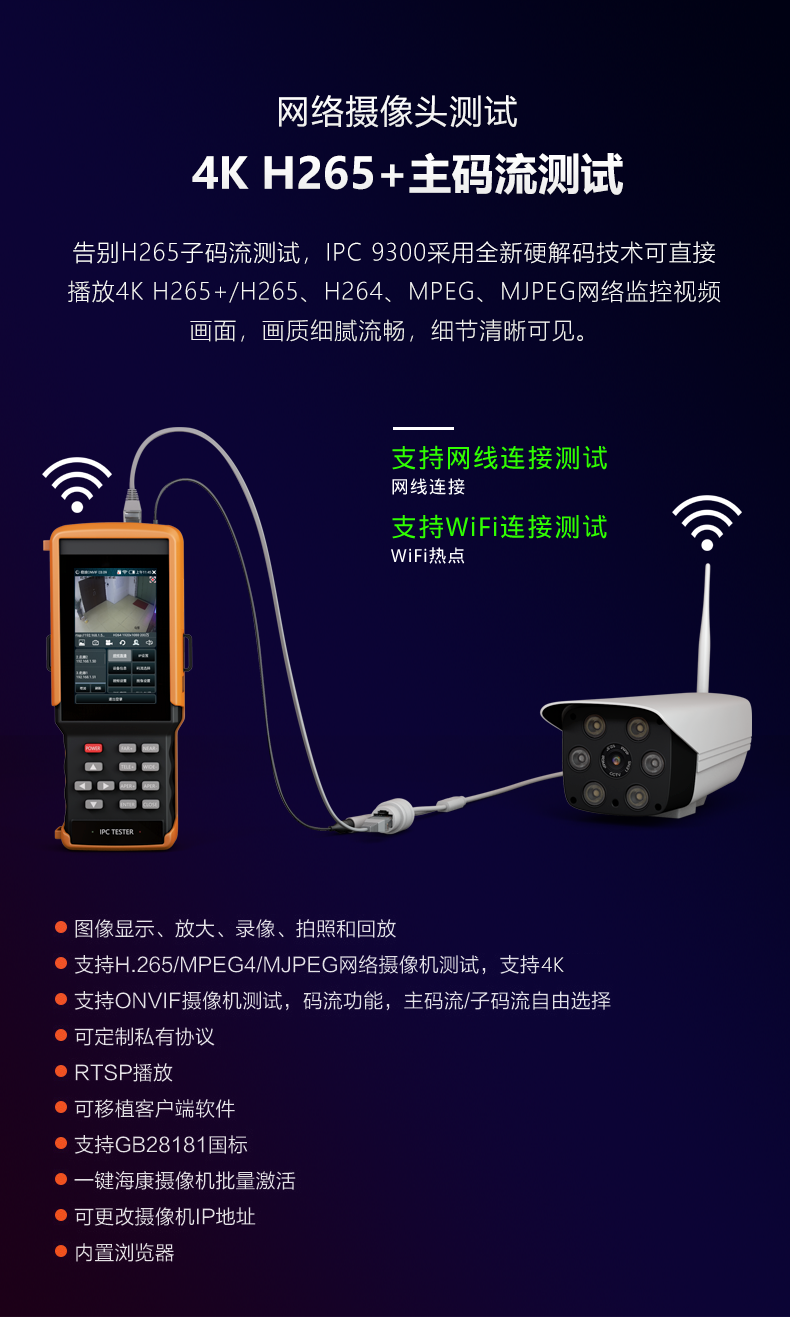

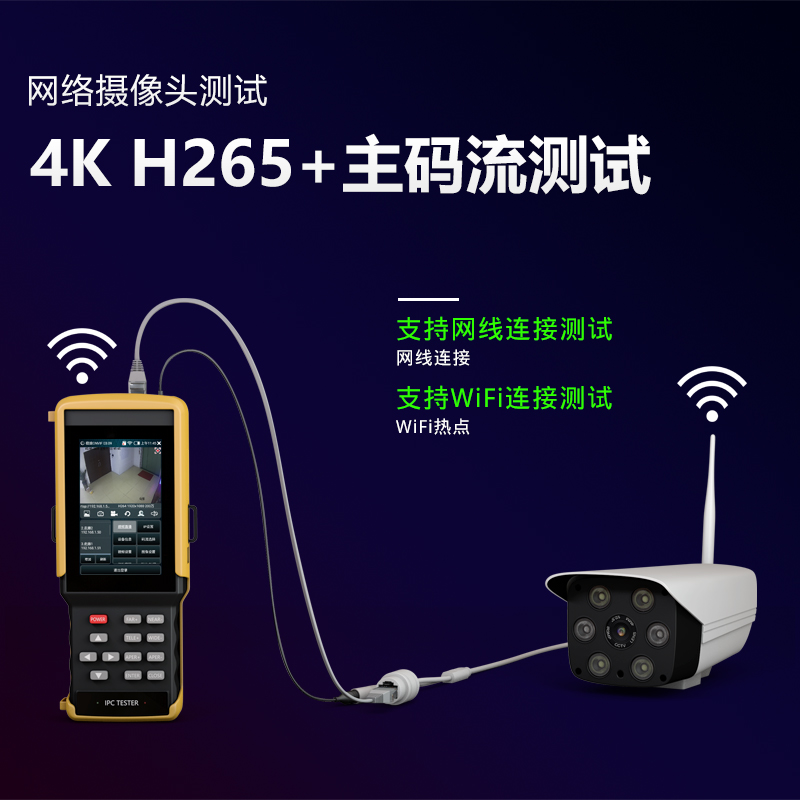

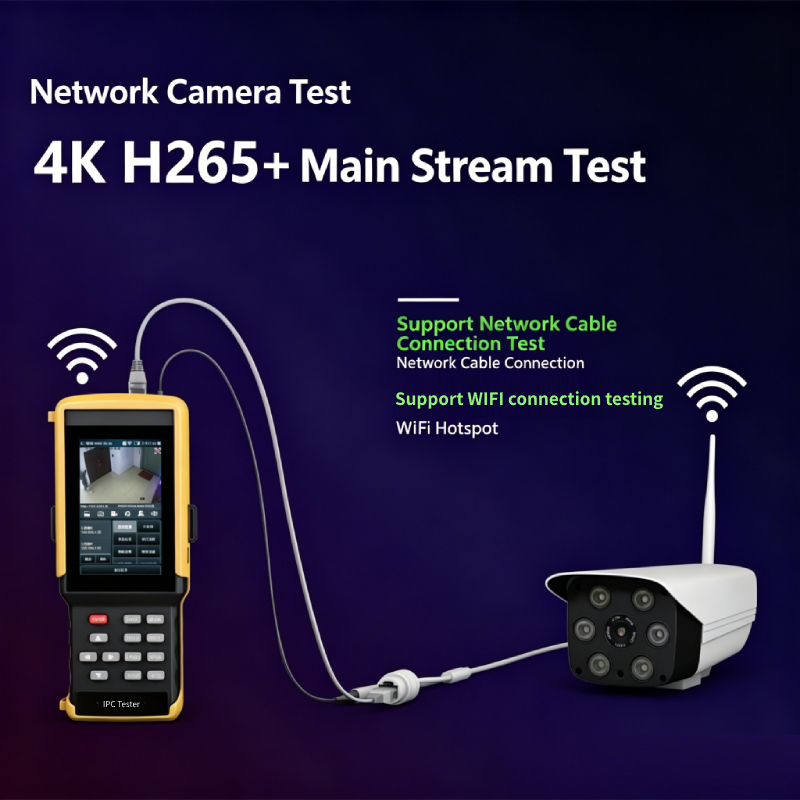

H.265 Main Stream Testing
Supports H.265 main stream playback of camera images, up to 4K resolution

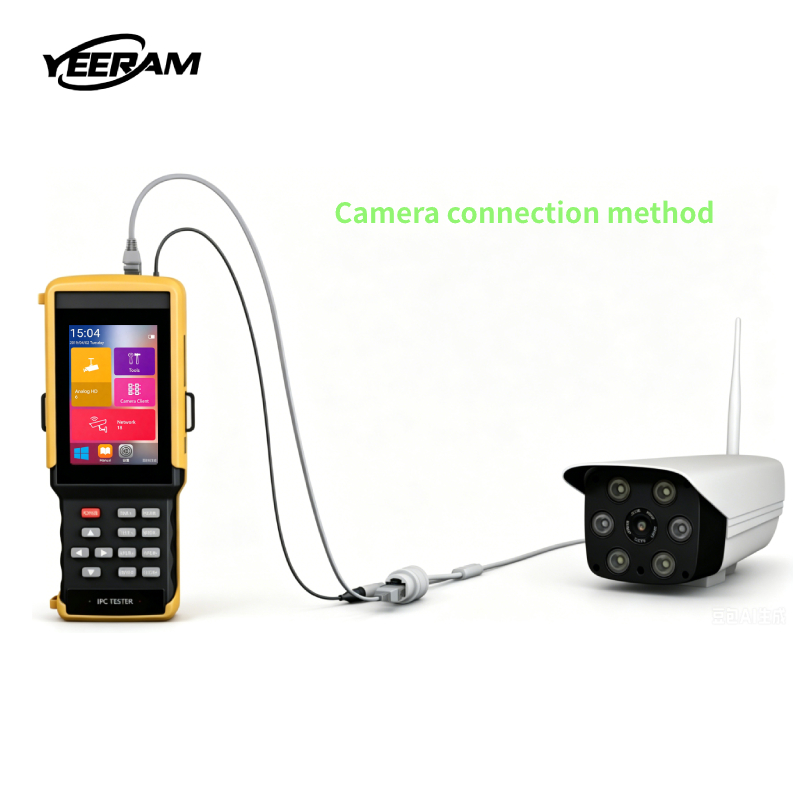

IP Camera Testing
ONVIF (with PTZ control), customized professional IPC tools for major brands, private protocol image playback, supports almost all camera brands on the market

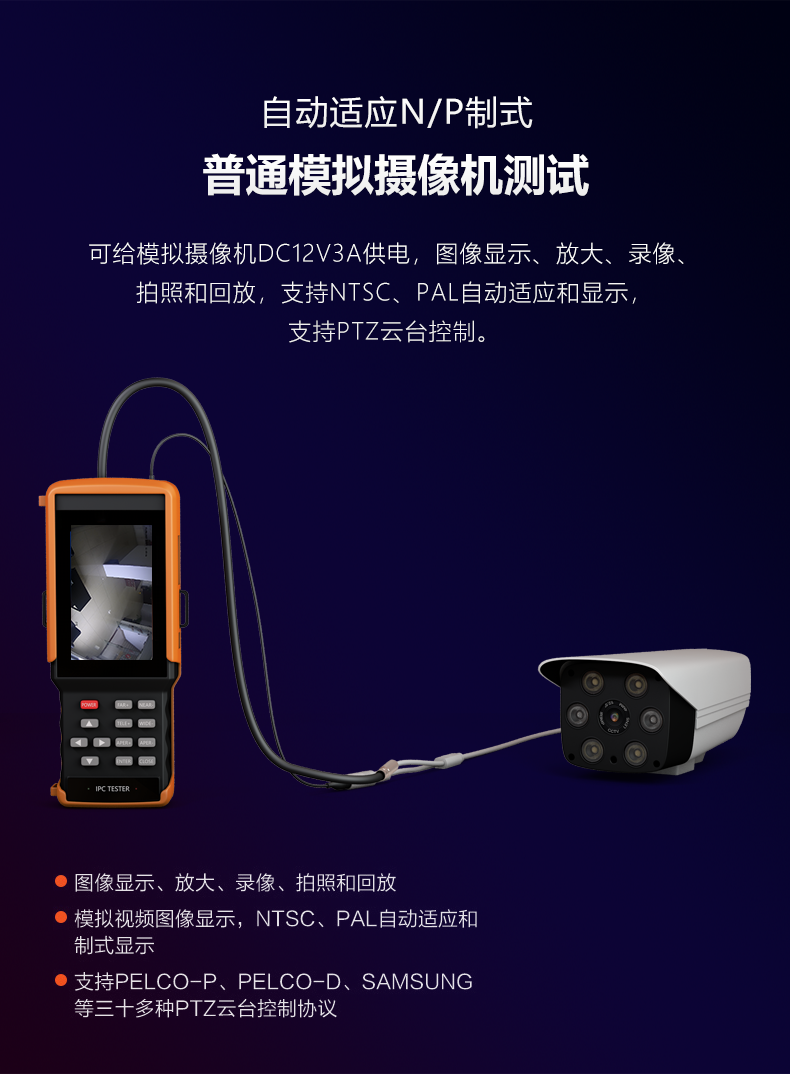

CVBS Analog Camera Testing
1-channel CVBS analog input, supports PAL/NTSC format auto-adaptive

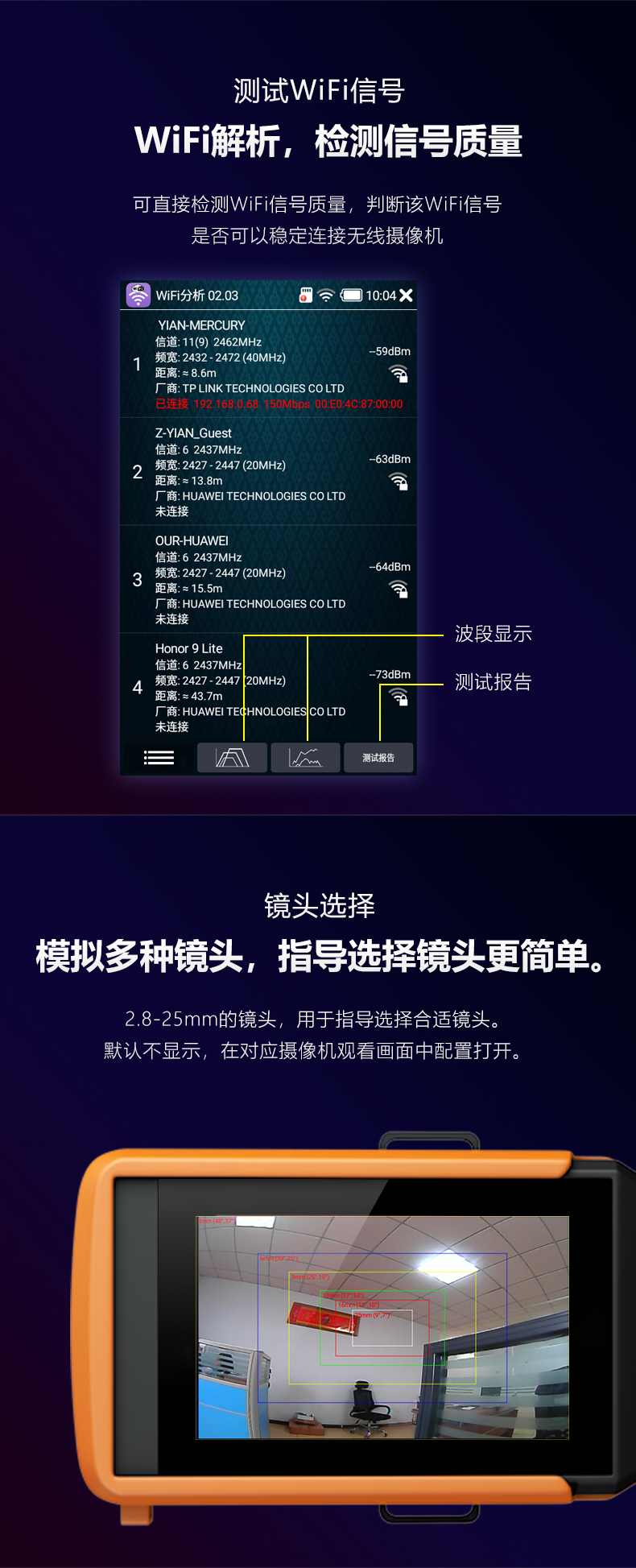

Lens Simulation
Simulates display area for "2.8/3.6/4/6/8/12/16/25mm" lenses
Focus Information Testing
Camera focus information, image quality detection
IP Detection

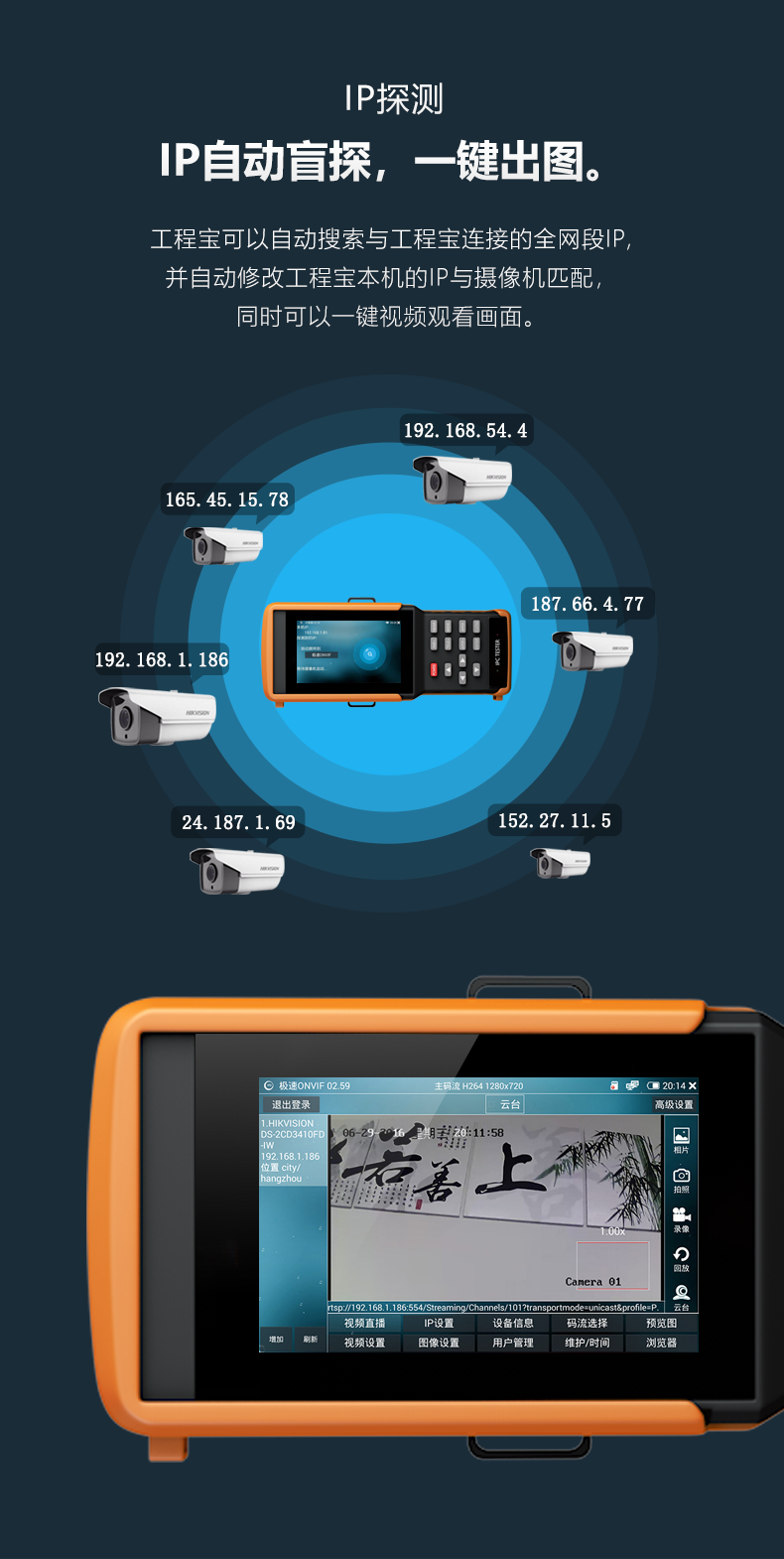

Full network segment IP detection for camera IP addresses

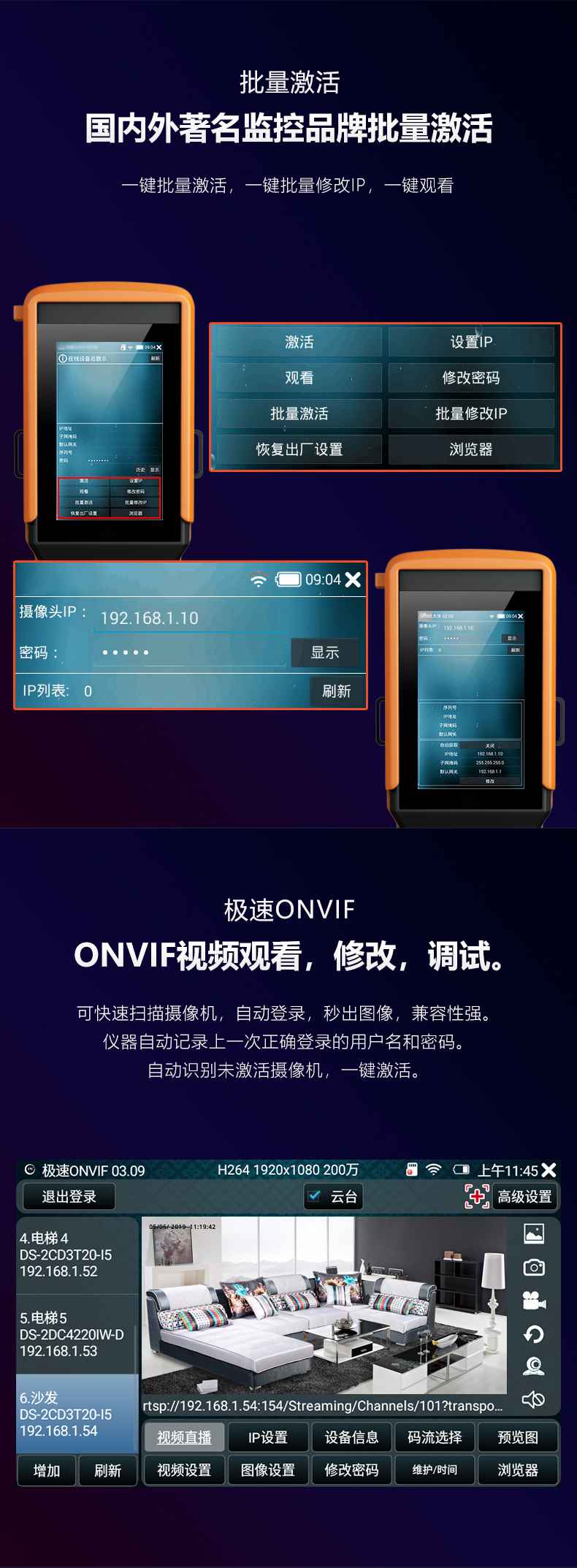

Hikvision SADP Tool
Batch activation and batch IP modification for Hikvision cameras; supports username and password modification
Dahua Testing Tool
Batch activation, batch IP modification, cross-segment IP modification, username and password modification for Dahua cameras
Capture, Record & Playback
Supports screenshot capture, video recording and playback for all video images; supports H.264 encoding storage
PTZ Control
Supports over 30 protocols
DC 12V Power Output
12V DC output, max current 3A, provides temporary power for cameras
RS485 Serial Tool
Receives and sends arbitrary data or hexadecimal data
Charger
DC 12V/2A, full charge in 3-4 hours

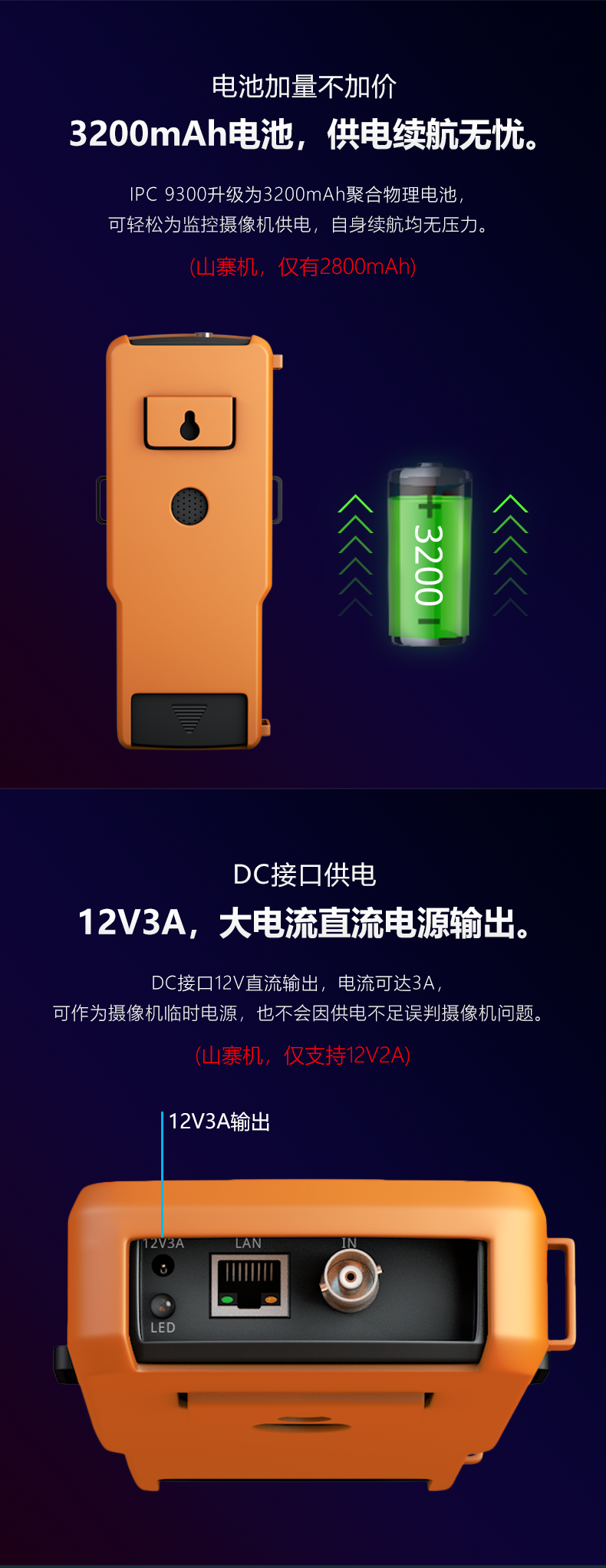

Battery
Built-in 7.4V polymer lithium battery, capacity 3200mAh, working time 6-8 hours
Language
Supports over 10 languages including Simplified Chinese, Traditional Chinese, English, Russian, etc.
Internal SD Storage
8GB
Operating Temperature
-10℃~+50℃
Operating Humidity
30%~90%
Dimensions
230mm×103mm×38mm
Weight
0.5kg
