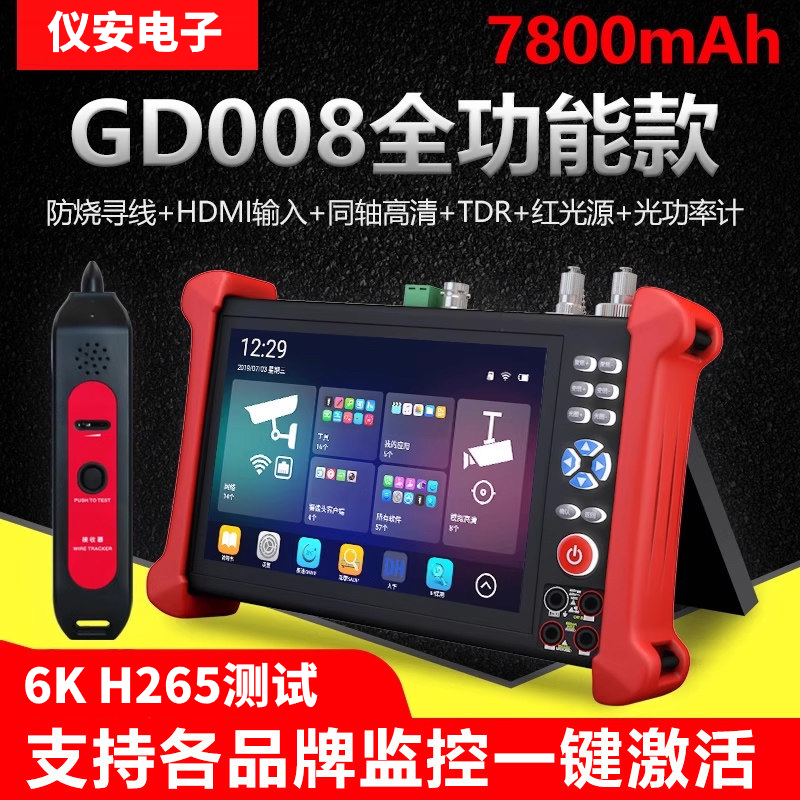

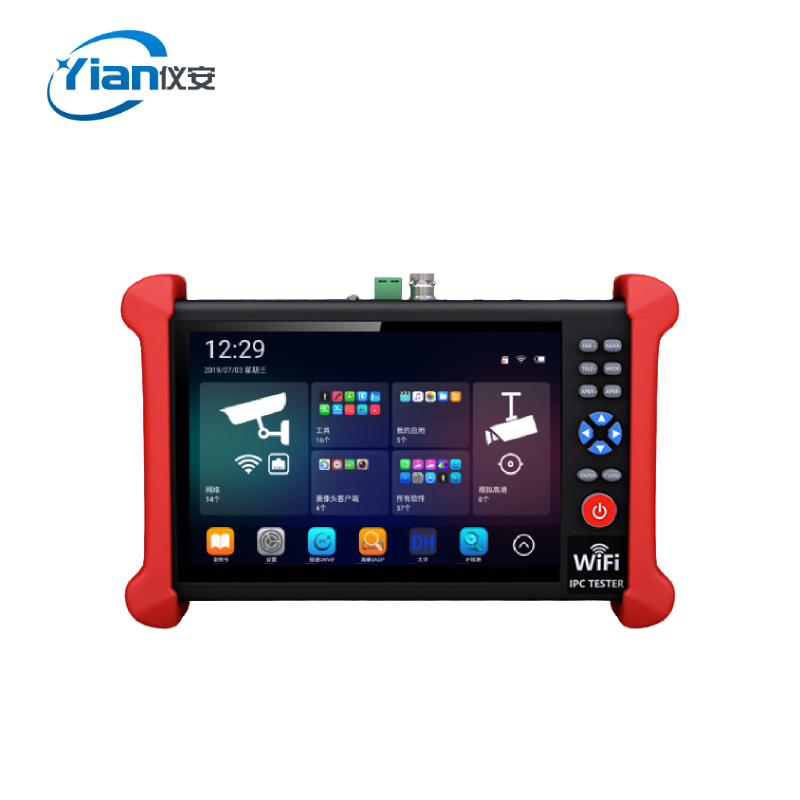

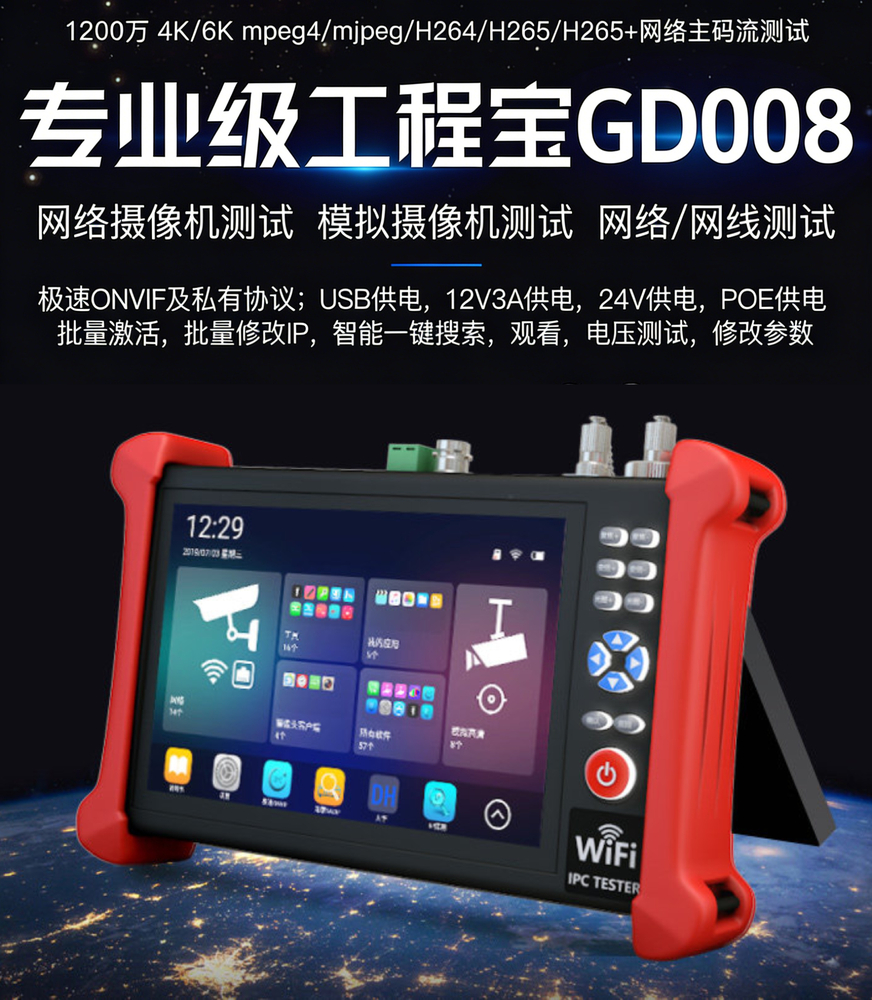

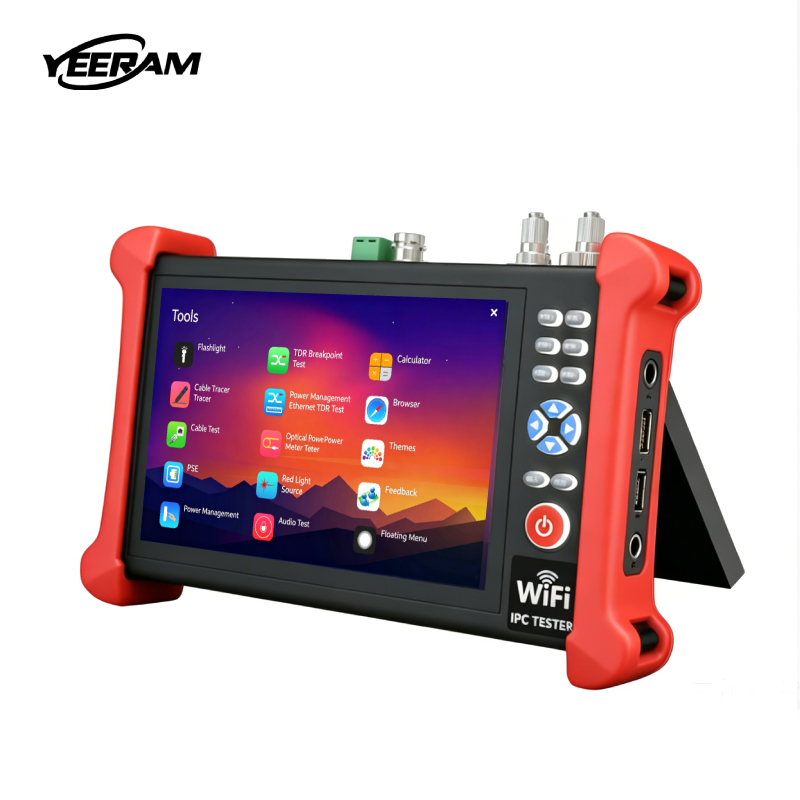

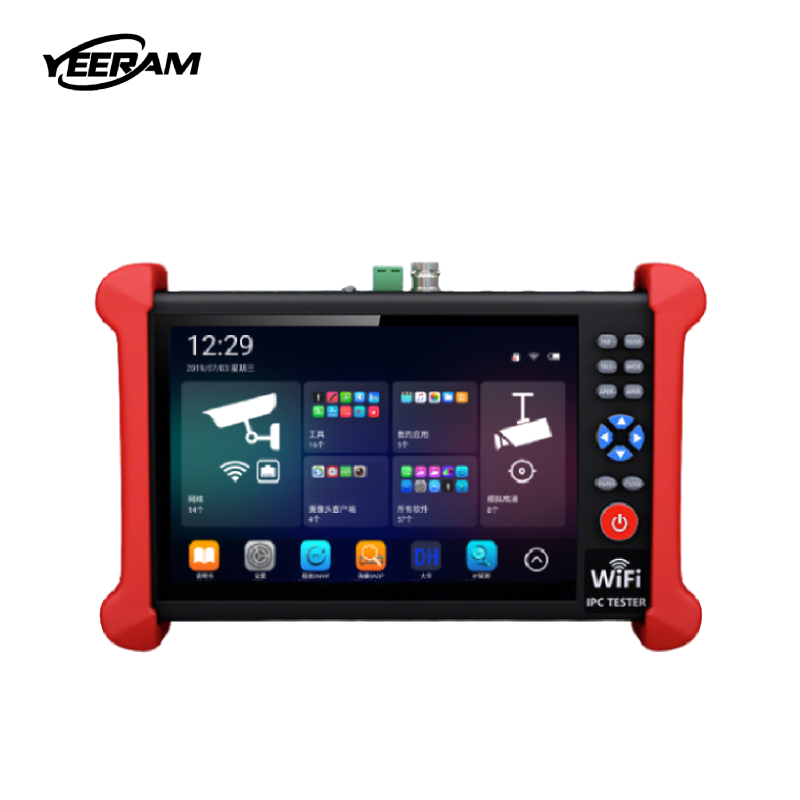

7-Inch Dual Gigabit Ethernet 6K H.265 Main Stream Coaxial HD TDR3.0 Digital Tracer CCTV Tester
Feature:
● 12MP 6K H.265 hardware decoding IP camera main stream real-time display, compatible with ONVIF and mainstream private protocols ● Batch IP camera tools: batch activation, batch IP/channel name/password modification, fast ONVIF tool. ● Analog/HD‑CCTV test: auto‑detects TVI/CVI/AHD (up to 8MP) and CVBS signals, UTC menu control and PTZ. ● Network cable TDR quality test: measures length, attenuation, return loss, impedance up to 200m, detects open/short and pair status. ● Digital anti‑burn wire tracing: 60V withstand voltage, supports PoE live tracing, noiseless ● TDR 3.0: tests breakpoints and length of network cables, coaxial cables, telephone lines, RVVP, etc., up to 1500m. ● Multiple power outputs: standard PoE (48V), two‑way DC12V/3A, DC24V/2A, DC5V/2A – temporarily powers cameras, switches, etc. ● HDMI input & output, Optical power meter & red light source, Digital multimeter, Dual Gigabit Ethernet ports, Advanced network tools: Ping test, IP scan, port flashing, etc.

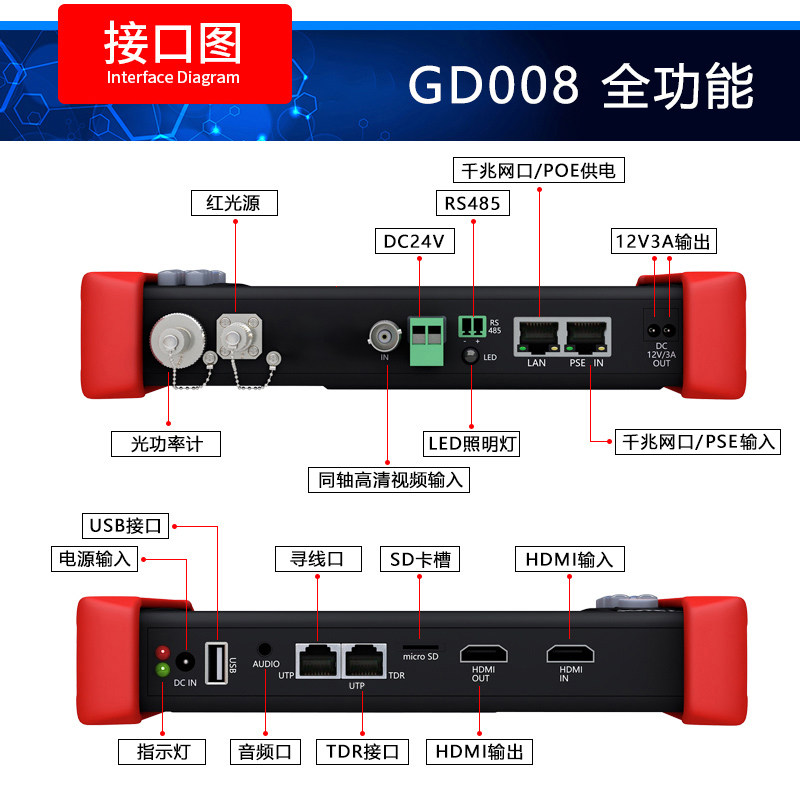

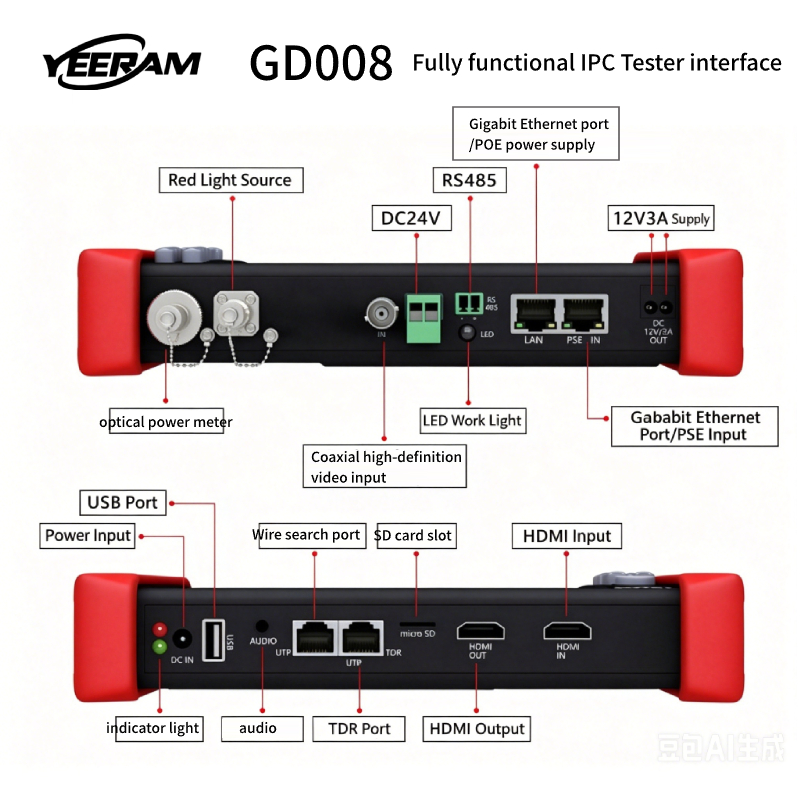

interface:
OPM
RS485 Interface
UTP Wire Tracer
Analog Input
DC IN
VFL Red Light Source
Audio
Gigabit Ethernet PoE Output
Dual DC12V/3A Output
DC 24V
USB
TDR Test Port
micro SD Card
Gigabit Ethernet PSE Input
HDMI IN and OUT
Product Attributes
Brand
YEEARM
Origin
Own factory is located in Guangzhou, Guangdong Province, China
MOQ
1
Technical Specifications
Parameter
Details
Display Screen
7-inch IPS HD full-view touch screen, resolution 1920×1200

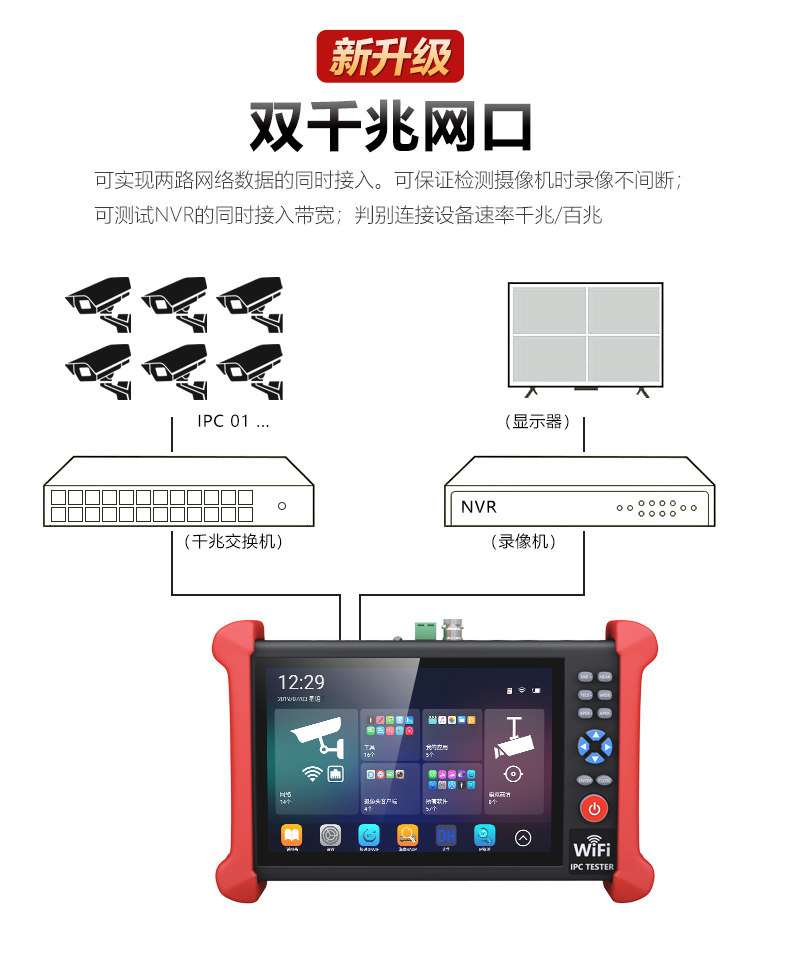

Dual Gigabit Ethernet Ports
Two Gigabit Ethernet ports, 10/100/1000M auto-adaptive

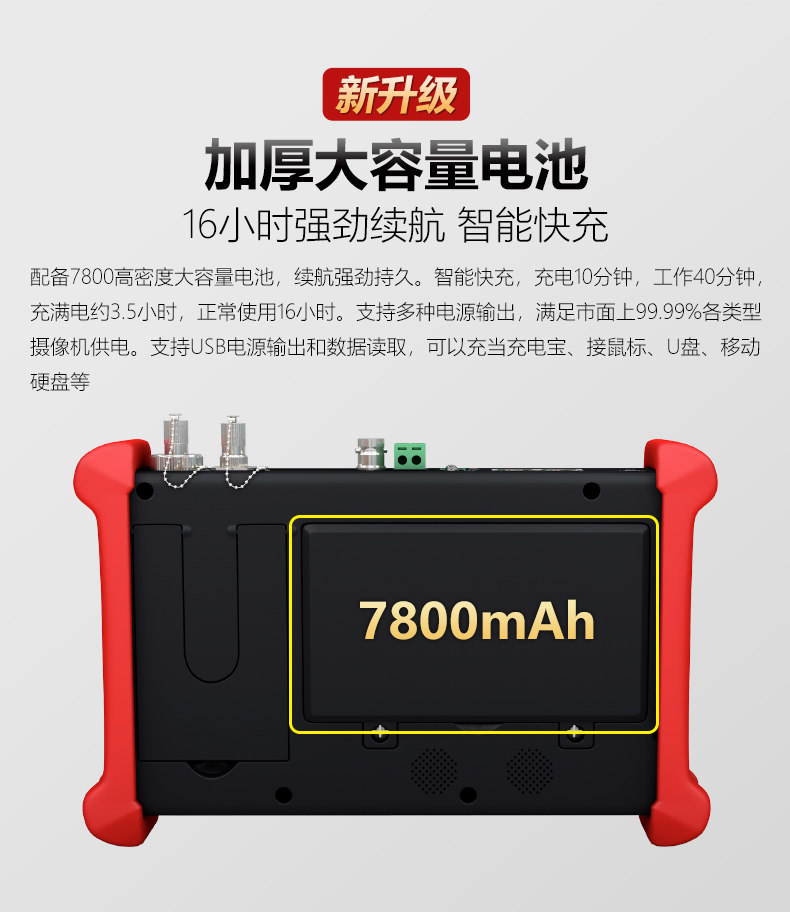

High-Capacity Battery
Built-in integrated high-capacity 7800mAh battery + smart fast charging
Enhanced Wi-Fi
Built-in wireless Wi-Fi, 150Mbps speed, supports wireless IP camera testing and wireless connection

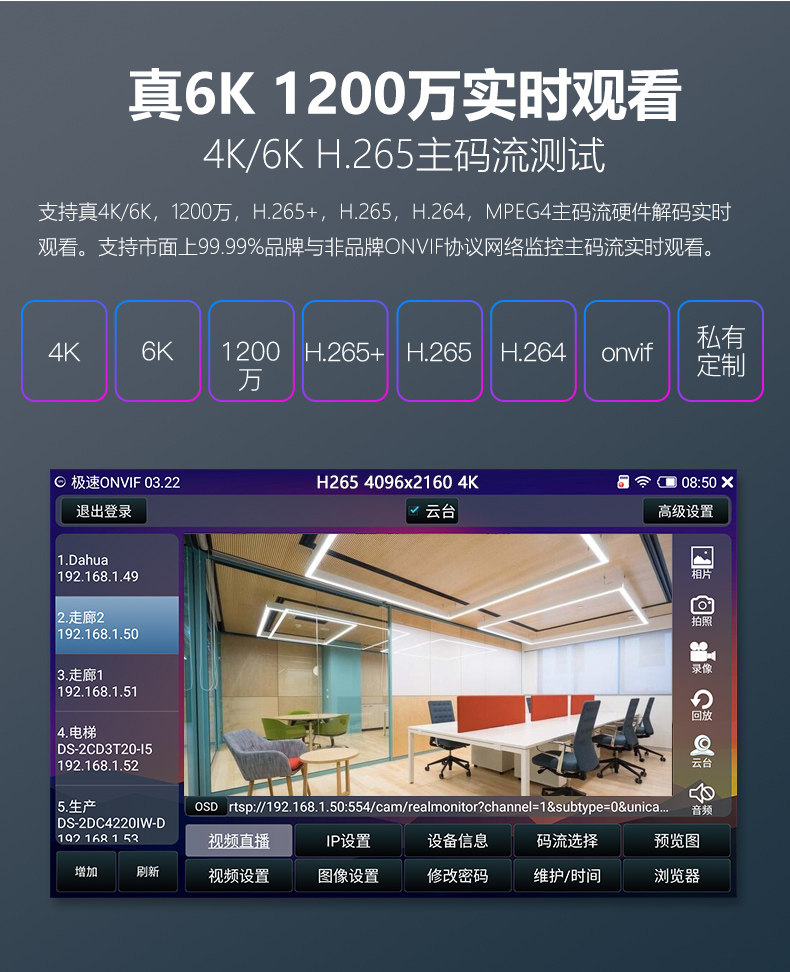

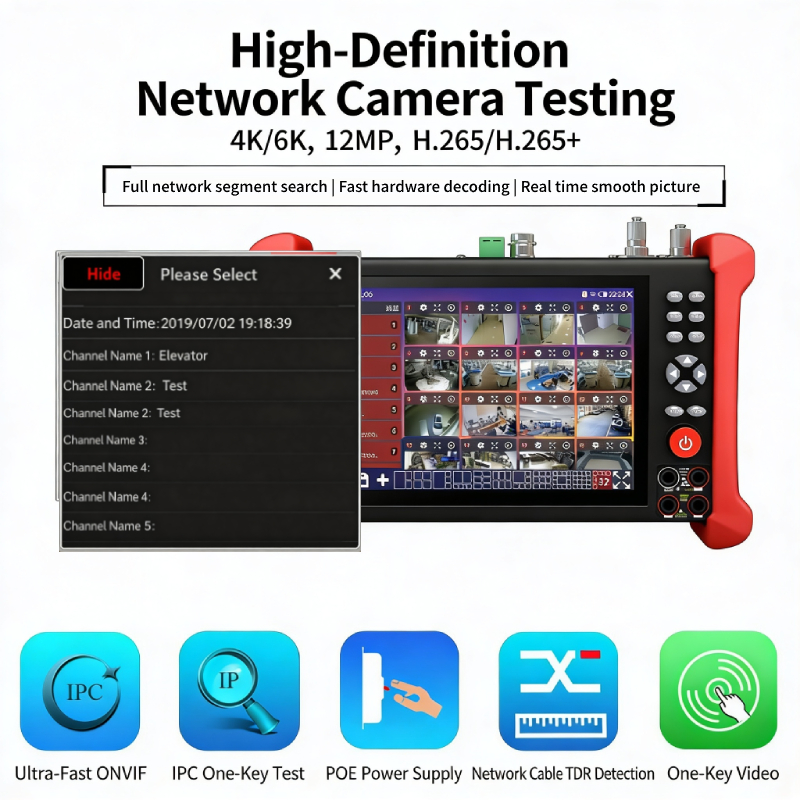

H.265 Main Stream Testing
Hardware decoding, max resolution 4K/6K, supports testing of 12MP cameras

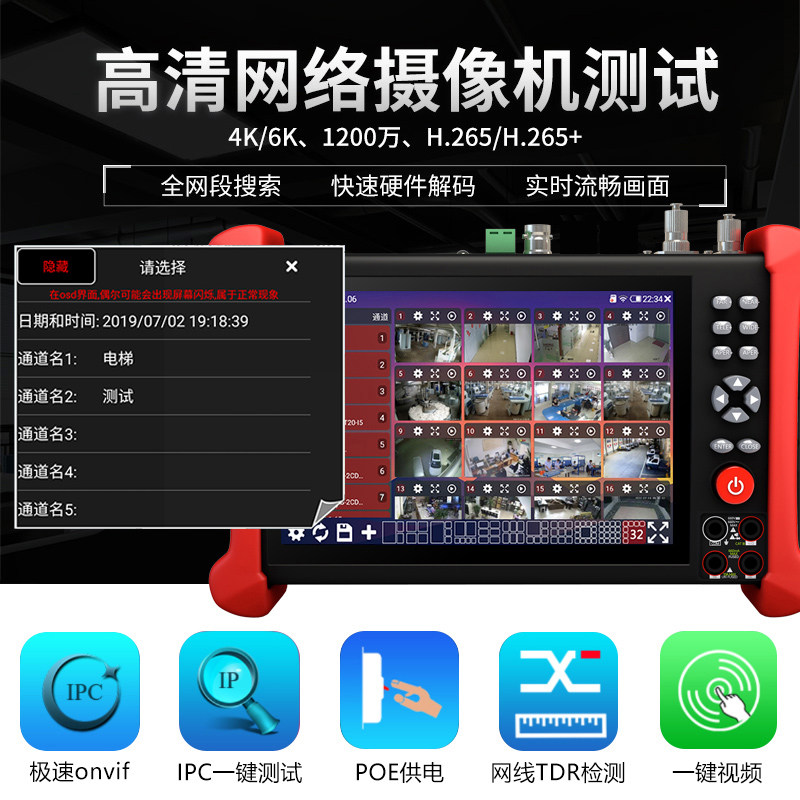

IP Camera Testing
Full smart one-key test, auto IP search, auto login, instant image display
Ethernet Testing
10/100/1000M Ethernet link status test, Ethernet traffic detection
Full Auto IP Scan
Automatically search all IP addresses of cameras in the network segment, auto-jump to video playback, time-saving and labor-saving
Auto IP Segment Matching
The tester's IP automatically matches the camera's network segment
Fast ONVIF Tool
Auto login, play image, supports modifying IP address/channel name, generating test reports, etc.

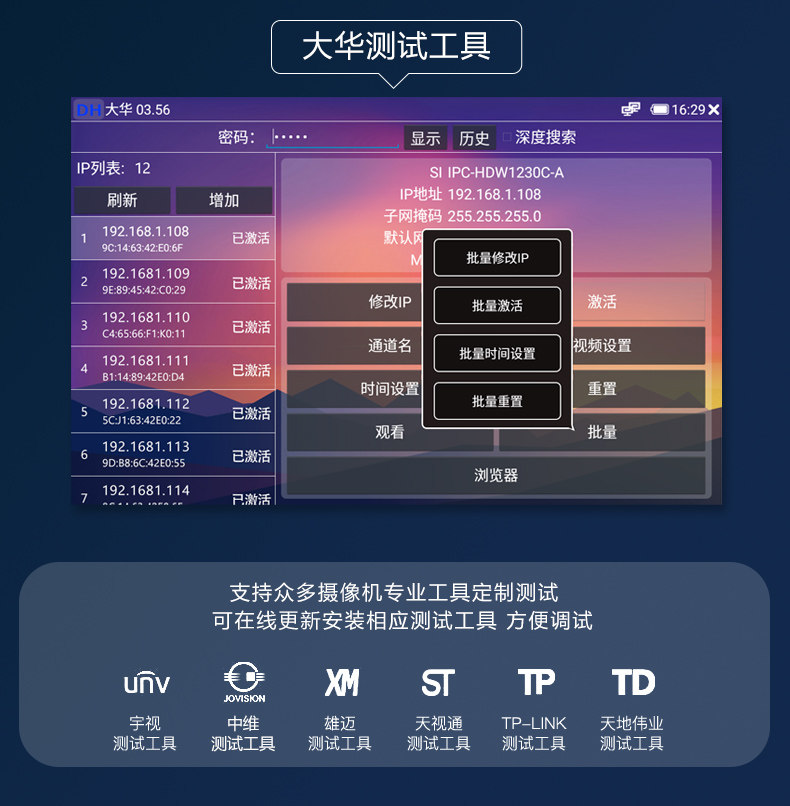

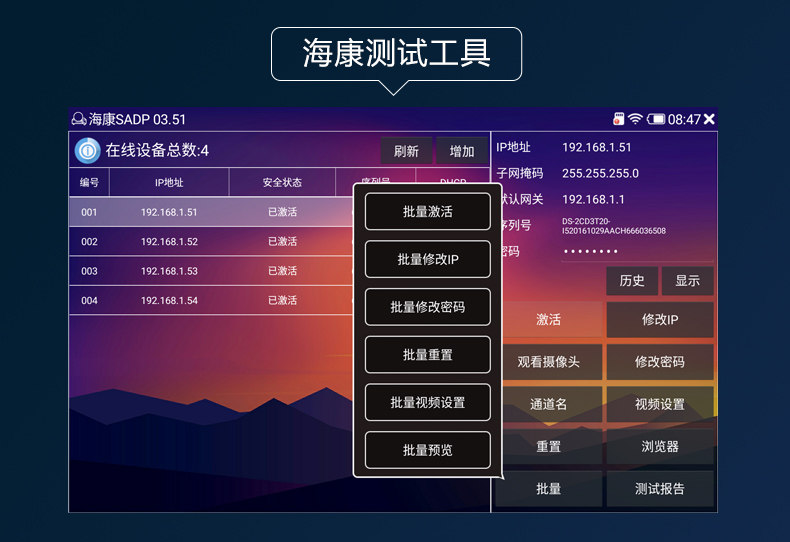

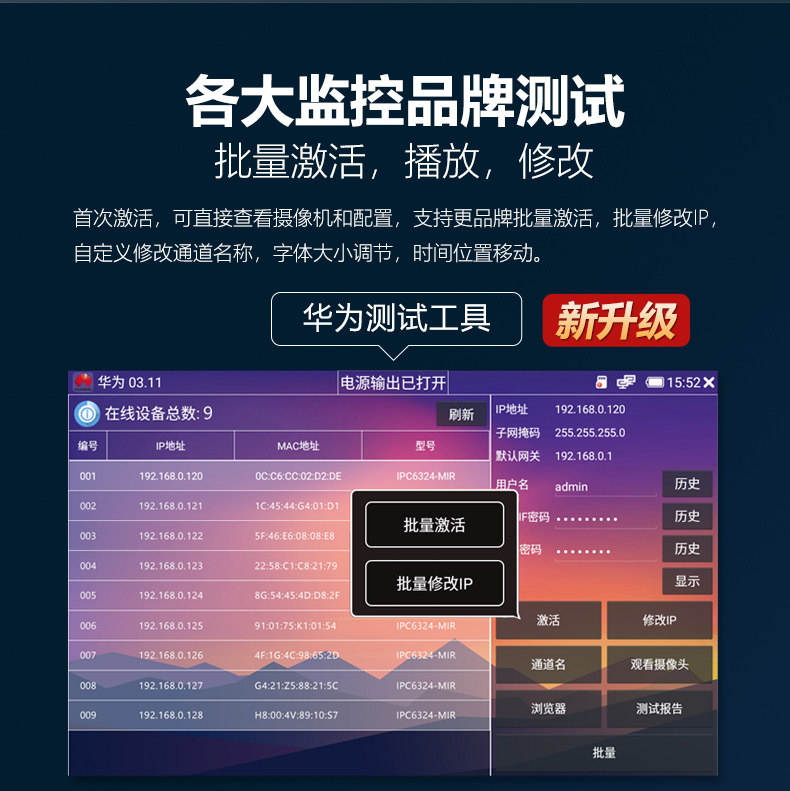

Major Brand Testing Tools
Batch activation and batch IP modification for major surveillance brands, custom channel name modification, username/password modification, etc. Customization available for other brands
Advanced Link Monitoring
Supports Ethernet statistics, loopback, network loop testing, etc.
Advanced Network Tools (Pro Edition)
Ping test, IP scan, port blink, PPPoE dial test, DHCP, MAC address query, socket debugging, DNS optimization, port scan, etc.
Lens Simulation
Simulates display area for 2.8/3.6/4/6/8/12/16/25mm lenses
Digital Anti-Burn Cable Tracing
Supports cable tracing and sequence testing; supports PoE live cable tracing with anti-burn withstand voltage up to 60V; digital signal tracing, noise-free and anti-interference. After tracing, connect the cable to the TDR port to directly display the wiring sequence (straight-through/crossover) and check cable availability
HDMI Input
Can be used directly as a monitor to test recorders and other devices

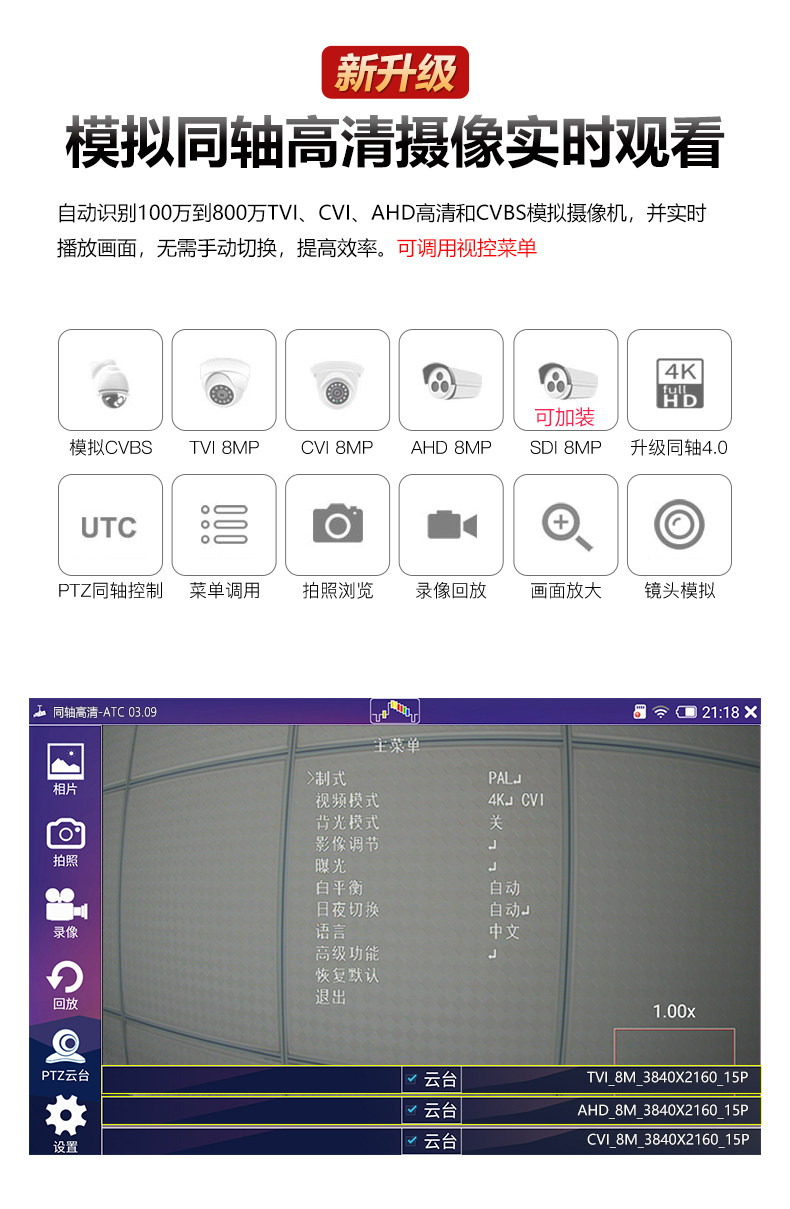

Coaxial HD Test 4.0
TVI/CVI/AHD supports up to 8MP resolution with adjustable OSD menu

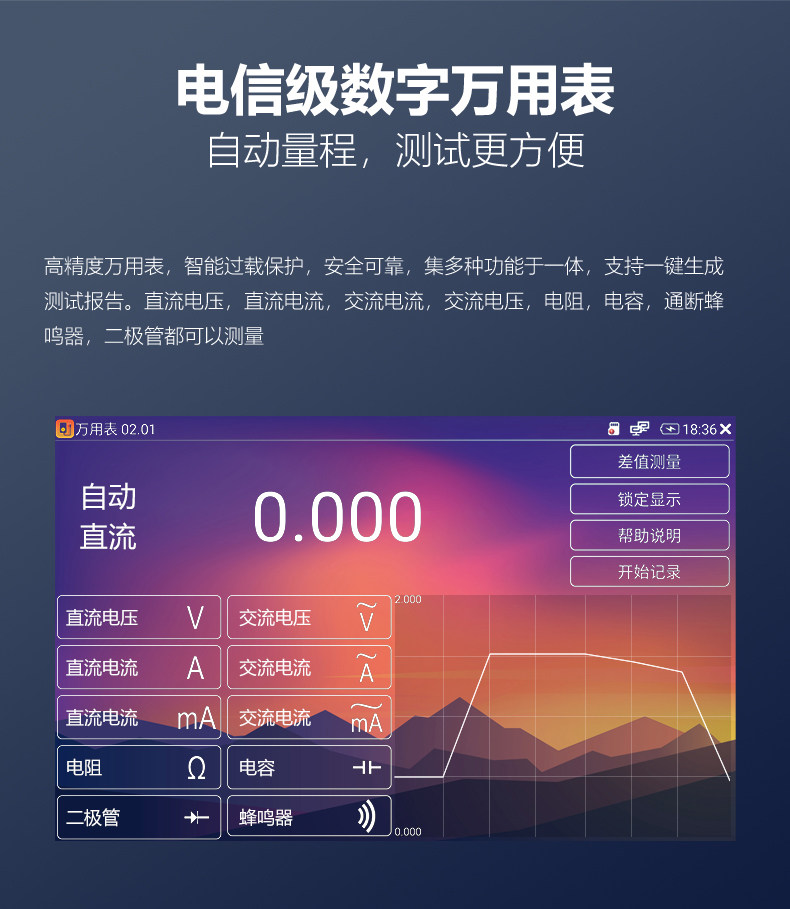

Digital Multimeter
Measures DC voltage, DC current, AC current, AC voltage, resistance, capacitance, continuity buzzer, and diodes. With built-in isolation protection and one-click test report generation
Optical Power Meter
Supports multiple wavelengths, tests fiber attenuation/loss and continuity
Visual Fault Locator (VFL)
Detects fiber optic line faults such as breaks, cracks, and bends
Advanced TDR Breakpoint Test
Tests network cables, coaxial cables, telephone lines, RVVP lines, AVVR lines, etc. Intuitively displays the length of each core, supports calibration, measurement range 3–1500 meters
Focus Information Testing
Camera focus information, transmission signal quality, image quality testing
Tests cable sequence and continuity, checks cable availability
HDMI Output
1-channel HDMI output, supports 1920×1080P
Analog Video Test
1-channel BNC input, supports PAL/NTSC format
Video Image Zoom
Supports video zoom, zoom and pan of IP camera images
Image Management
Supports video zoom, camera photo capture, video recording, PTZ control, etc.
PoE/PSE Voltage Test
Displays power supply voltage and cable connection status
Audio Testing
1-channel input, tests audio functionality and supports recording
Built-in Serial Tool
Receives RS485 protocol code data and sends hexadecimal codes
New Feature: Enhanced Wi-Fi Analysis
Analyzes nearby Wi-Fi signal strength and channel stability, checks encryption method, speed, MAC address, NIC manufacturer info, and generates printable reports
New Feature: Smart Screen Share
No software installation required; allows customers to view camera status intuitively during high-altitude work

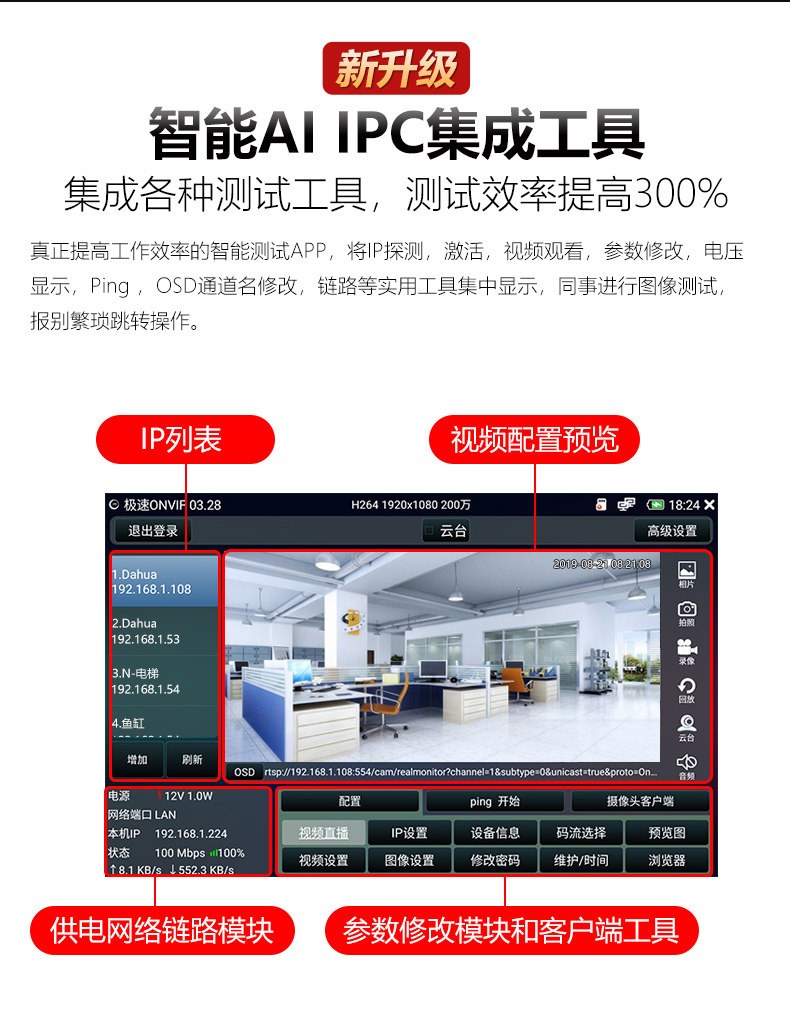

New Feature: Smart AI IPC One-Key Test
Integrates camera testing steps (power supply, IP detection, video viewing, activation, link status) into one function, completing camera testing with one click
New Feature: Security Tools
Helps calculate recording capacity, camera focal length, bandwidth, etc.

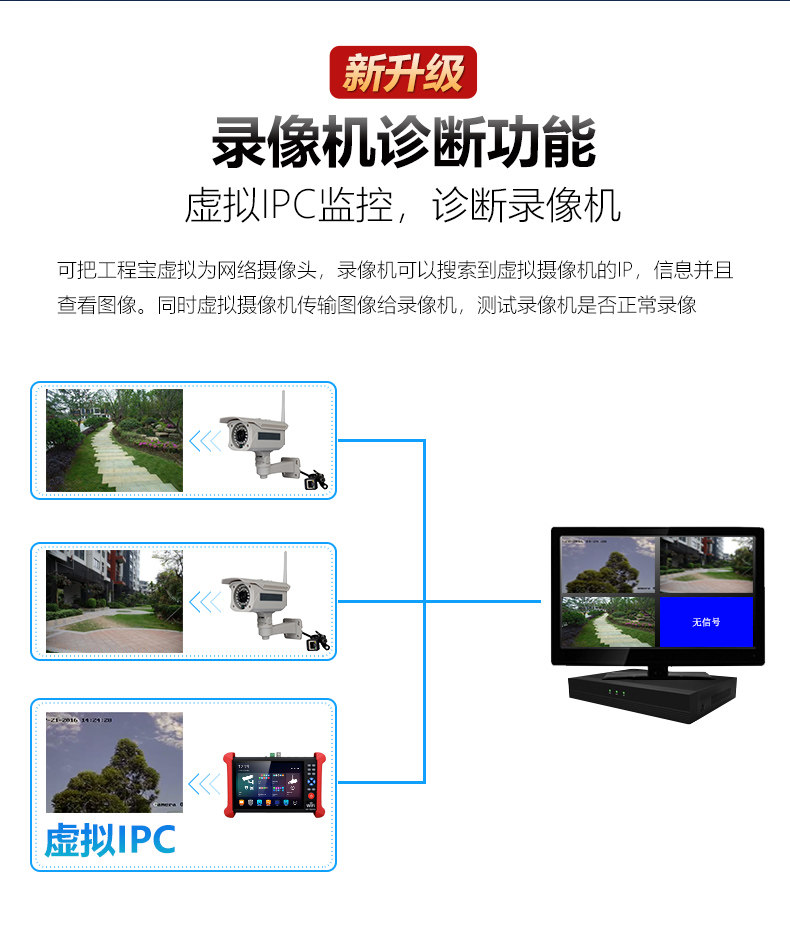

New Feature: Virtual Network Monitoring
Virtualizes the tester as an IP camera to analyze NVR and cable issues

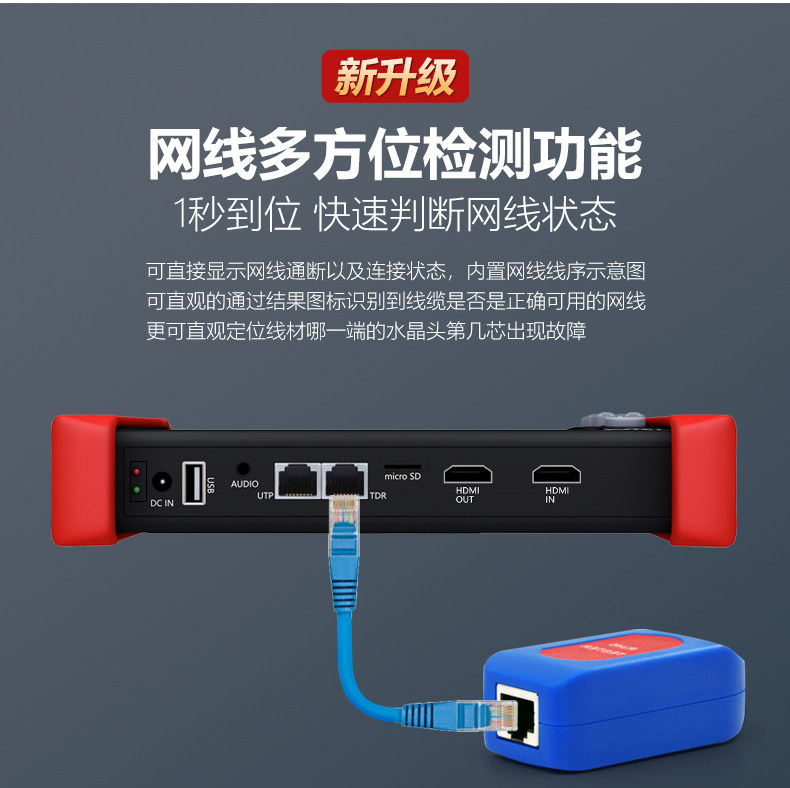

New Feature: RJ45 Connector Fault Location
Visually displays which core of the RJ45 connector is faulty on either the main unit or the remote tester
```
