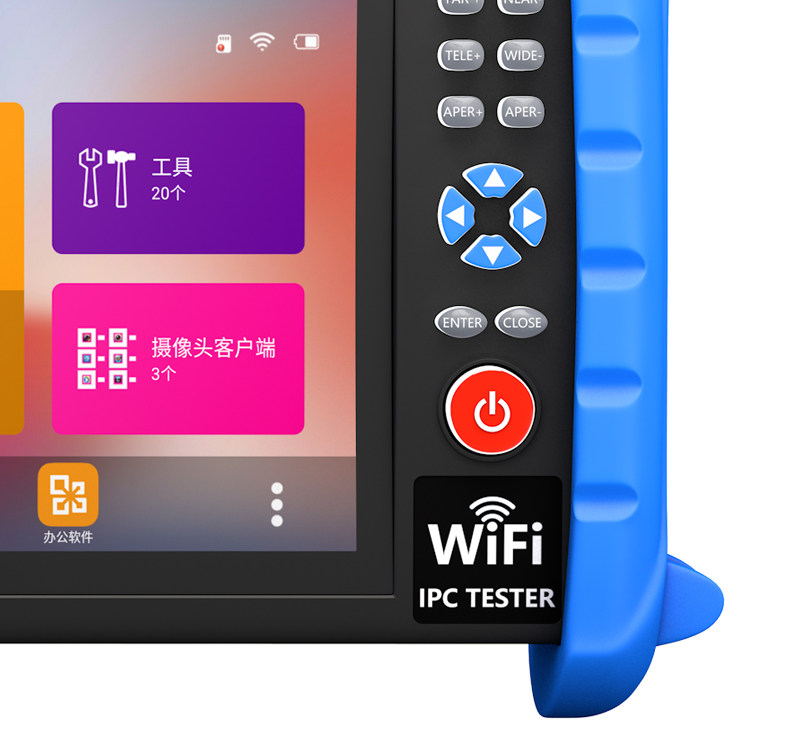

Built-in 2.4GHz wireless Wi-Fi module, max speed 150Mbps; receives images from wireless network cameras, etc.
Wi-Fi Analyzer
Built-in Wi-Fi analyzer, view Wi-Fi information, test signal strength, analyze channel occupancy and channel rating, etc.

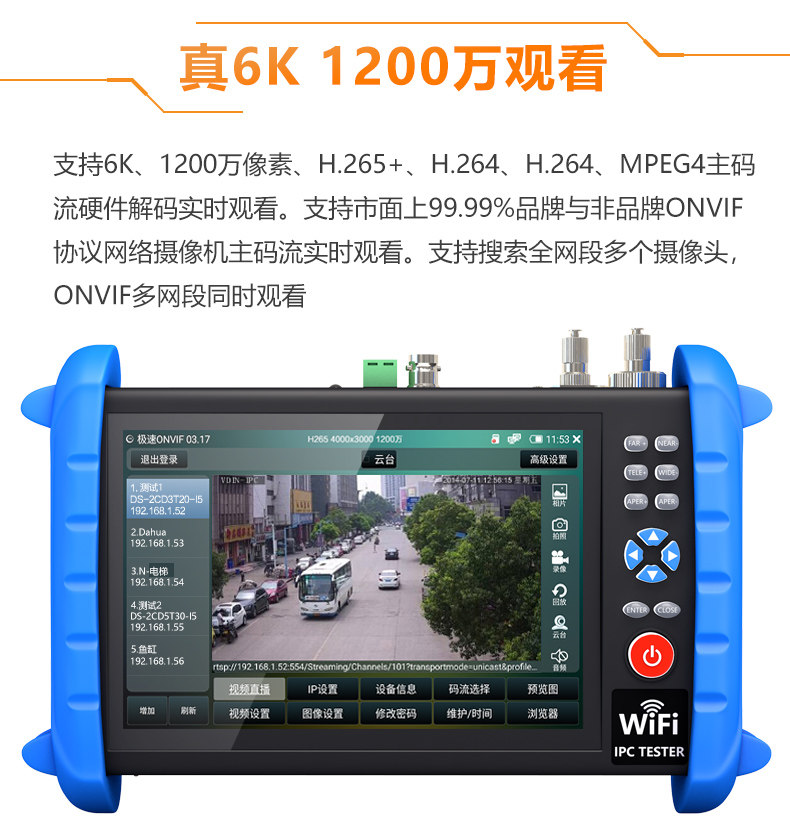

H.265 Main Stream Testing
Hardware decoding support H.265+, H.265/H.264 encoded camera testing. H.264 mode: Main stream test support up to 6K at 30FPS. H.265 mode: Main stream test support up to 8K at 24FPS.

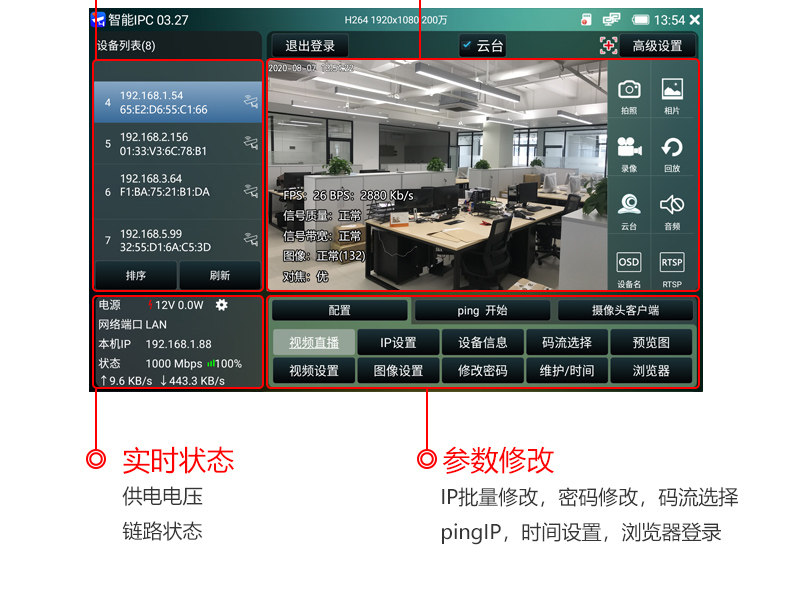

Smart IPC
Integrate DC12V/PoE 48V power supply & power detection, network information, IP address search, image display, IP configuration, OSD modification, etc. into one smart operation.
Universal ONVIF (Private Protocol)
Support ONVIF (with PTZ control), compatible with ACTi, Dahua, Hikvision, Uniview, Tiandy, and more. Customization available.
IP Detection
auto scan all network segments IP
Fast ONVIF
Auto-login and play image, modify IP, channel name and other parameter, generate test report, etc.
Hikvision Testing Tool
Hikvision one-click activation, image test, modify username, password, encoding format, IP address, channel name, etc. Support batch activation, batch video setting modification, batch IP modification, factory reset, etc.
Dahua Testing Tool
Dahua batch activation, image test, modify username, password, IP address, channel name, etc.
CVBS Video Signal Testing
1-channel Video IN (BNC input), support PAL/NTSC format.
Video Image Zoom
Support analog CVBS video image zoom, IP camera image zoom and pan.
Capture, Record, Browse & Playback
Capture screenshot and record video, image browsing, video playback.
Network Cable TDR Testing
Test cable pair status, length, attenuation, reflectivity, impedance, delay skew, etc.
HDMI Output
1-channel HDMI output, support 1080P resolution.

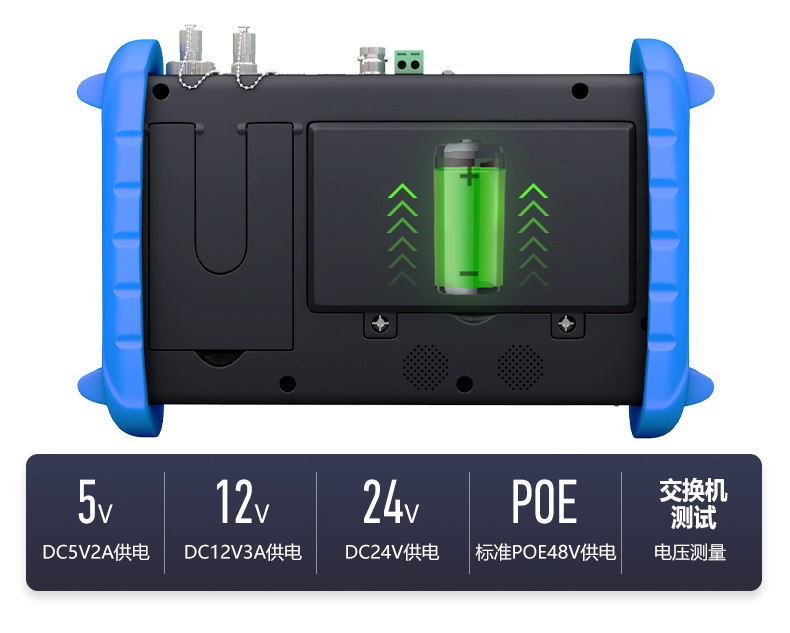

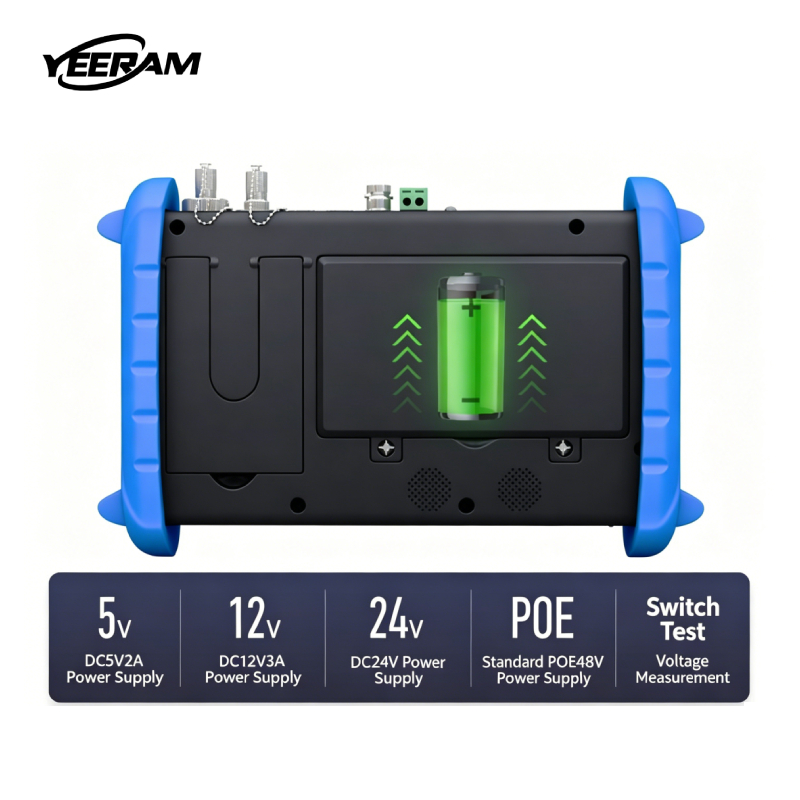

PoE Power Output
Standard PoE power output, 48V, max 25W.
DC 12V Power Output
DC12V power output, max current 3A, provide temporary power for camera.
DC 24V Power Output
24V output, provide temporary power for low-power PTZ camera.
USB 5V Power Output
5V/2A power output, can be used as a power bank for mobile phone.
Drop-down Menu
Quick access tool: User manual, analog, upgrade center, file management, screenshot, LED Light, brightness adjustment, volume adjustment, etc.
Audio Testing
1-channel audio input, test audio functionality, support recording.
PTZ Control Test
RS485 bus, compatible with 30+ protocols.
Virtual IPC
Can simulate IP camera signal, facilitating NVR recorder function debugging.
PoE/PSE Voltage Test
Display power supply voltage level and cable connection status.
Network Cable Test
Wire Sequence Test: Test cable pair status, display wiring sequence and RJ45 crimping status. Supports shielded network cable testing.
Network Tools
IP address scan, ping test, link scan, port blink. Quickly find IP addresses of IP camera or other device connected to the tester.
* indicates optional functions
HDMI Input*
One HDMI input, support up to 4K resolution.
Analog Color Bar*
Output PAL/NTSC format signal to test CVBS cable.
Cable Tracing*
Use advanced multiplexing technology for cable tracing and wiring sequence testing. After the tracer find the cable, connect it to the UTP port, the main unit directly display the wiring sequence (straight-through, crossover, etc.).
Digital Multimeter*
AC/DC voltage, AC/DC current, resistance, capacitance, diode testing, continuity testing, etc. Test speed: 3 times/second. Reading range: -6600 to +6600.
OPM Optical Power Meter*
Wavelength (nm): 850/1300/1310/1490/1550/1625nm. Power range (dBm): -70 to +10dBm.
VFL Red Light Source*
Emit visible red light to detect fiber optic line fault such as break, crack, bend, etc.
TDR Breakpoint Test*
Measure breakpoint (open circuit) location for BNC cable, network cable, telephone line, etc. Max test distance: 3km. Short circuit length detection not supported.
Coaxial HD AHD/CVI/TVI*
AUTO HD, automatic recognition, adaptively display AHD/CVI/TVI 8MP coaxial camera image, view control and menu access.
HD-SDI Camera Test*
SDI video signal 8MP camera test, view control and menu access.
