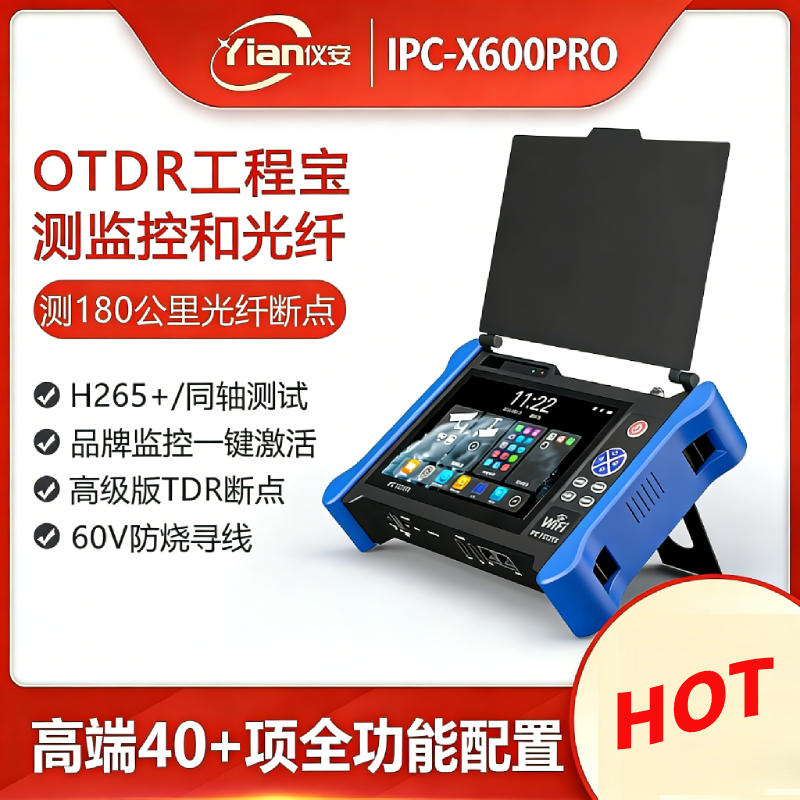

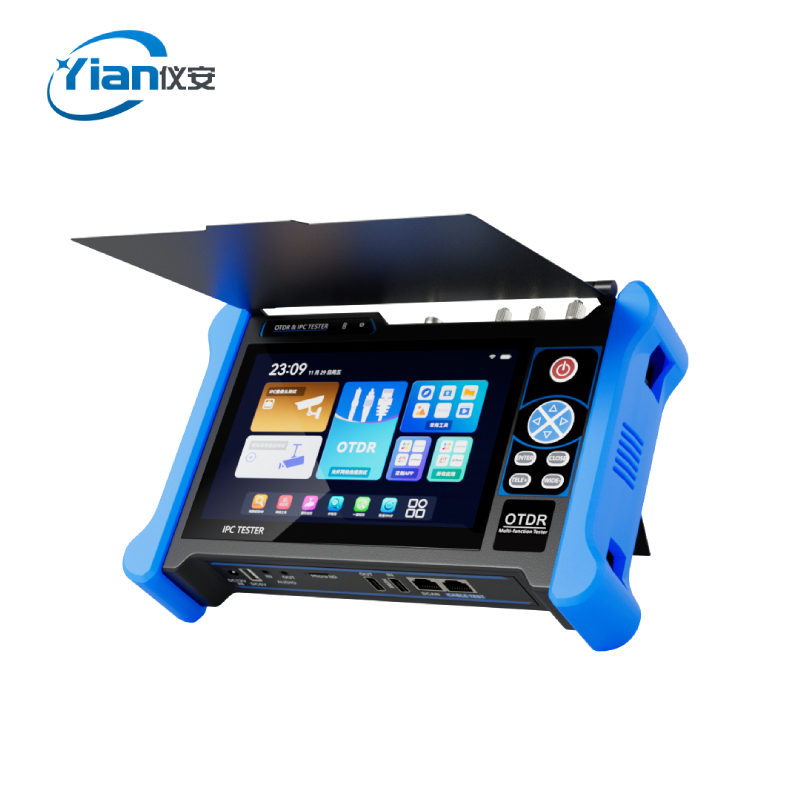

The latest flagship intelligent monitoring and testing instrument (Gongchengbao) launched by Yeeram, IPCX600 Pro, has the core advantage of integrating OTDR fiber testing module, supporting 1310/1550nm dual wavelength, 32dB dynamic range and 150 kilometers testing distance. It can accurately measure fiber length, breakpoint, attenuation and fusion loss, and generate event maps and test reports, greatly improving fiber troubleshooting efficiency. In addition, the device also supports hardware decoding of 6K (12 million pixels) network cameras and protocols from over 100 brands such as ONVIF, Hikvision, and Dahua; Compatible with TVI/CVI/AHD (up to 8 million) and CVBS analog signals, and equipped with HDMI input/output; Integrated with dual gigabit Ethernet ports, two 12V3A outputs, POE/PSE power supply, TDR breakpoint testing (up to 1500 meters), 60V anti burn digital line finding, network cable sequence detection, red light source, RS485, SD card slot, USB and audio ports, and other rich interfaces, it is a one-stop tool for efficient troubleshooting and debugging for engineering personnel.
```html
8K H265+/H265 main stream testing Fiber Breakpoint 150km OTDR Tester
Feature:

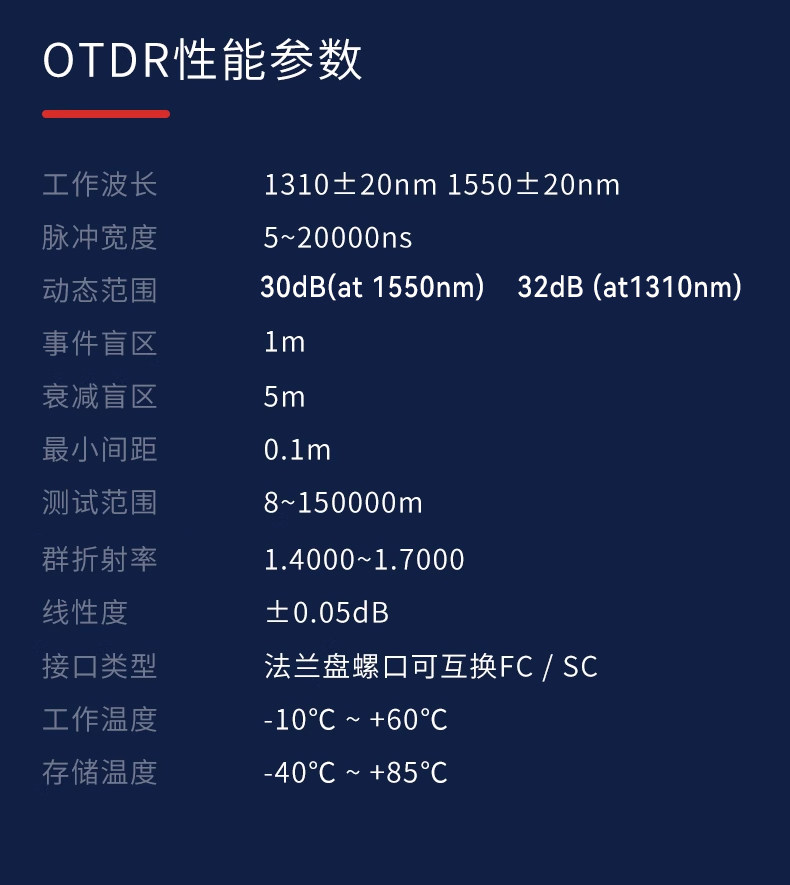

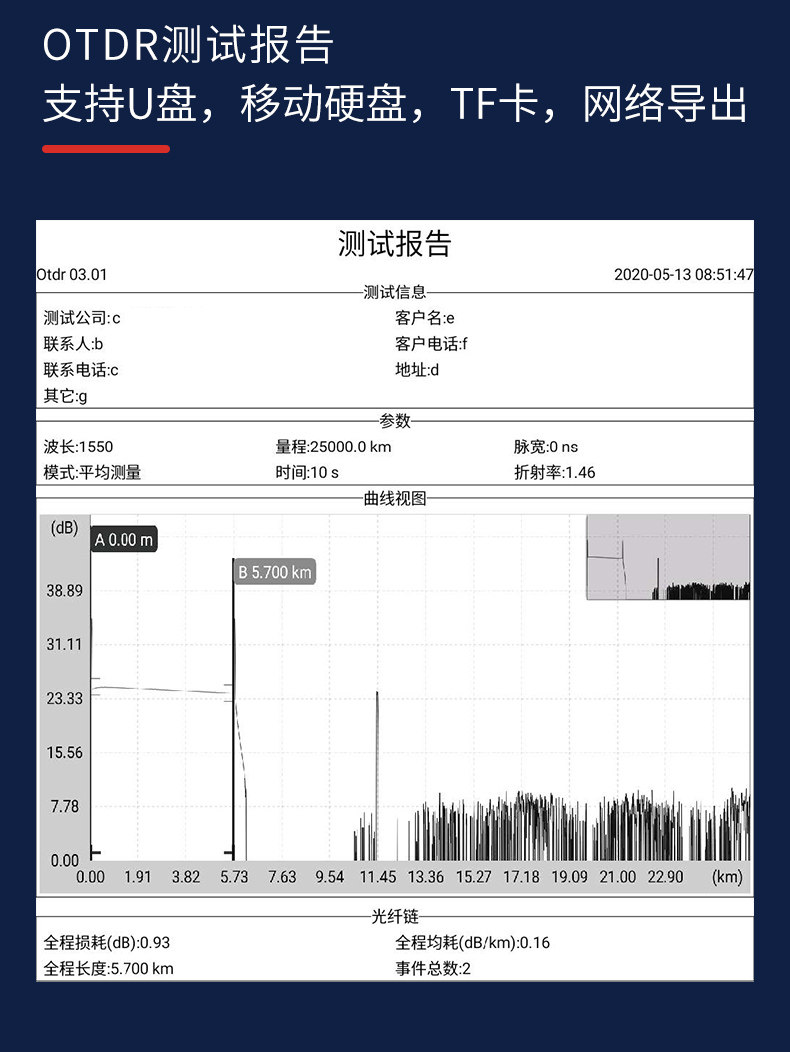

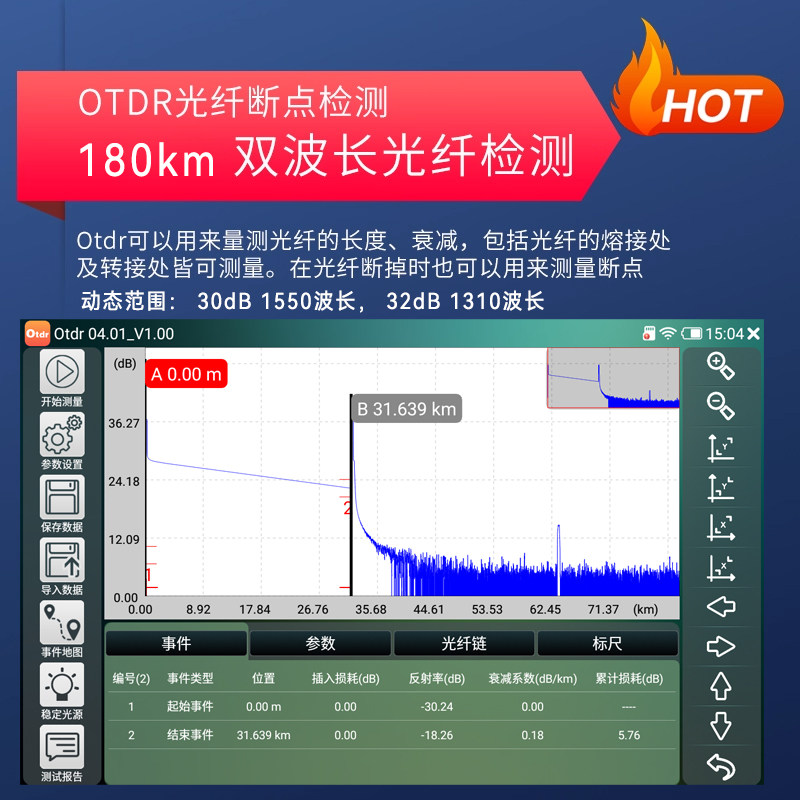

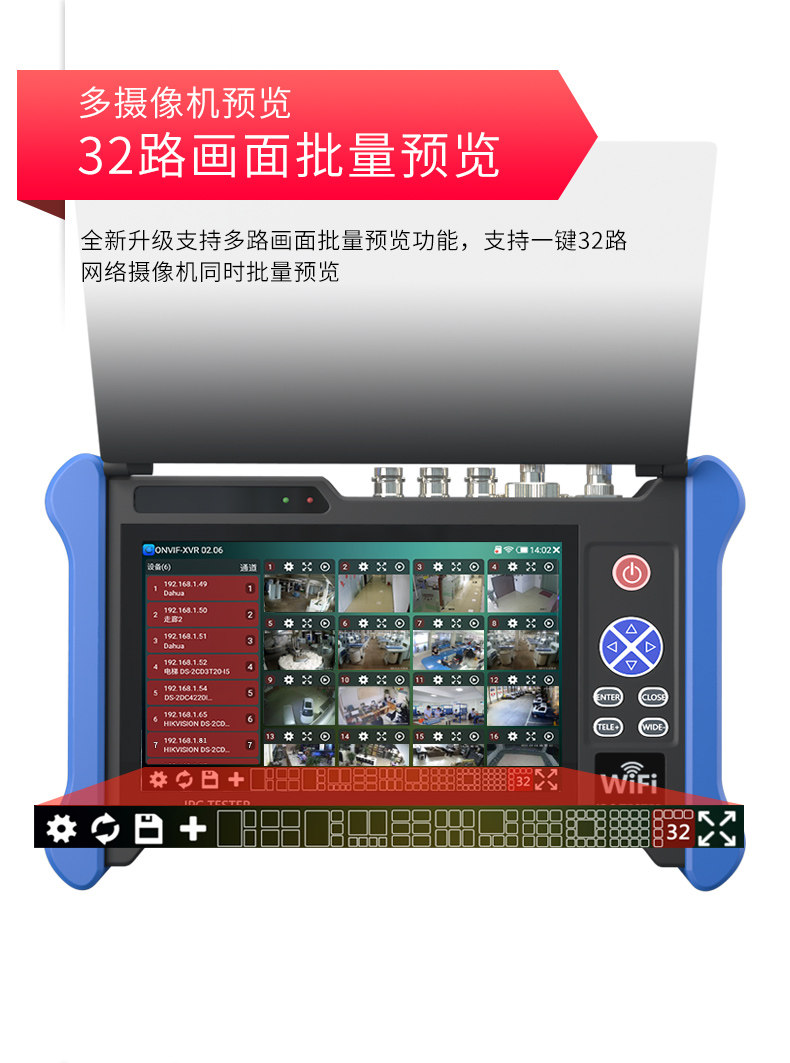

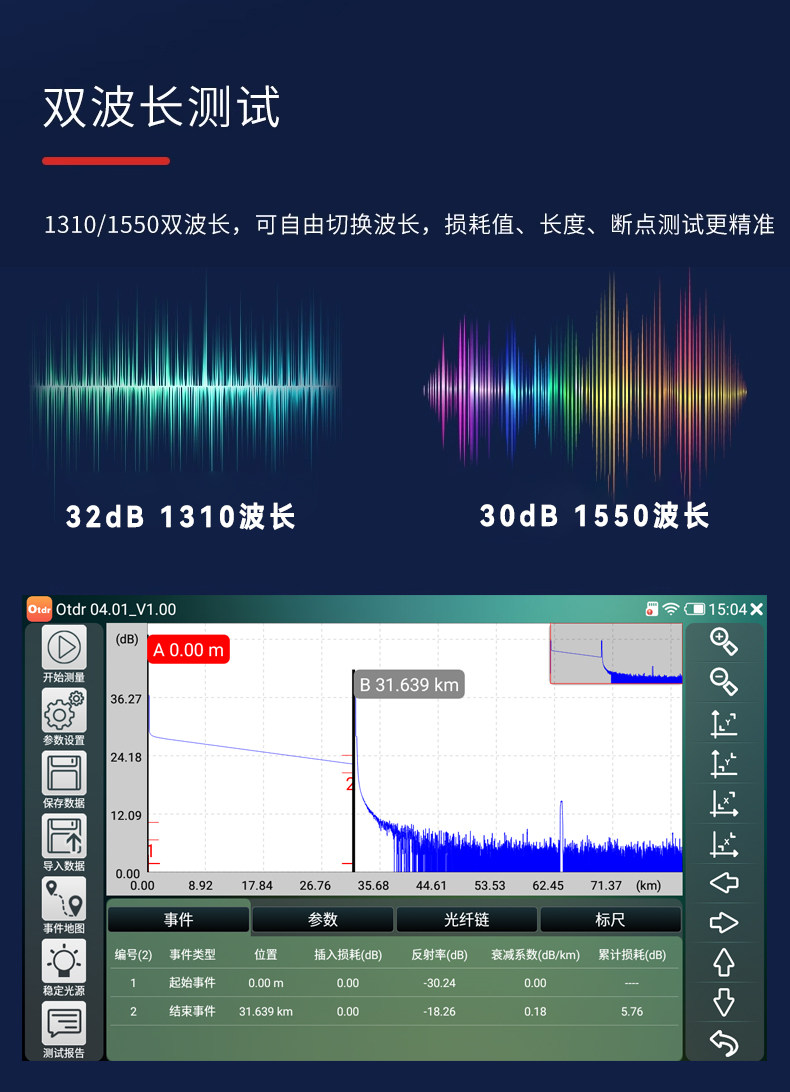

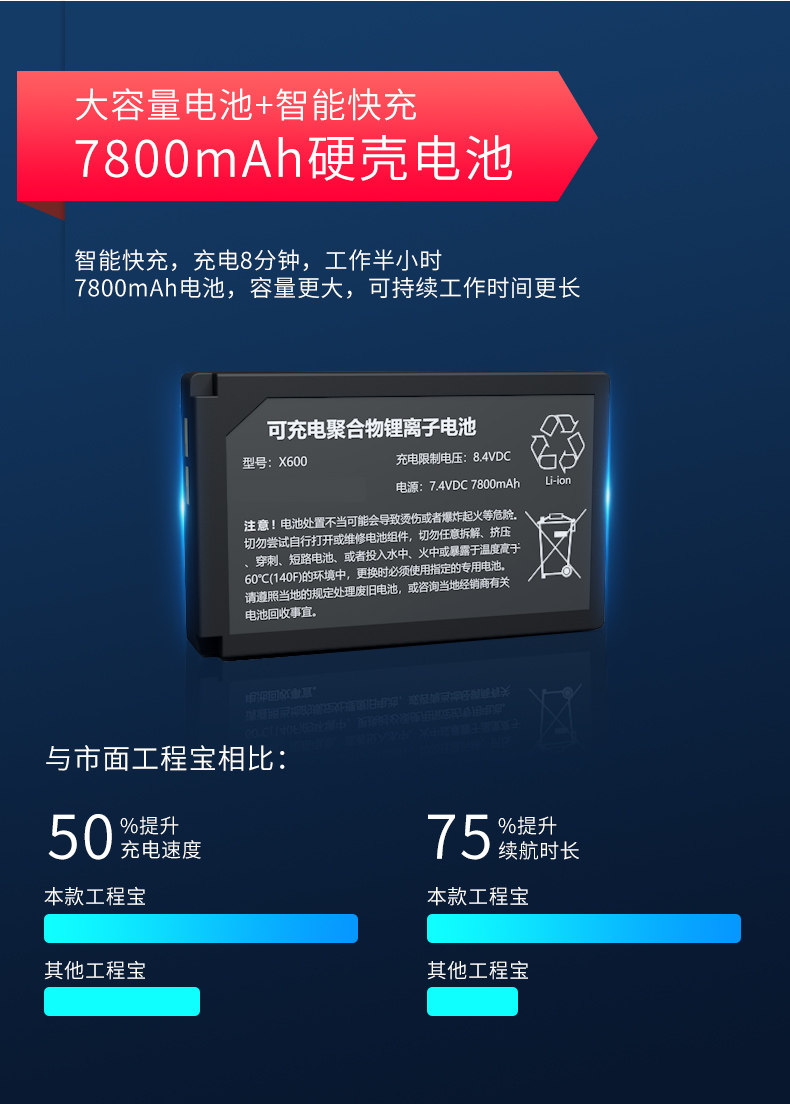

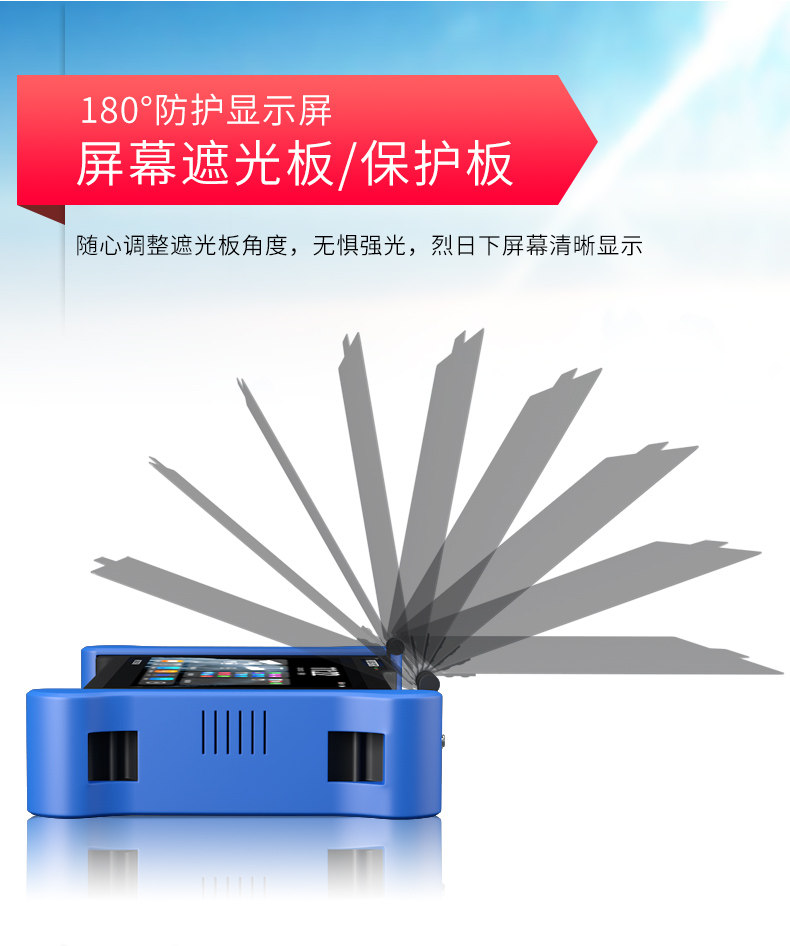

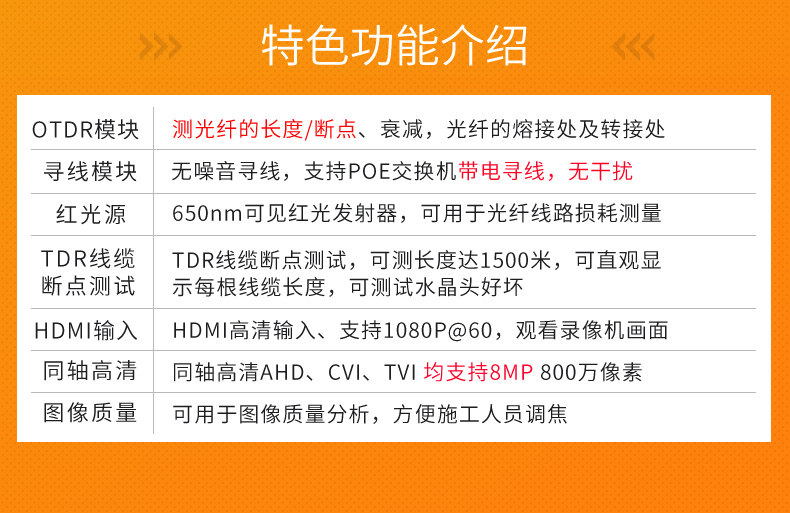

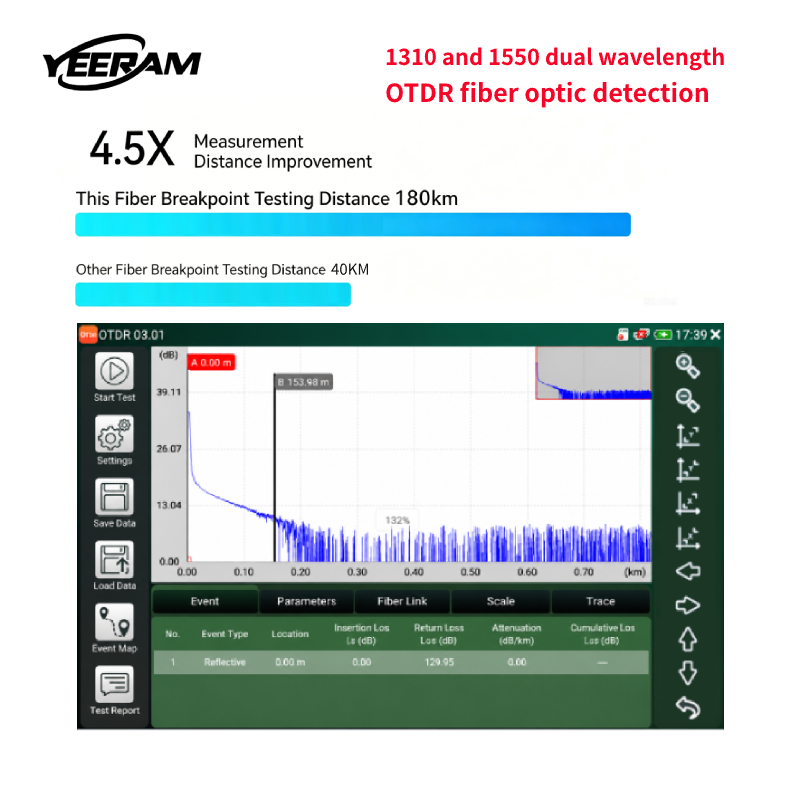

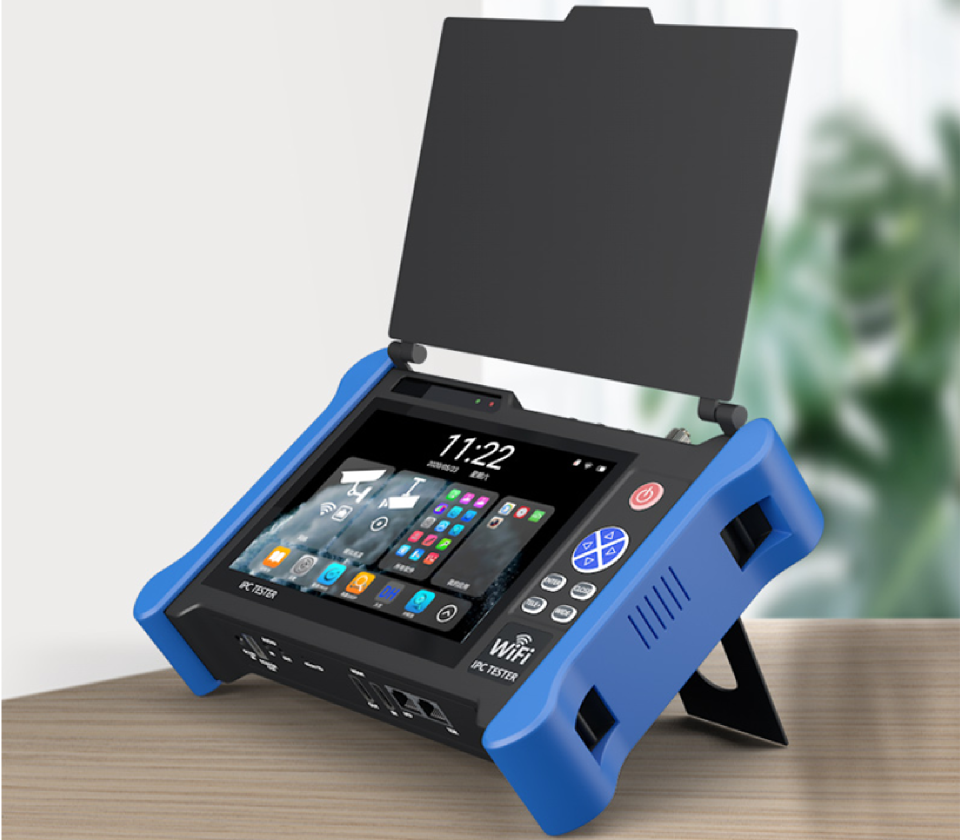

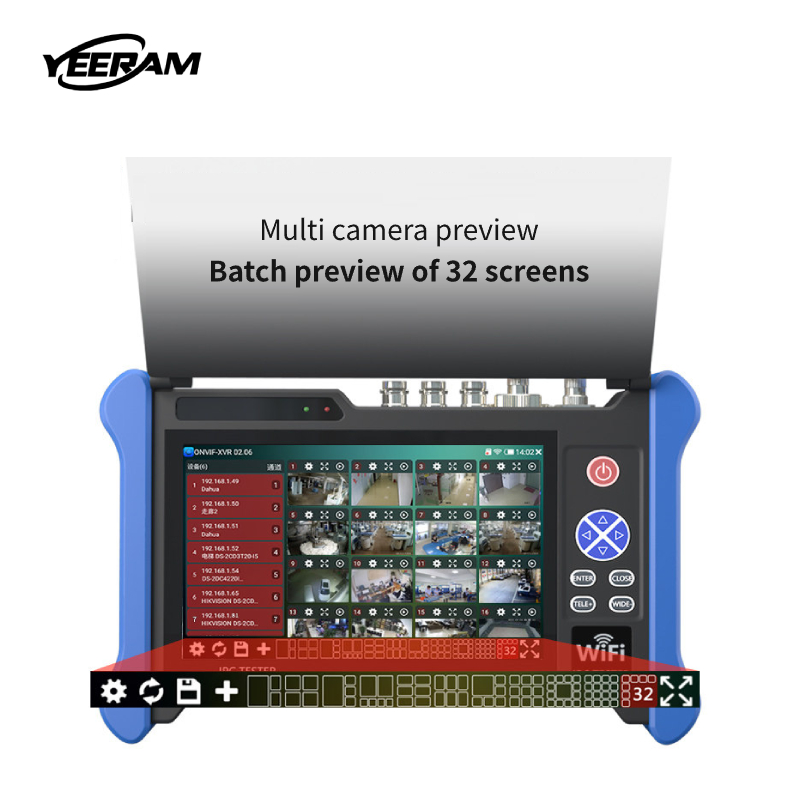

● OTDR fiber test: 1310/1550nm, 32dB dynamic range (1310nm), up to 150km range. Measures length, breakpoint, attenuation, splice loss. Event map, curve view, report export. ● 7" IPS touchscreen + 7800mAh hard‑case battery, 180° sunshade. ● 6K (12MP) H.265/H.264 decoding, ONVIF full‑segment blind scan, one‑click video. ● Supports 100+ brands (Hikvision, Dahua, etc.). Batch activation/IP/channel name change. ● Dual Gigabit ports, fast ONVIF tool, 32‑channel batch preview. ● HD‑CCTV 4.0: auto detects TVI/CVI/AHD up to 8MP (3840×2160) & CVBS. ● TDR breakpoint test: 1500m range for network/coax/telephone/AVVR/RVVP cables, shows per‑core length. ● 60V anti‑burn digital tracing: live PoE tracing (60V withstand), noiseless, shows wiremap & RJ45 faults. ● Wiremap test with built‑in diagram, identifies straight/cross/open/faulty pins. ● Rich ports: dual Gigabit, two DC12V 3A, PoE/PSE, HDMI in/out, TDR, tracing, OTDR (FC/SC swappable), red light, RS485, SD, USB, audio, etc.

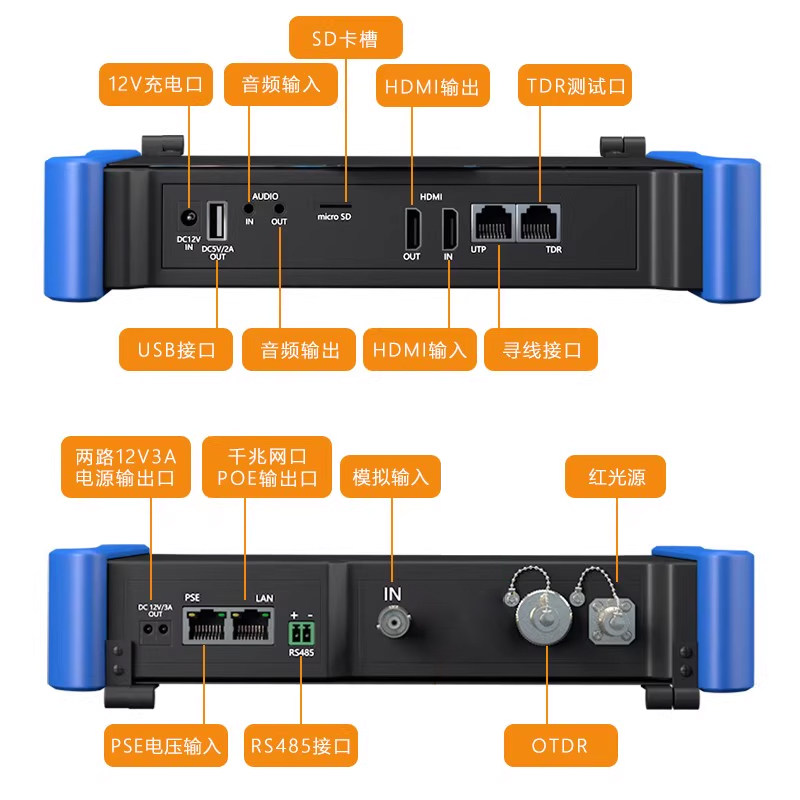

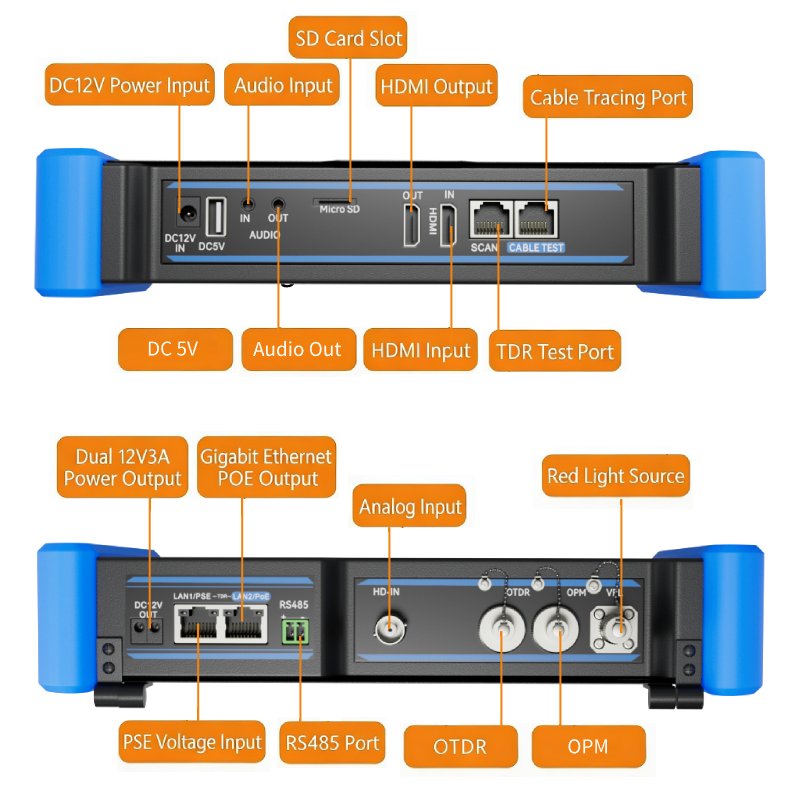

interface:
OPM
RS485 Interface
PSE Voltage Input
Industrial Surveillance
Analog Input and Output
OTDR
VFL Red Light Source
Audio IN and OUT
Gigabit Ethernet PoE Output
Dual DC12V/3A Output
12V Charging Port
USB
TDR Test Port
micro SD
Cable Tracing Interface
HDMI IN and OUT
Product Attributes
Brand
YEEARM
Origin
Own factory is located in Guangzhou, Guangdong Province, China
MOQ
1

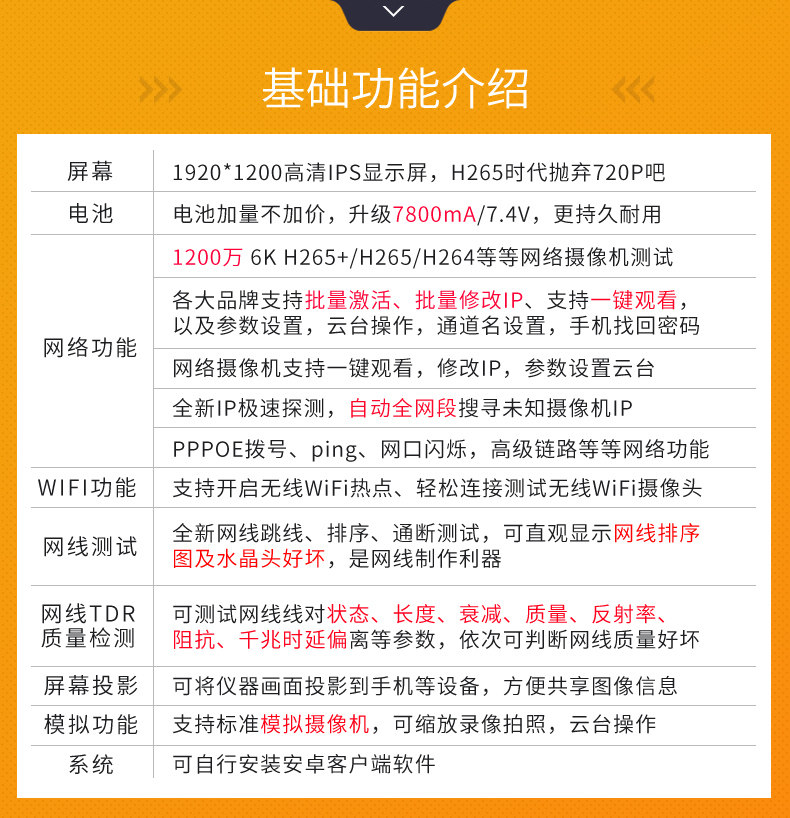

Technical Specifications
Parameter
Details
Display Screen
7-inch HD screen, resolution 1920×1200
Adaptive Gigabit Ethernet Port
Gigabit Ethernet Port, 10/100/1000M Auto-adapt
Battery Information
Built-in Integrated Battery Pack 2600mAh + Smart Fast Charging
Hardware Decoding, Supports up to 8K Resolution, Can Test 12 Megapixel Cameras
Network Camera Testing
Full Smart One-Key Test: Automatically Searches for IP, Auto-Login, Instant Image Display
Ethernet Testing
Dual-channel 10/100/1000M Ethernet link status test, Ethernet traffic detection
IP Full Auto Blind Scan
Automatically Scans All IP Addresses in the Network Segment, Automatically Jumps to Video Playback – Saves Time and Effort
Auto-Matching IP Segment
Test Monitor IP Automatically Matches the Camera's Network Segment

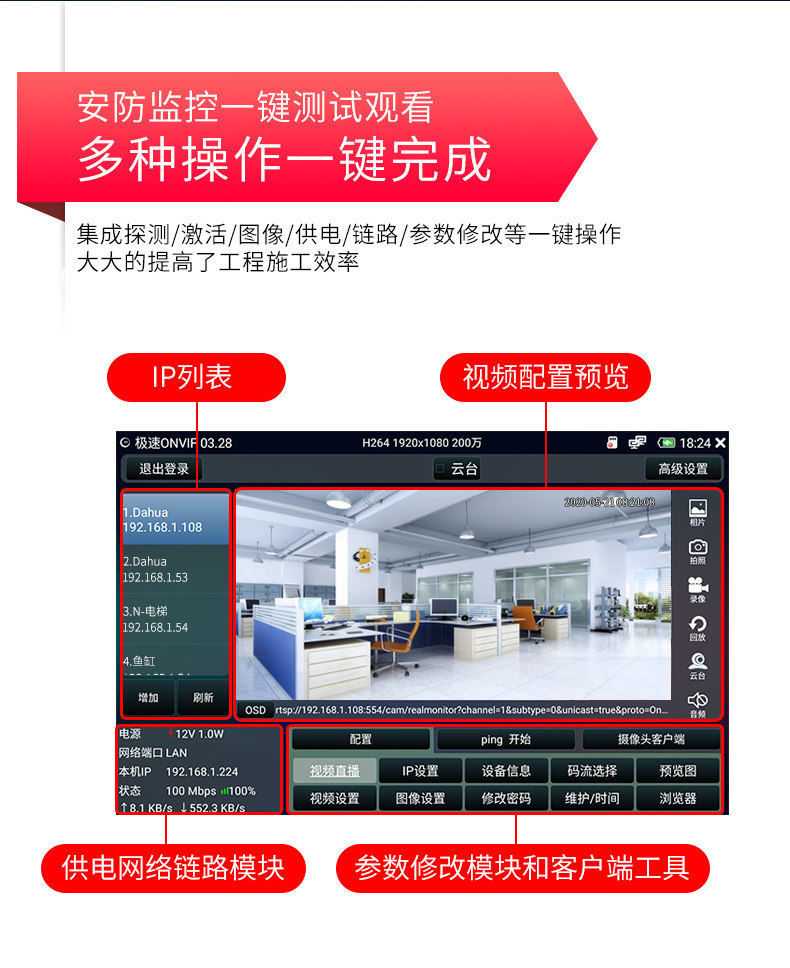

Fast ONVIF Tool
Auto-Login, Auto-Play, Modify IP Address/Channel Name, Generate Test Reports, etc.

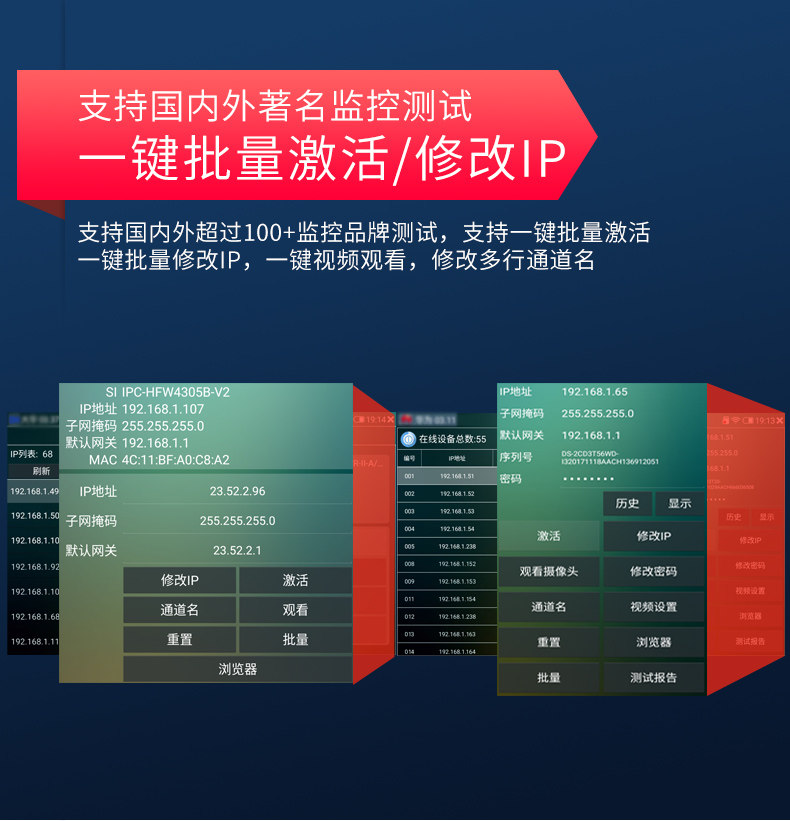

Major Surveillance Brand Testing Tools

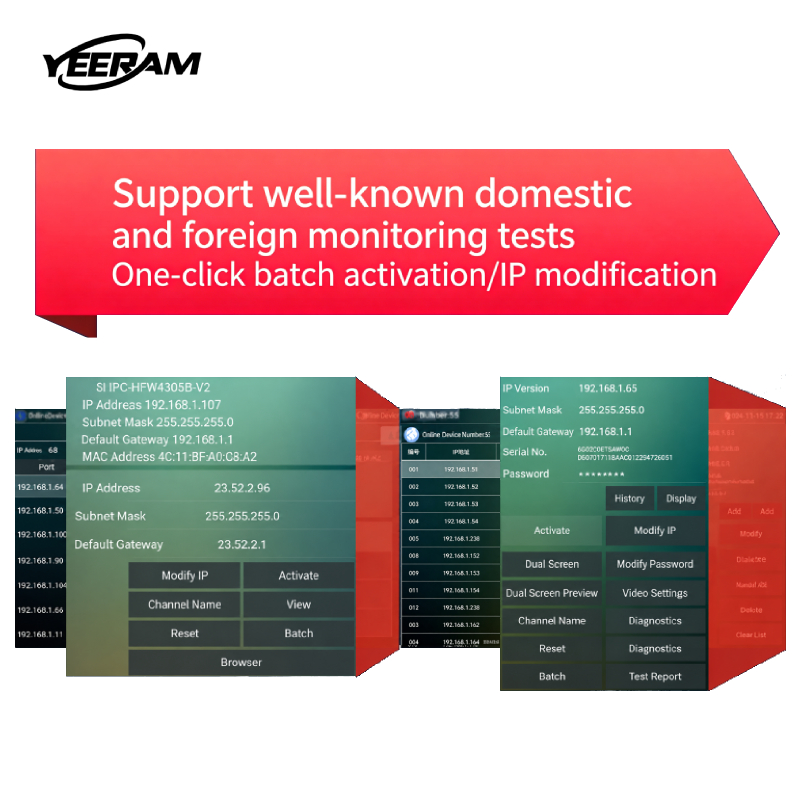

Batch Activation and Batch IP Modification for Major Surveillance Brands, Customize Channel Names, Modify Usernames, Passwords and Other Parameters. Customization Available for Other Brands
Advanced Link Monitoring
Supports Ethernet Statistics, Loopback, Network Loop Testing, etc.
Advanced Network Tools (Pro Edition)
Ping Test, IP Scan, Port Blink, PPPoE Dial Test, DHCP, MAC Address Query, Socket Debugging, DNS Optimization, Port Scan, etc.
Lens Simulation
Simulates Lens Viewing Area for 2.8/3.6/4/6/8/12/16/25mm Lenses
Focus Information Testing
Camera Focus Information, Transmission Signal Quality, Image Quality Testing
Camera Power Supply
Standard PoE/PoE+ Ethernet power supply, DC12V, DC5V/2A output
One HDMI Input, Supports 4K Resolution, Audio and Video Synchronization
Virtual IPC Image Testing
Virtual Camera Function: Add the Test Monitor's IP to an NVR to Test Channel Conditions
Video Image Zoom
Supports Video Zoom, IP Camera Image Zoom and Pan
Image Management
Supports Video Image Zoom, Camera Photo Capture, Video Recording, PTZ Control, etc.
PoE Power Testing
PoE/PoE+ IEEE802.3bt standard PoE power supply protocol, can display load status
Audio Testing
One Audio Input: Tests Audio Functionality and Supports Recording
Built-in Storage Capacity
8GB Built-in Storage – Supports Temporary Recording, Screenshot Saving, Test Report Storage, etc.
New Feature: Professional Enhanced Wi-Fi Analysis
Analyzes Nearby Wi-Fi Signal Strength and Channel Stability, Checks Wi-Fi Encryption Method, Speed, MAC Address, NIC Manufacturer Info, Generates Printable Reports
New Feature: Smart Screen Share
No Software Installation Required – Share the Test Monitor Screen with a Mobile Phone, Allowing Customers to See the Image Intuitively
New Feature: Smart AI IPC Tool One-Key Test
Integrates Network Camera Testing Steps: Power Supply, IP Detection, Video Viewing, Activation, Link Status – All in One. Achieves One-Key Completion of Network Camera Testing
New Feature: Security Tools
Helps Calculate Recording Capacity, Camera Focal Length, Bandwidth, etc.
New Feature: Virtual Network Monitoring
Virtualizes the Test Monitor as an IP Camera to Analyze NVR and Cable Issues
New Feature: RJ45 Connector Fault Location
Visually Displays Which Core of the RJ45 Connector is Faulty – Either on the Main Unit or the Remote Tester
Digital Anti-Burn Cable Tracing Function
Supports cable tracing and wiring sequence testing; Supports PoE live cable tracing, anti-burn withstand voltage up to 60V; Digital signal cable tracing, no noise, anti-interference.
Gigabit SFP Test
Supports SFP optical module insertion for fiber optic network communication testing [NEW]
4K HDMI Input
Debug DVR/NVR recorders and other devices, supports up to 4K resolution video and audio input
