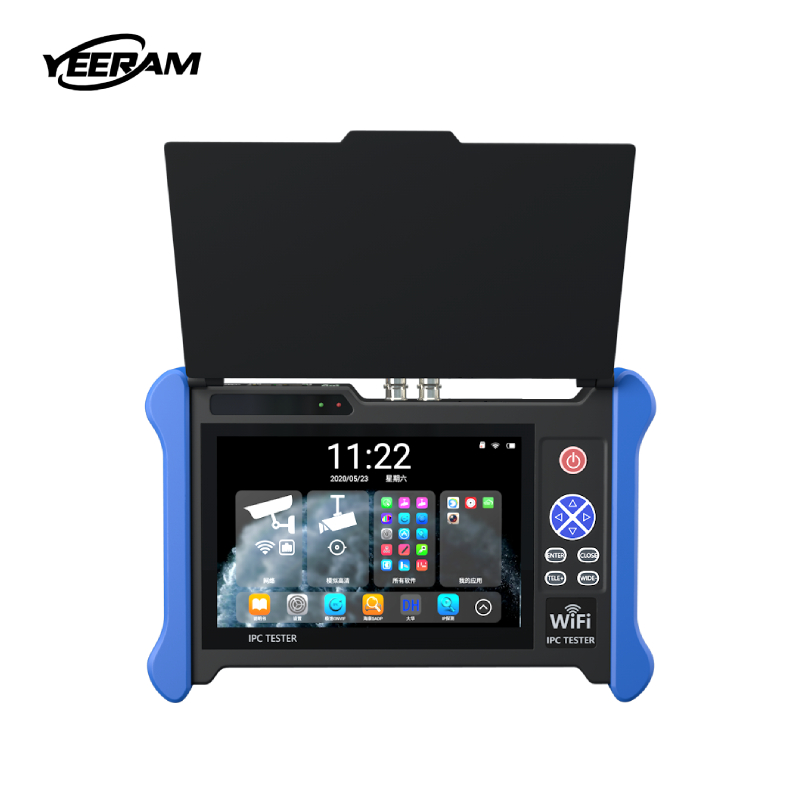

| Display Screen | 7-inch HD screen, resolution 1920×1200 |
| Adaptive Gigabit Ethernet Port | Gigabit Ethernet Port, 10/100/1000M Auto-adapt |
| Battery Information | Built-in Integrated Battery Pack 2600mAh + Smart Fast Charging |
| Enhanced Wi-Fi | Built-in Wireless Wi-Fi, 150Mbps Speed, Supports Wireless Network Camera Testing & Wireless Connection |
| H.265/H.265+ Main Stream Testing | Hardware Decoding, Supports up to 8K Resolution, Can Test 12 Megapixel Cameras |
| Network Camera Testing | Full Smart One-Key Test: Automatically Searches for IP, Auto-Login, Instant Image Display |
| Ethernet Testing | Dual-channel 10/100/1000M Ethernet link status test, Ethernet traffic detection |
| IP Full Auto Blind Scan | Automatically Scans All IP Addresses in the Network Segment, Automatically Jumps to Video Playback – Saves Time and Effort |
| Auto-Matching IP Segment | Test Monitor IP Automatically Matches the Camera's Network Segment |

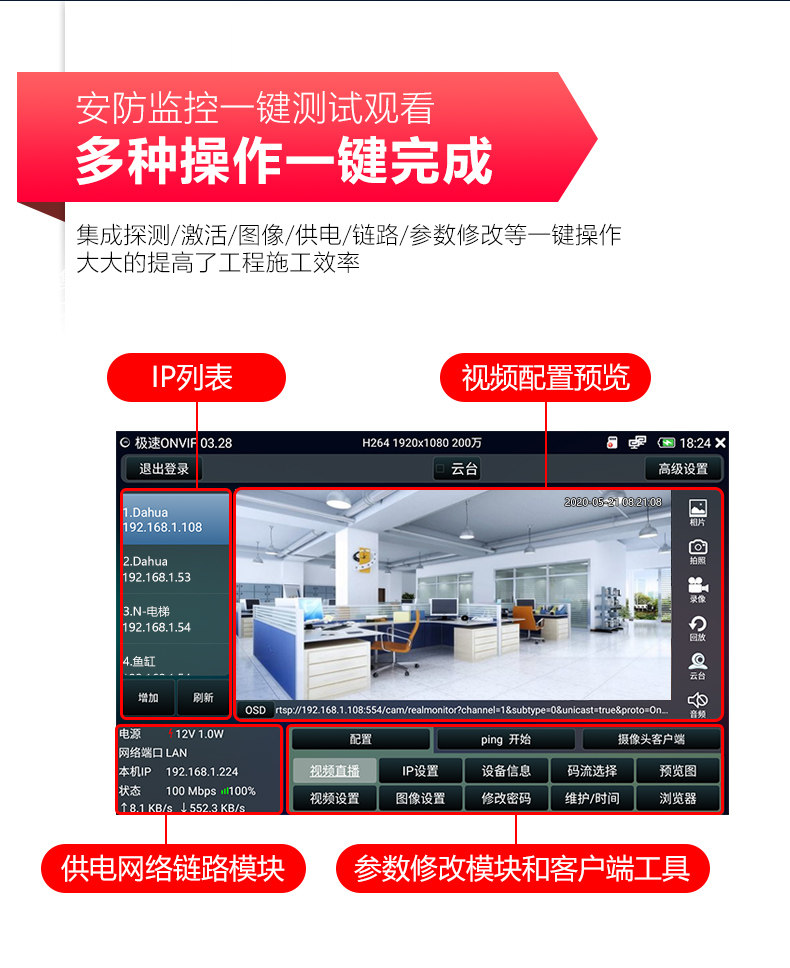

| Fast ONVIF Tool | Auto-Login, Auto-Play, Modify IP Address/Channel Name, Generate Test Reports, etc. |

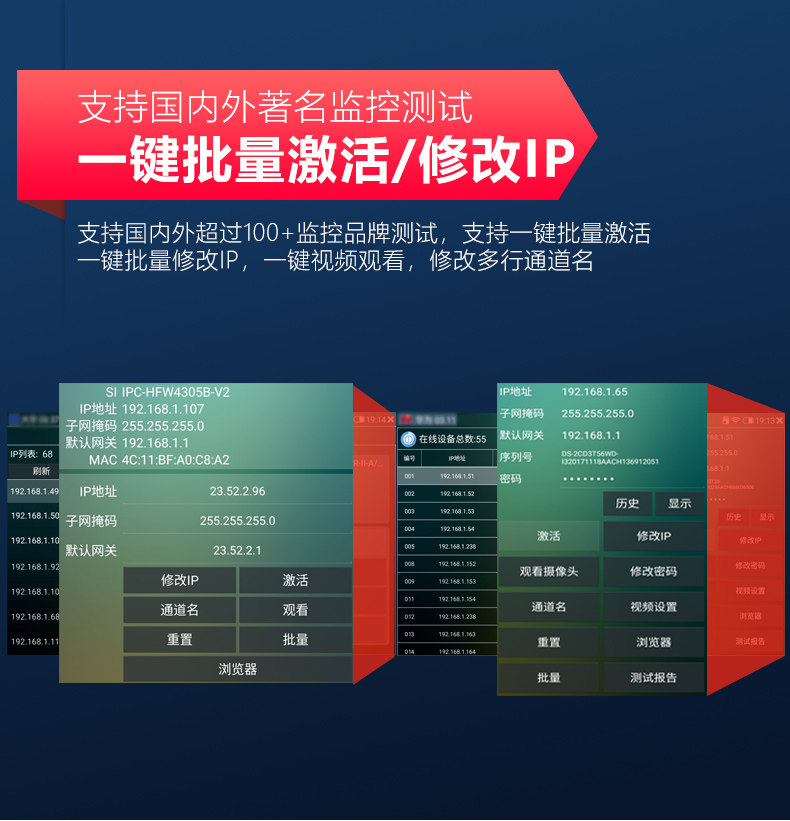

| Major Surveillance Brand Testing Tools | Batch Activation and Batch IP Modification for Major Surveillance Brands, Customize Channel Names, Modify Usernames, Passwords and Other Parameters. Customization Available for Other Brands |
| Advanced Link Monitoring | Supports Ethernet Statistics, Loopback, Network Loop Testing, etc. |
| Advanced Network Tools (Pro Edition) | Ping Test, IP Scan, Port Blink, PPPoE Dial Test, DHCP, MAC Address Query, Socket Debugging, DNS Optimization, Port Scan, etc. |
| Lens Simulation | Simulates Lens Viewing Area for 2.8/3.6/4/6/8/12/16/25mm Lenses |
| Focus Information Testing | Camera Focus Information, Transmission Signal Quality, Image Quality Testing |

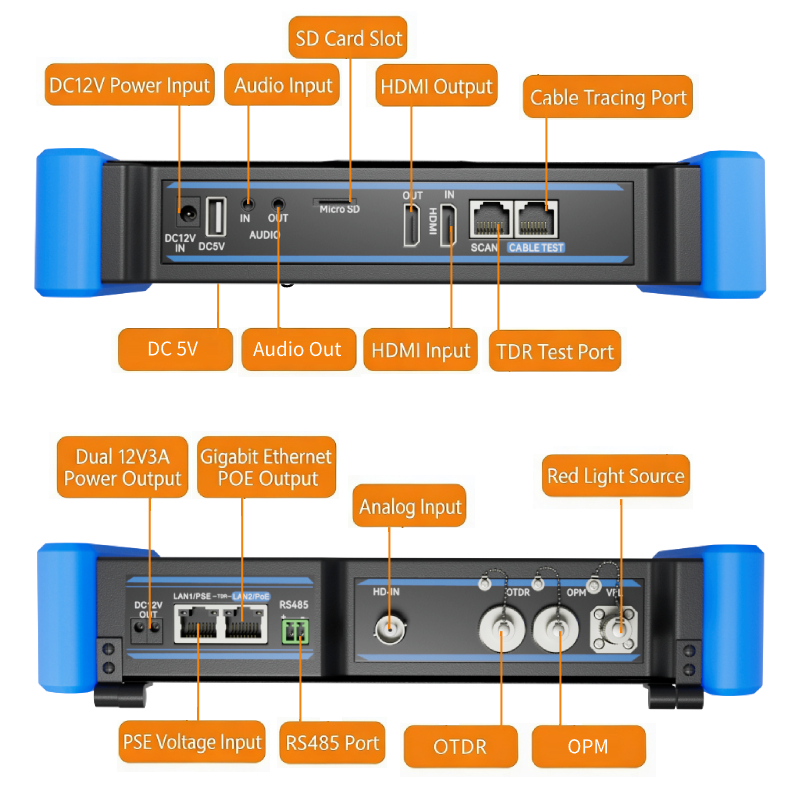

| Camera Power Supply | Standard PoE/PoE+ Ethernet power supply, DC12V, DC5V/2A output |
| Cable Wire Sequence Testing | Tests Cable Wire Sequencing & Continuity, RJ45 Connector Crimping Test, Cable Usability, etc. |
| HDMI Input | One HDMI Input, Supports 4K Resolution, Audio and Video Synchronization |
| Virtual IPC Image Testing | Virtual Camera Function: Add the Test Monitor's IP to an NVR to Test Channel Conditions |
| Video Image Zoom | Supports Video Zoom, IP Camera Image Zoom and Pan |
| Image Management | Supports Video Image Zoom, Camera Photo Capture, Video Recording, PTZ Control, etc. |
| PoE Power Testing | PoE/PoE+ IEEE802.3bt standard PoE power supply protocol, can display load status |
| Audio Testing | One Audio Input: Tests Audio Functionality and Supports Recording |
| Built-in Storage Capacity | 8GB Built-in Storage – Supports Temporary Recording, Screenshot Saving, Test Report Storage, etc. |
| New Feature: Professional Enhanced Wi-Fi Analysis | Analyzes Nearby Wi-Fi Signal Strength and Channel Stability, Checks Wi-Fi Encryption Method, Speed, MAC Address, NIC Manufacturer Info, Generates Printable Reports |
| New Feature: Smart Screen Share | No Software Installation Required – Share the Test Monitor Screen with a Mobile Phone, Allowing Customers to See the Image Intuitively |
| New Feature: Smart AI IPC Tool One-Key Test | Integrates Network Camera Testing Steps: Power Supply, IP Detection, Video Viewing, Activation, Link Status – All in One. Achieves One-Key Completion of Network Camera Testing |
| New Feature: Security Tools | Helps Calculate Recording Capacity, Camera Focal Length, Bandwidth, etc. |
| New Feature: Virtual Network Monitoring | Virtualizes the Test Monitor as an IP Camera to Analyze NVR and Cable Issues |
| New Feature: RJ45 Connector Fault Location | Visually Displays Which Core of the RJ45 Connector is Faulty – Either on the Main Unit or the Remote Tester |
| Digital Anti-Burn Cable Tracing Function | Supports cable tracing and wiring sequence testing; Supports PoE live cable tracing, anti-burn withstand voltage up to 60V; Digital signal cable tracing, no noise, anti-interference. |
| Gigabit SFP Test | Supports SFP optical module insertion for fiber optic network communication testing [NEW] |
| 4K HDMI Input | Debug DVR/NVR recorders and other devices, supports up to 4K resolution video and audio input |

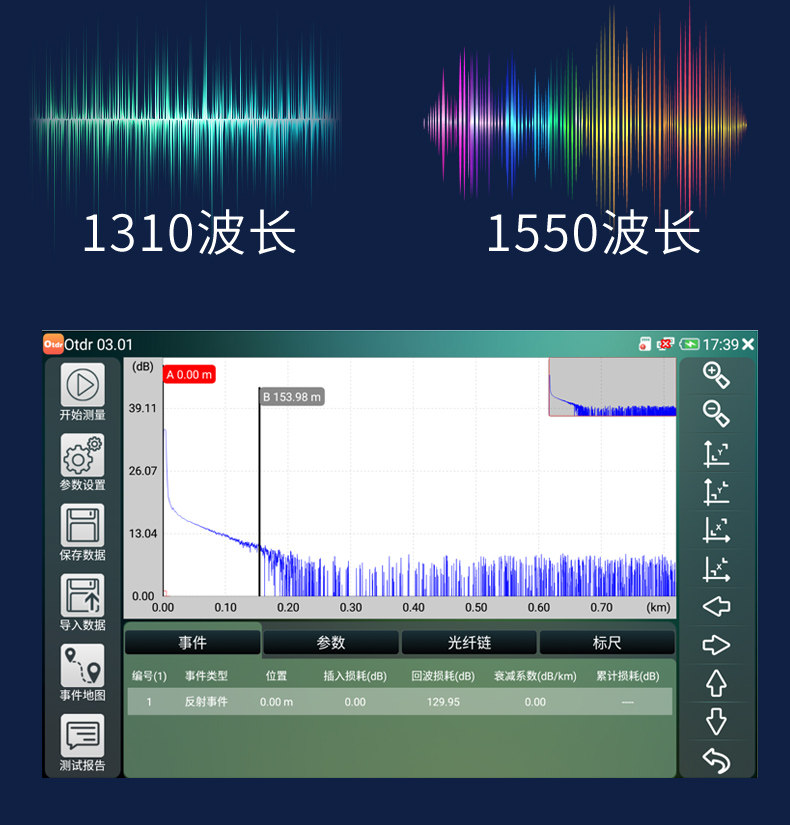

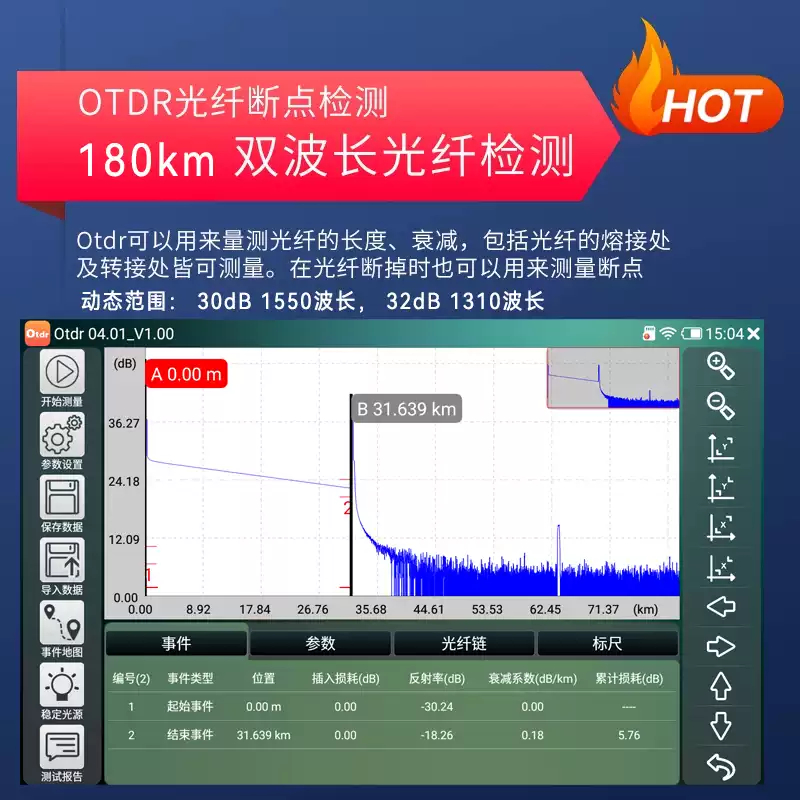

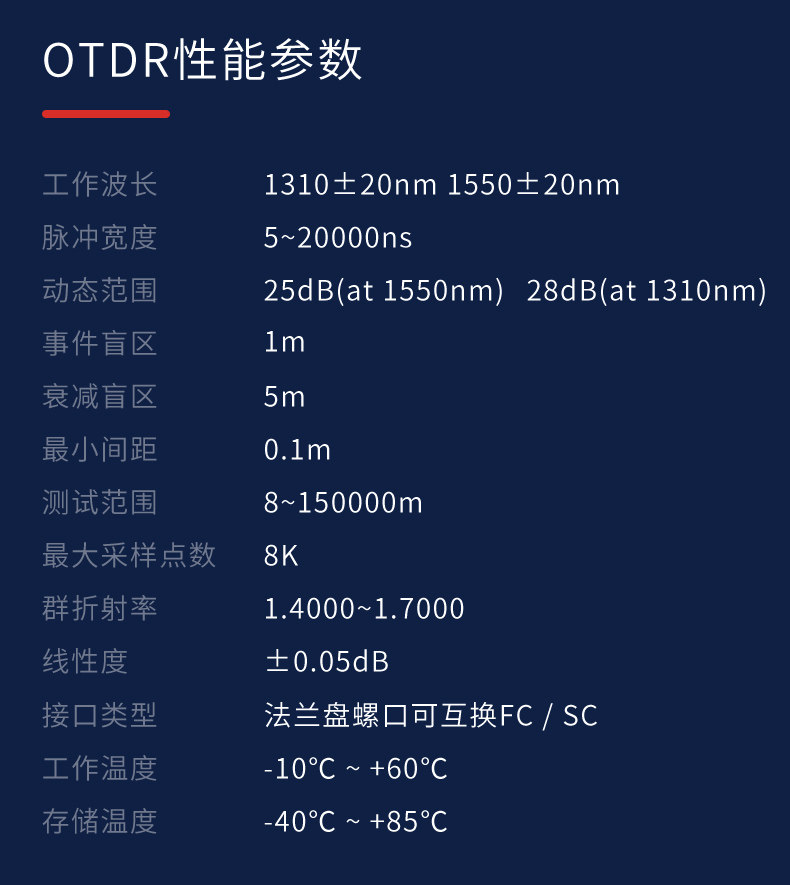

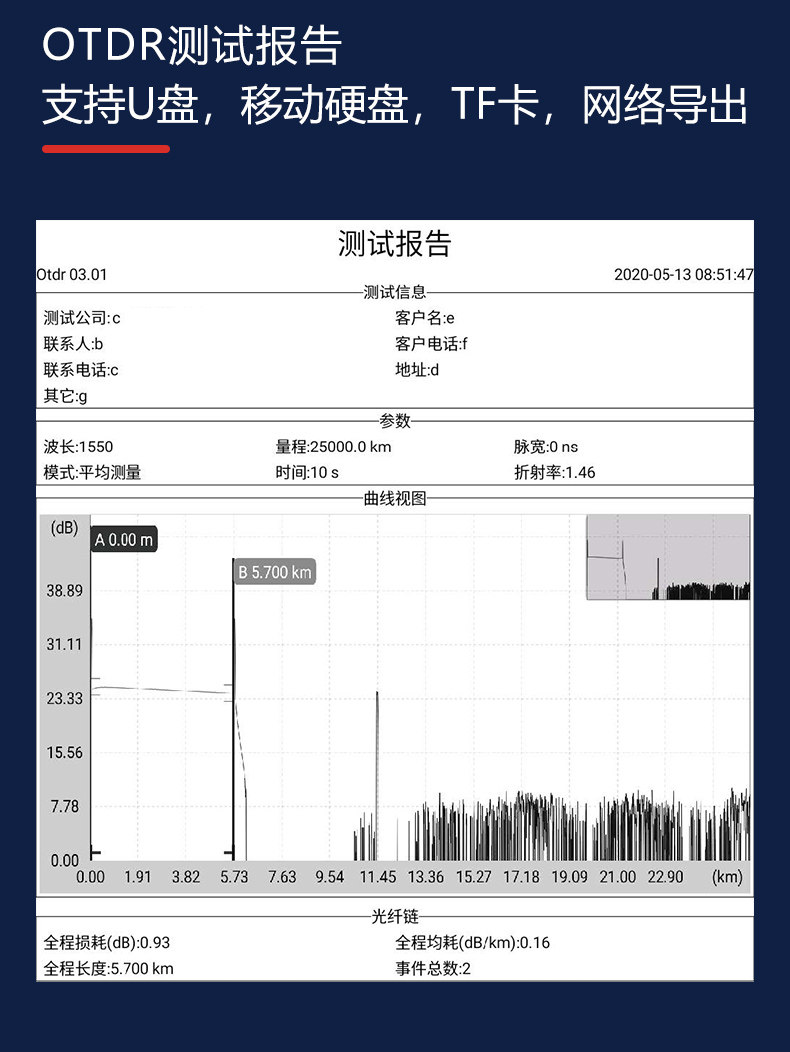

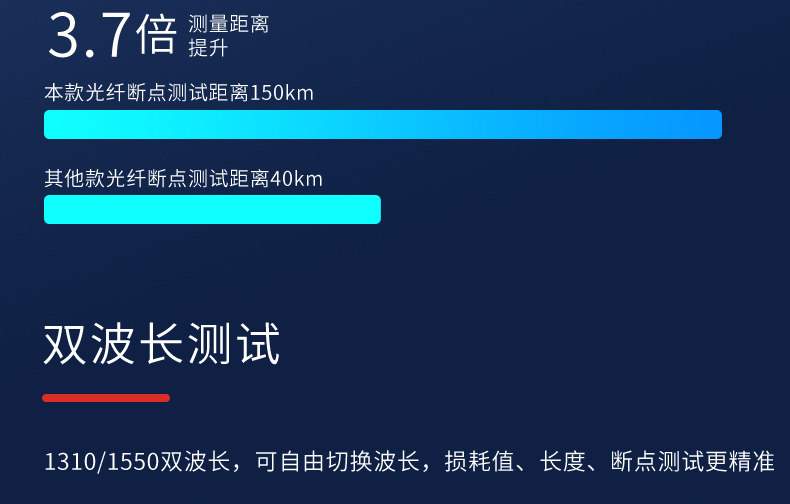

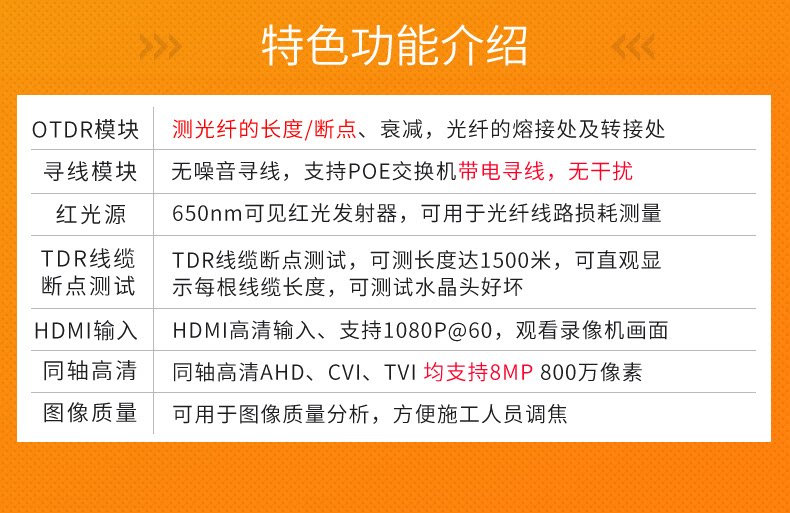

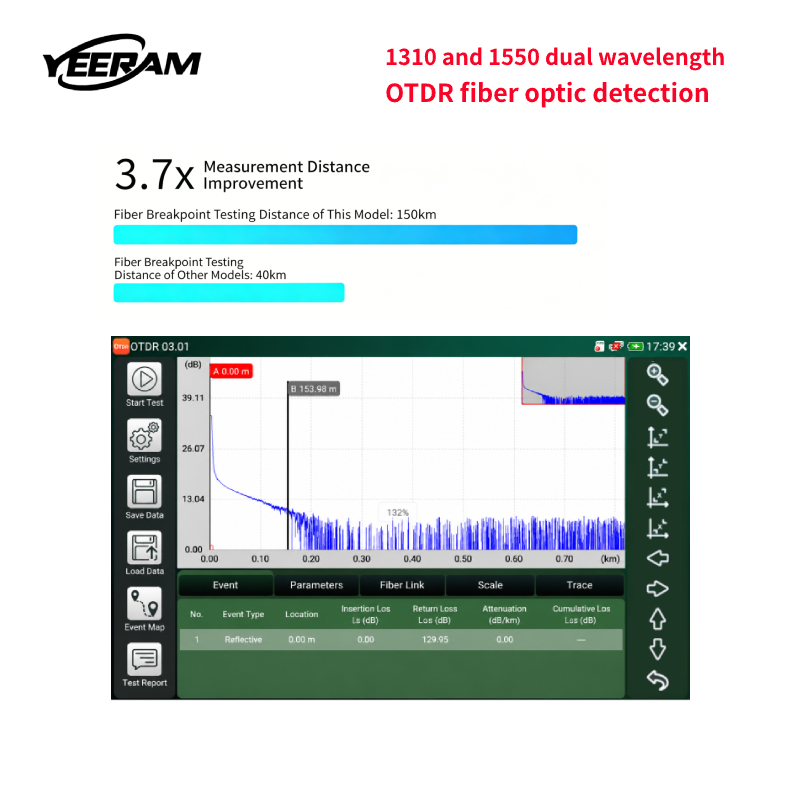

| OTDR Fiber Length & Break Point Test | 150KM (1550nm/1310nm) dual-wavelength fiber optic testing, measures fiber length/break points, attenuation, fiber splice points and connection points, etc. SC-FC convertible screw-type adapter interface |
| VFL Visible Red Light Source Test | Tests for fiber optic line breaks, cracks, bends and other faults |
| Analog Video Color Bar Output Function | Supports loopback test, tests BNC cable continuity |
| EX-SDI 8MP Camera Test | EX-SDI 8MP camera test, view control and menu access |
| OPM Optical Power Meter Test | Supports multiple wavelengths, tests fiber optic attenuation/loss and continuity |
| Digital Multimeter | Digital multimeter, displays both numerical value and dashboard, supports one-click test report generation |
