How to test whether the circuit function of the video recorder is normal?

When the monitoring camera loses its image, there is no signal input, or the image card suddenly appears, how to quickly determine whether it is a problem with the video recorder itself or a fault with the frontend camera, network cable, fiber optic cable, and other circuits is a common problem encountered by many construction workers. Yian Electronic Full Function Security Engineering Treasure provides a one stop detection method, which is the virtual IPC camera function,which can easily diagnose the circuit function of the video recorder. Let's take a detailed look below.

1、 Pain points of traditional testing methods

The traditional way to determine whether the video recorder circuit is normal is for technicians to bring a normal camera to the recorder, directly connect it to the recorder to see if there is an image, or use a network cable tester to test each line one by one, and then use a laptop to scan the IP with software. When encountering fiber optic lines, OTDR equipment needs to be carried separately. Low efficiency and the need to carry multiple tools, making onsite operations cumbersome. In addition, when there is no signal from the video recorder and it is uncertain whether it is a fault with the camera, network cable, or video recorder port, it often takes a lot of time to test them one by one.

2、 Security Engineering Treasure Method - Virtual IPC Function

Yian Electronic Security Monitoring Engineering Treasure provides a very practical virtual IPC camera function. This is the preferred method for testing whether the circuit function of the video recorder is normal.

Operation steps:

①. Set the Engineering Treasure to virtual IPC mode

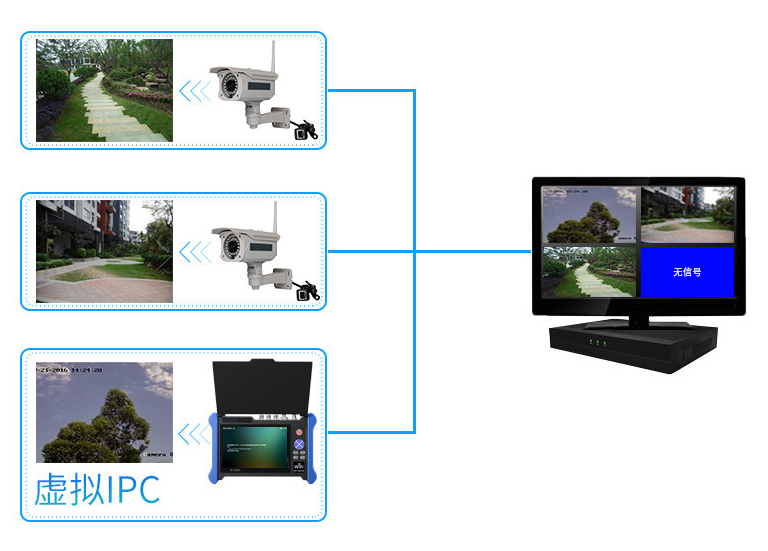

In the main interface of Engineering Treasure, open the "Virtual IPC" function. At this point, Engineering Treasure will simulate a standard network camera (IPC) and output a test image video stream.

②. Connect the Engineering Treasure to the network port or POE port of the video recorder

Connect the LAN port of the Engineering Treasure directly to any camera input port of the video recorder using an Ethernet cable.

③. Perform camera scanning on the video recorder

Enter the "Camera Management" or "Channel Configuration" interface of the video recorder, click "Add" or "Search" for the camera.

④. Observe whether the video recorder can recognize and display images

If the video recorder can search for the IPC simulated by Engineering Treasure normally and play clear test images, it indicates that the network port, decoding function, and recording storage function of the video recorder are all normal. If there is no image on site at this time, the problem is likely to be with the front-end camera or external wiring.

If the video recorder cannot search for or display images, it indicates that there is a fault with the recorder itself (such as network port damage, protocol mismatch, IP address conflict, etc.), and the recorder should be repaired or replaced first.

3、 Testing of auxiliary network cables and fiber optic lines

If the virtual IPC test shows that the recorder is functioning properly, then the problem lies in the wiring or camera. Yian Electronic Engineering Treasure integrates multiple line diagnostic tools, which can further accurately locate.

①. Ethernet cable quality and breakpoint testing (TDR)

Engineering Treasure supports advanced version TDR cable breakpoint testing, with a maximum length of 1500 meters.

Test the quality of crystal heads: visually display the on/off status and sorting of each core wire, and determine whether the crystal head crimping is qualified.

Length measurement and breakpoint: It can measure the precise length of the network cable and locate the breakpoint position (accurate to meters).

Quality assessment: Analyze the attenuation, reflectivity, impedance, gigabit delay deviation and other parameters of the network cable to determine whether the network cable meets the standards.

②. Line finding function (supports POE live line finding)

Engineering Treasure has a built-in noise free line finding module, which can accurately find the target network cable even when the POE switch is powered on, without interference. This is very practical for scenarios where the cables in the computer room are messy and a certain route needs to be quickly located.

③. Fiber optic line testing (OTDR+red light source)

For scenarios involving long-distance or fiber optic transmission:

OTDR module: capable of measuring the length, breakpoint, attenuation, as well as losses at fusion points and adapters of optical fibers, with a dynamic range of up to 32dB.

Red light source: 650nm visible red light, which can directly check whether there are obvious breakpoints or excessive bends in the fiber, assisting OTDR in rapid positioning.

④. Coaxial high-definition and analog line testing

If using coaxial high-definition cameras (AHD/CVI/TVI), Engineering Treasure supports 8-megapixel coaxial high-definition input testing, which can be directly connected to the coaxial line to observe whether the image is normal and quickly distinguish whether it is a cable problem or a camera problem.

4、 Why recommend Yian Electronic Engineering Treasure?

The IPCX600Pro series engineering treasure from Yian Electronics is designed specifically for security construction and maintenance scenarios, integrating over dozens of practical functions. With just one device, it can complete comprehensive testing from front-end to back-end, from network cables to fiber optics, and from simulation to network.

In response to the requirement of "testing the circuit function of video recorders", its core advantages lie in:

• Virtual IPC: Quickly troubleshoot the recorder's own faults to avoid misjudgment.

• TDR Ethernet Cable Break Test: Accurately locate cable faults and save troubleshooting time.

• POE live line finding: no shutdown, no interference, easy line finding.

• OTDR+red light source: one-stop diagnosis of fiber optic faults.

• Coaxial high-definition and analog testing: compatible with various old and new systems.

In addition, it also supports powerful features such as H.265/H.264 main stream testing, batch IP changing, WiFi analysis, POE power output, HDMI input, etc.
