Principle of IP automatic detection for security engineering Baoce camera

In the installation and maintenance of security monitoring, there are often cameras and computers that are not on the same network segment. It is necessary to manually modify the IP address. Intelligent testing tools such as Yian Engineering Treasure are equipped with the "automatic blind probing" technology for all network segment IP addresses, which simplifies the testing process directly and allows for one click batch modification of IP addresses.

So,What is the automatic detection principle of Engineering Treasure? The editor will take you to a detailed understanding of the unique advantages of Yian Engineering Treasure in monitoring and testing.

1、 Camera IP detection

Each network camera has an independent IP address, and the testing equipment needs to be in the same network segment as the camera (i.e. the first three segments of the IP address are the same) to establish communication. Security engineers often encounter multiple cameras mixed in different network segments or cameras using unfamiliar static IP addresses. If you try to modify the IP segment one by one, manually modify the local IP, and then ping or log in to the camera brand's dedicated webpage to make changes one by one, the efficiency is extremely low. The IP automatic detection technology of the security monitoring tester (Engineering Treasure) effectively solves this problem and greatly improves efficiency.

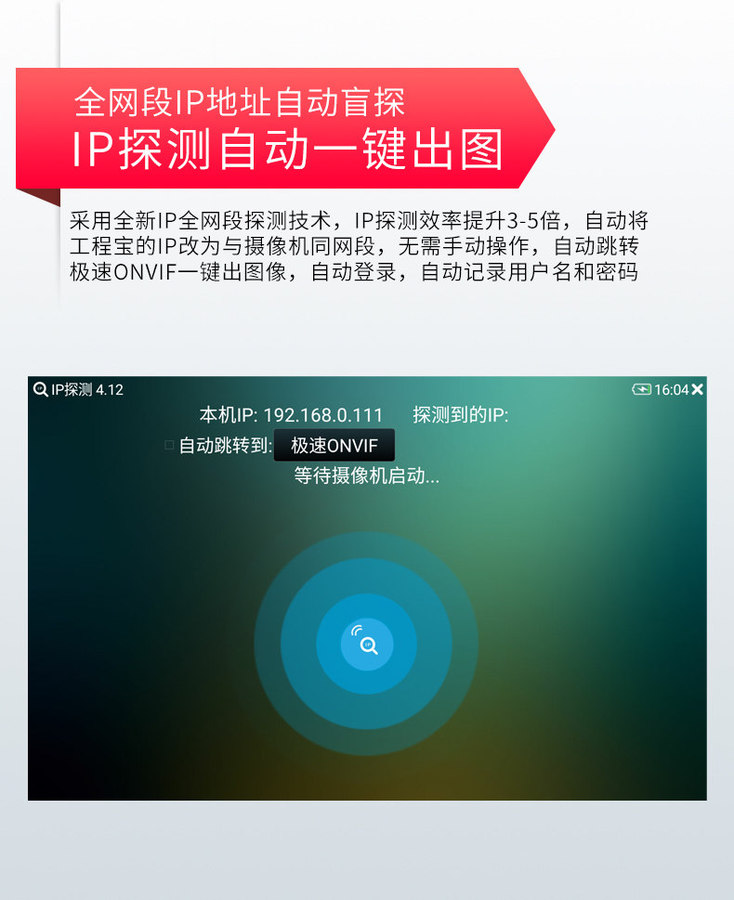

2、 Principle of automatic detection of the entire network segment in Engineering Treasure

The automatic detection technology of Yian Engineering Treasure is not simply Ping scanning, but combines intelligent network segment adaptation and multi protocol concurrent detection, mainly divided into three steps:

① Blind scanning of the entire network segment

Engineering Treasure will sequentially traverse all common private IP network segments (such as 192.168.0. x, 192.168.1. x, 10.00. x, etc.) and send specific probe packets to each IP address. The entire process does not require the user to know the network segment of the camera in advance.

② Intelligent network segment matching and automatic IP modification

Once a response is detected for a certain IP address, Engineering Treasure immediately automatically changes its IP address to the same network segment as the camera, and synchronously configures parameters such as gateway and subnet mask. This process is completely automated, and users do not need to manually set it up.

③ Automatic Jump Speed ONVIF

After detecting the camera IP, Engineering Treasure will directly call the Extreme ONVIF application, automatically log in to the camera (the system will record the last successful login username and password, if not saved, try the common default combination), and pull the video stream. From detection to image generation, achieve one click completion.

It's not an exaggeration to say that using Yian's Engineering Treasure can increase efficiency by 3-5 times compared to traditional manual detection.

3、 Advantages of Yian Engineering Treasure Testing Camera

In addition to completing automatic IP detection, Engineering Treasure can also help simplify a large number of testing processes in the future. Some of its functional advantages are as follows:

①. One click batch activation and IP modification

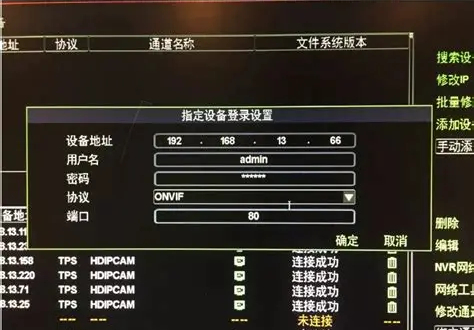

For newly installed cameras, it is often necessary to first "activate" and set a unified IP address. Yian Engineering Treasure supports over 100 monitoring brands, allowing for one click batch activation, batch IP modification, and even simultaneous modification of multiple channel names. From the picture, it can be seen that the device list clearly displays the IP address MAC、 Engineers can select multiple devices and uniformly modify parameters such as subnet masks and default gateways based on serial numbers and other information.

②. Rapid image output and multi-channel preview

After detection and connection, Engineering Treasure directly plays the H.264/H.265/MPEG4 main stream, supporting 6K H.265 ultra high definition decoding, bidding farewell to the low image quality of sub stream testing. At the same time, the new 32 channel batch preview function allows one screen to view real-time images from 32 cameras simultaneously, quickly determining whether the lines are normal and whether the images are clear.

③. Integration of auxiliary debugging tools

Focus Test: Real time analysis of image clarity, display focus values, and assist engineers in accurately adjusting lens focal length.

Coaxial HD Test: Supports analog HD formats such as AHD, TVI, CVI, CVBS, etc., with a maximum resolution of 8 million pixels (3840 × 10 ^ 4 pixels) 2160@15fps ）You can directly access the coaxial visual control menu.

HDMI Input/Output: The Engineering Treasure can serve as a small display, allowing for direct debugging of DVR/NVR recorders without the need for an additional monitor.

IP automatic detection helps devices actively, quickly, and intelligently complete network discovery and automatic configuration. During the testing process, Engineering Treasure can achieve a series of operations including batch blind scanning of the entire network segment, automatic matching of network segments, automatic jump to high-speed ONVIF, and automatic recording of login information. For security engineering companies and weak current engineers, it reduces the debugging threshold and saves a lot of on-site time. Welcome to inquire about procurement.
