How to quickly batch test security surveillance cameras

Batch testing cameras is a time-consuming and repetitive task in the construction and maintenance of security monitoring projects. Traditional methods typically require carrying multiple devices such as laptops, PoE switches, multimeters, and line finders, and repeating steps such as "checking IP, changing IP, entering passwords, and viewing images" for each camera being tested. In response to this pain point, Yian Electronics' IPCX Full Function Engineering Treasure provides a direct integrated batch testing solution.

1、 The core difficulty of batch testing

Traditional method: Each camera takes an average of 5 minutes (checking IP, changing IP, logging in, viewing images, recording), coupled with tool switching and on-site walking, resulting in low efficiency.

• IP address inconsistency: The new camera's factory network segment may be different network segments such as 0, 1, 10, etc., which need to be modified and matched one by one.

• Diverse power supply requirements: DC12V, PoE 48V, DC24V and other different power supply methods, limited on-site sockets and adapters.

• Differences in brand agreements: Brands such as Hikvision, Dahua, and Tianshi Tong each have their own private agreements, and common software often encounters situations where they cannot be found or previewed.

• Slow fault location: Issues such as broken cores in network cables and poor contact of crystal heads require specialized tools to troubleshoot one by one.

• Using Engineering Treasure: PoE port for direct power supply and data transmission, automatic IP search, batch IP change, preview screens one by one, and quickly locate fault points through Ethernet testing.

2、 Batch testing approach of Yian Electronic Engineering Treasure

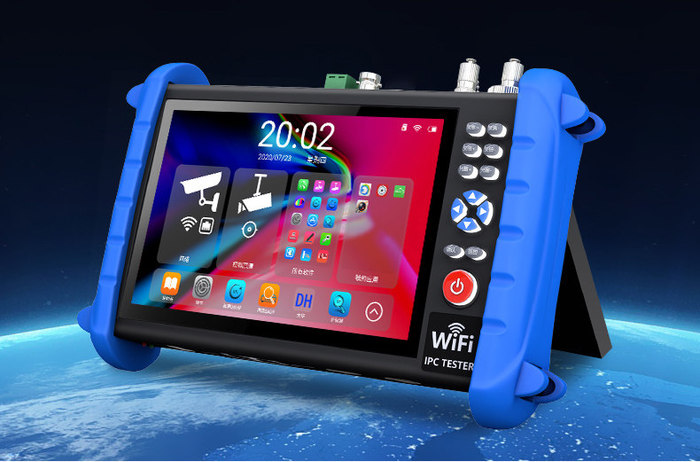

IPCX Engineering Treasure integrates multiple testing tools into a handheld device and automates batch scenarios to reduce repetitive operations.

①. Automatic IP detection and batch modification

Engineering Treasure has a built-in "IP fully automatic blind detection" function. After connecting the camera to the network port or PoE port of Engineering Treasure, the device will automatically scan common network segments such as 0, 1, and 10, list the IP addresses of all online cameras, and automatically match its own IP to the corresponding network segment. Users do not need to manually set the computer network segment.

In terms of batch IP modification, Engineering Treasure has pre installed modules such as Hikvision SADP tool, Dahua batch tool, Huawei testing tool, etc. Operation steps:

• Click on scan to identify all online devices (can display more than 50 at the same time)

• Check the camera that needs to be modified

• Enter starting IP, subnet mask, gateway

• Click on 'Batch modify IP'

The entire process takes about 30 seconds to complete the IP unified planning of dozens of cameras, without the need to log in to the webpage to modify each one.

②. High speed ONVIF compatible with multiple protocols

Engineering Treasure supports the ONVIF standard protocol and is compatible with Hikvision, Dahua, Yushi, Tianshi Tong, Zhongwei, Xiongmai TP-LINK、 Mainstream brands such as Tian Di Weiye. It can automatically attempt default username and password (such as admin/empty), saving the step of manually entering the account.

After opening the "Extreme ONVIF" tool, the device list will automatically refresh, and clicking on any camera will directly play the main stream image. Supports H.265, H.264, and MPEG4 decoding, with a maximum resolution of 8K/12 million pixels. During batch testing, users can quickly preview each screen one by one to check if the images are normal, without the need to repeatedly enter their IP and password.

③. Comes with multiple specifications of power supply, no need for external power supply

Engineering Treasure has a built-in 7800mAh battery, which can be used normally for about 16 hours. Simultaneously providing multiple power output interfaces: DC12V 3A (two channels) DC24V 2A、 DC5V 2A、 Standard PoE 48V

These outputs can meet the power supply needs of most cameras on the market. During on-site testing, there is no need to carry additional power adapters and power strips. One Engineering Treasure can directly supply power to the camera and transmit network data at the same time.

④. Network testing and fault location

After batch wiring, it is often necessary to troubleshoot network cable issues. Yian's fully functional engineering treasure also provides:

• Ethernet cable sequence test: visually display which core of the crystal head is not connected or short circuited, support PoE live testing, anti burn and voltage withstand 60V.

• Ping, IP scanning, port flashing: detect link status, packet loss rate, and latency.

• Optional TDR breakpoint test: measure the breakpoint distance (3-1500 meters) of cables such as Ethernet, coaxial, and telephone lines.

• These functions can help quickly locate whether it is a cable fault or a device fault, avoiding blind replacement of wires.

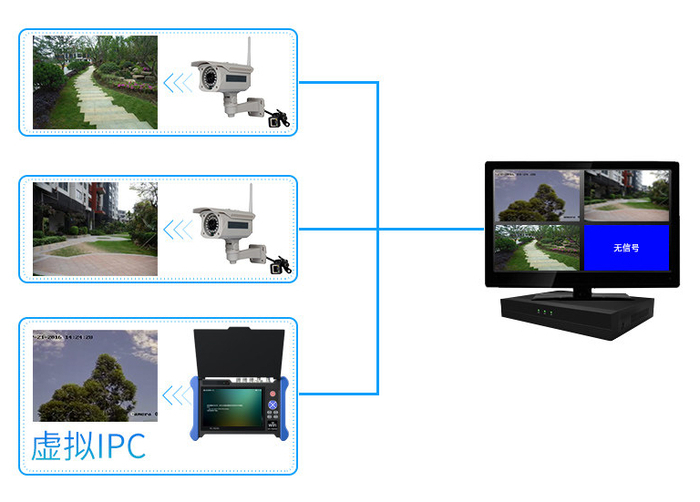

⑤. Video Recorder Diagnosis (Virtual IPC)

Engineering Treasure can be simulated as a network camera and searched by a video recorder (NVR). If the video recorder can detect the Engineering Treasure and display the screen normally, it means that the video recorder and network circuit are normal, and the problem lies in the actual camera; On the contrary, it can quickly locate backend device failures. This feature is very practical for distinguishing the scope of faults in batch testing.

The key to rapid batch testing of security surveillance cameras is to reduce repetitive operations and tool switching. Yian Electronics IPCX Engineering Treasure integrates various functions such as automatic IP detection, batch IP modification, high-speed ONVIF automatic login, multi specification power supply integration, and rapid positioning of network cable faults, consolidating work that was originally scattered on laptops, switches, multimeters, and line finders into one handheld device. For engineers and maintenance personnel who need to frequently debug multiple cameras, this is a more direct and efficient solution.
