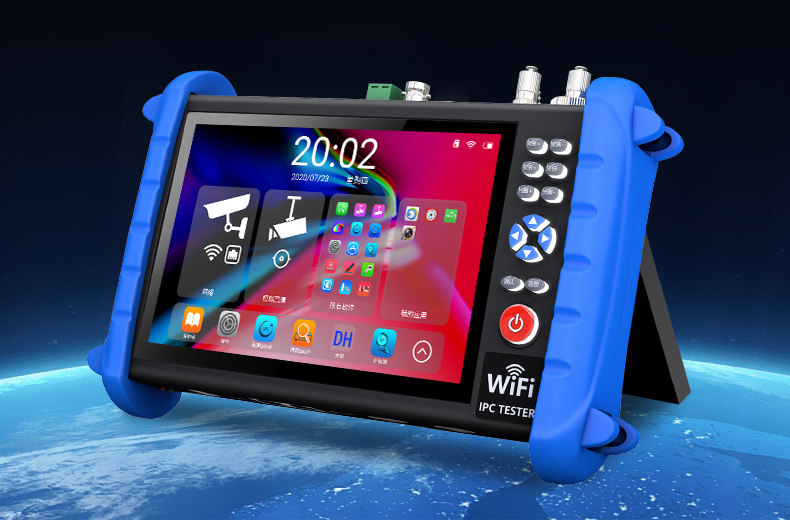

How to quickly batch test and activate surveillance cameras?Issuing time:2026-04-03 00:58 In the construction of surveillance projects, facing numerous surveillance cameras, traditional methods such as testing, activating, modifying IP addresses, and viewing images one by one are not only timeconsuming and inefficient, but also prone to errors. And when you have a monitoring and testing device, Security Engineering Treasure is very convenient. Engineering Treasure can quickly batch test and activate monitoring cameras, making monitoring and construction efficiency soar. Let's take a look at how strong it is with Yian's all-in-one monitoring and testing device.
1、 Pain points of traditional testing and monitoring methods The traditional way of batch testing and activating surveillance cameras mainly relies on laptops, PoE switches, or independent power adapters. During operation, the computer IP needs to be manually modified to match the camera network segment, and then the IP and channel names are discovered, logged in, activated, and modified one by one through manufacturer tools (such as Hikvision SADP) or universal scanning software. Finally, the stream verification images are played one by one. The entire process takes a relatively long average time for each camera, Different brands require switching to different software, power supply relies on external switches or adapters, and it is difficult to obtain power during field operations. Network cable faults need to be checked by a multimeter or line sequencer, and all configuration and IP information can only be manually recorded, which is prone to errors or omissions. The core pain points are extremely low efficiency, inability to operate in bulk, cumbersome network segment matching, inconvenient power supply, time-consuming fault location, and fragmented brand tools, which are difficult to meet the needs of modern security projects. 2、 Batch Solution for Instrument Safety Function Engineering Treasure IPC X provides a complete efficiency toolchain for batch testing and activation scenarios in the Instrument Safety Function Engineering Treasure: ①. Intelligent IPC one click testing - fully automatic batch discovery The intelligent IPC tool built into IPCX integrates steps such as power supply, IP detection, login, activation, image viewing, and link detection into one click operation. You just need to connect the camera to the Engineering Treasure, and it will automatically complete:

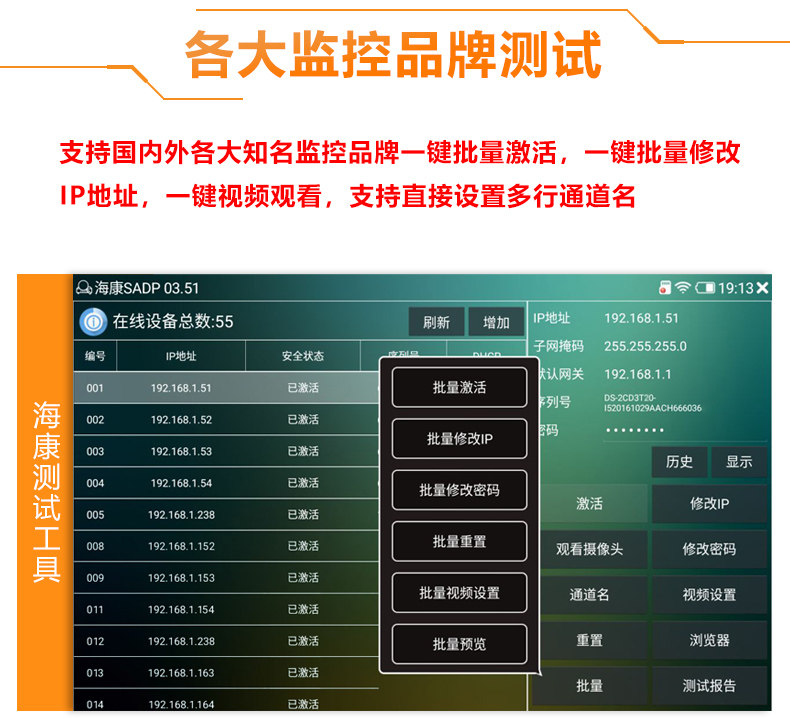

Actual test data: The fastest time for a single camera to access and output images is only 15 seconds. ②. Batch tools for hundreds of brands including Hikvision, Dahua, Huawei, etc IPCX has built-in batch activation and modification tools for major mainstream brands, supporting Hikvision SADP, Dahua, Huawei, Yushi, Zhongwei, Xiongmai, and Tianshi Tong TP-LINK、 The monitoring batch activation, batch IP modification, batch reset, batch preview and other functions of brands such as Tiandi Weiye can process dozens of devices simultaneously, and Yian supports customized tools Taking Hikvision tool as an example, the interface will display the total number of online devices. You can select multiple devices, complete batch activation, batch IP change, batch password setting with one click, and then preview images in batches without switching any software.
③. Ultra fast ONVIF tool - cross brand universal batch If the project mixes cameras from multiple brands, the ONVIF protocol is the common language. IPCX's high-speed ONVIF tool can:
This means that no matter what brand, as long as it supports ONVIF, it can be batch managed in the same interface. ④. IP fully automatic blind probing Another common issue is that the camera and your testing device are not in the same network segment. The fully automatic blind IP detection function of Ergongbao will automatically search for the IP addresses of cameras in the entire network segment and automatically redirect video playback, saving time and effort. There is no need to manually change the IP address. At the same time, the IP address of Ergongbao will also be automatically matched to the camera network segment, bidding farewell to the annoyance of manual configuration. 3、 Supporting capability in batch scenarios 1. Multiple power supply methods During batch testing, power supply is often the bottleneck. Yian's Engineering Treasure can provide a variety of power supply specifications, including standard PoE 48V output, DC12V 3A (two-way), DC24V 2A, DC5V 2A, etc., meeting 99.99% of the power supply needs of cameras on the market, and supporting power bank power supply, making outdoor operations worry free. 2. Super endurance 7800mAh large battery, normal use for 16 hours, supports fast charging - charging for 10 minutes, using for 40 minutes. Batch testing for a whole day without the need to search for sockets midway. 3. Ultra fast ONVIF tool - cross brand universal batch If the project mixes cameras from multiple brands, the ONVIF protocol is the common language. IPCX's high-speed ONVIF tool can: Automatically search for ONVIF devices in the entire network segment Automatically log in and play images Support batch modification of IP addresses and channel names One click generation of test report This means that no matter what brand, as long as it supports ONVIF, it can be batch managed in the same interface. 4、 Applicable population It is recommended that monitoring engineers/weak current construction teams/park property operation and maintenance/security technicians who face a large number of camera installations, debugging or quick troubleshooting of lines and equipment faults every day can be equipped with a monitoring and testing device, Engineering Treasure, which can improve the efficiency of security testing by about 500%, |
