What is Monitoring Tester Engineering Treasure? Full Analysis of the "Handheld Toolbox" for Security Engineers

In the installation, debugging, and maintenance site of security monitoring engineering, the monitoring and testing instrument Engineering Treasure has become an indispensable core tool for security engineers. It integrates more than ten functions such as camera image detection, PTZ pan tilt control, network cable testing, audio testing, fiber optic testing, digital multimeter, etc., achieving a construction experience of "one machine in hand, complete process", completely changing the pain points of low debugging efficiency and cumbersome operation in traditional methods. It is known as the "handheld toolbox" for security engineers.

Guangzhou Yian Electronics Co., Ltd., as a leading manufacturer in the field of video surveillance testing equipment in China, is vigorously promoting the upgrading of security engineering testing tools to intelligence and efficiency through innovative technology and fully functional configuration of its Engineering Treasure products.

The core functions of Engineering Treasure cover six categories, meeting the full scenario requirements of security engineering, mainly including:

1. Full type testing of high-definition cameras

Support full category testing of network cameras, analog cameras, coaxial high-definition cameras, and more. Yian Electronic Engineering Treasure can achieve 6K H265 IPC main stream testing, 1200W pixel high-definition decoding, compatible with mainstream encoding formats, integrated with more than 80 private protocols from brands such as Hikvision, Dahua, and Yushi. It supports batch activation, batch modification of IP addresses and device parameters, and can preview 16 cameras simultaneously. Its IP full network segment ultra fast detection technology can quickly search for unknown camera IPs.

2. Full dimensional line detection

It can complete full parameter detection of network cables, optical fibers, and video cables, including sequence on/off of network cables, TDR breakpoint length testing (up to 1.2km), attenuation/reflectivity/impedance detection of network cables, as well as fiber optic power measurement and 10mW visible red light source fault location, accurately locate line breakpoints, and solve the pain points of traditional line troubleshooting that are time-consuming and laborious.

3. Multi specification power supply and power supply testing

Equipped with 12V/3A, 5V/3A, 24V/1A multi specification DC power output, as well as 48V PoE power supply that complies with the IEEE 802.3af standard, to meet the temporary power supply needs of different devices such as cameras and ball cameras. Simultaneously supporting real-time detection of power supply, voltage, and line sequence, quickly identifying equipment failures or power supply issues.

4. gimbal and control debugging

Support pan tilt up, down, left, and right rotation, lens zoom/focus/aperture adjustment, preset position setting and calling, and ball camera parameter editing. The unique RS485 address scanning function allows for quick and easy access to fast ball addresses without the need to disassemble the device. Yian Engineering Treasure also implements gesture sliding control of the gimbal, making the operation more user-friendly.

5. Fiber optic testing

Fiber optic transmission is the core link of security monitoring systems, and currently OTDR (Optical Time Domain Reflectometer) is one of the core popular functions of Engineering Treasure. Yian Engineering Treasure is equipped with 180km dual wavelength OTDR detection technology, which increases the measurement distance by 4.5 times compared to traditional 40km range equipment, and can cover the fiber optic detection needs of ultra long distance security projects.

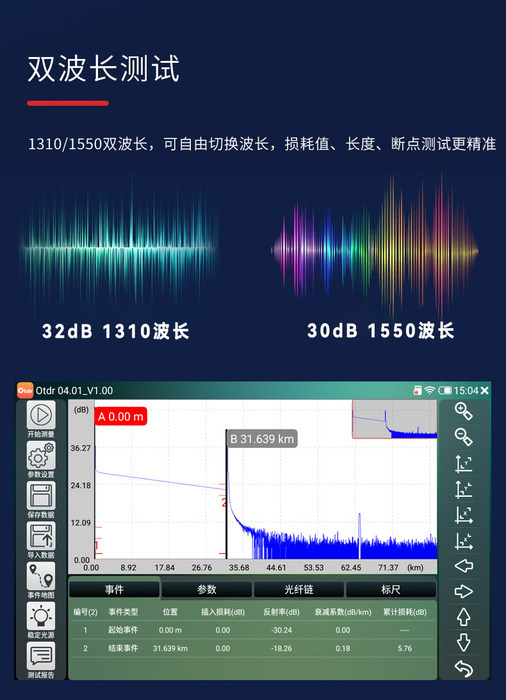

• Support 1310nm/1550nm dual wavelength free switching, 32dB/30dB dual dynamic range, which can accurately measure fiber length, attenuation, fusion point loss, and junction loss. Even if the fiber breaks, the breakpoint position can be quickly located;

• Real time generation of visual test curves, automatic annotation of key parameters such as event location, insertion loss, reflectivity, attenuation coefficient, etc., making line faults clear at a glance;

• Support one click generation of test reports, which can be exported through multiple channels such as USB flash drives, portable hard drives, TF cards, and networks, meeting the professional needs of engineering acceptance and operation and maintenance archiving.

6. Intelligent auxiliary functions

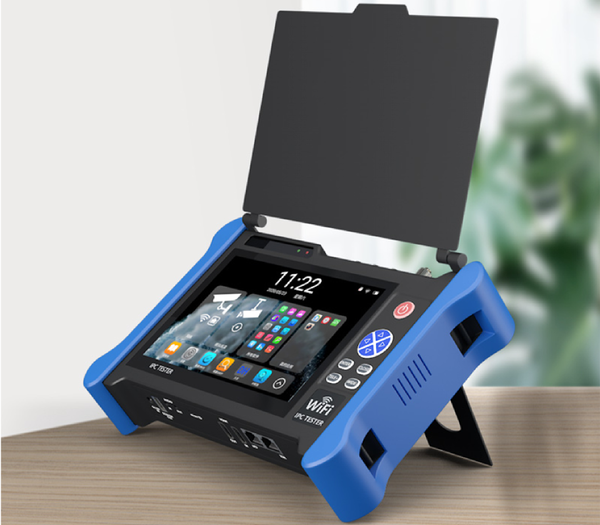

Yian Engineering Treasure is equipped with a 1920 × 1200 full view IPS display screen, supporting one screen dual display, screen projection, etc. It has built-in wireless WIFI for testing wireless network cameras and practical functions such as multimeters to meet the diverse needs of on-site construction.

The product series covers different engineering scenarios

The IPC9300, IPC9600S, IPC X and other series of products launched by YEERAM Electronics are optimized for different engineering scenarios. For example, the IPC X full function version realizes high-end functions such as HDMI high_definition input and output, antiinterference digital line finding, and one click generation of test reports, meeting the professional needs of large-scale security projects.

Development Trends and Industry Value

In the context of the development of high-definition, networked, and intelligent security industry, the importance of monitoring and testing equipment engineering treasure is becoming increasingly prominent. Represented by Yian Electronics, domestic manufacturers continuously promote the upgrading of Engineering Treasure functions through independent innovation, making this "handheld toolbox" more suitable for on-site construction needs. In the future, with the integration of AI detection, remote operation and maintenance technologies, Engineering Treasure will further break through functional boundaries and become an important support for the intelligent upgrade of security engineering.

在安防监控工程的安装、调试与维护现场，监控测试仪工程宝已成为安防工程师不可或缺的核心工具。它将摄像机图像检测、PTZ云台控制、网络线测试、音频测试、光纤检测、数字万用表等十余种功能集于一体，实现“一机在手，全程搞定”的施工体验，彻底改变了传统调试效率低、操作繁琐的痛点，被誉为安防工程师的“掌上工具箱”。广州仪安电子有限公司作为国内视频监控测试仪领域的实力厂商，其工程宝产品凭借创新技术与全功能配置，正大力推动安防工程测试工具向智能化、高效化升级。

工程宝的核心功能涵盖六大类，满足安防工程全场景需求，主要包括：

1. 高清摄像机全类型测试
支持网络摄像机、模拟摄像机、同轴高清摄像机等全品类测试。仪安电子工程宝可实现6K H265 IPC主码流测试、1200W像素高清解码，兼容主流编码格式，集成海康、大华、宇视等八十多个品牌私有协议，支持批量激活、批量修改IP地址与设备参数，并可16路摄像机同时预览。其IP全网段极速探测技术，能快速搜寻未知摄像头IP。

2. 全维度线路检测
可完成网线、光纤、视频线的全参数检测，包括网线线序通断、TDR断点长度测试（最远1.2km）、网线衰减/反射率/阻抗检测，以及光纤光功率测量、10mW可见红光源故障定位，精准定位线路断点，解决传统线路排查耗时费力的痛点。

3. 多规格供电与供电检测
配备12V/3A、5V/3A、24V/1A多规格直流供电输出，以及符合IEEE 802.3af标准的48V PoE供电，满足摄像机、球机等不同设备的临时供电需求。同时支持供电功率、电压、线序的实时检测，快速判断设备故障或供电问题。

4. 云台与控制调试
支持云台上下左右转动、镜头变焦/聚焦/光圈调节、预置位设置与调用、球机参数编辑。独特的RS485地址扫描功能，无需拆卸设备即可快速查找快球地址。仪安工程宝还实现手势滑动控制云台，操作更人性化。

5. 光纤测试

• 支持 1310nm/1550nm 双波长自由切换，32dB/30dB 双动态范围，可精准测量光纤长度、衰减、熔接点损耗、转接处损耗，即使光纤断裂也能快速定位断点位置；

• 实时生成可视化测试曲线，自动标注事件位置、插入损耗、反射率、衰减系数等关键参数，让线路故障一目了然；

• 支持测试报告一键生成，可通过 U 盘、移动硬盘、TF 卡、网络多渠道导出，满足工程验收、运维存档的专业需求。

6. 智能化辅助功能
仪安工程宝配备1920×1200全视角IPS显示屏，支持一屏双显、屏幕投影等，内置无线WIFI可测试无线网络摄像机，同时配备万用表等实用功能，满足现场施工的多样化需求。

产品系列覆盖不同工程场景

仪安电子推出的IPC9300、IPC9600S、IPC X等系列产品，分别针对不同工程场景实现功能优化，比如IPC X全功能版：实现HDMI高清输入输出、抗干扰数字寻线、测试报告一键生成等上述的高端功能，满足大型安防工程的专业需求。

发展趋势与行业价值

在安防行业向高清化、网络化、智能化发展的背景下，监控测试仪工程宝的重要性愈发凸显。以仪安电子为代表的国内厂商，凭借自主创新不断推动工程宝功能升级，让这一“掌上工具箱”更贴合现场施工需求。未来，随着AI检测、远程运维等技术的融入，工程宝将进一步突破功能边界，成为安防工程智能化升级的重要支撑。
